Section 9: Flue System and Air SupplyPage 28
Brick
chimney
Flaunching
Locking band
Rigid to flexible flue
connector (bottom)
This
component
must be installed
vertically
Note:
Extension
Boiler flue
connector
Boiler
Flexible stainless
steel liner
The flue liner
is directional
(see Section 9.2)
Note:
Terminal
Adjustable section 235/300mm
WXA250/100
WXA250/125
100mm dia.
125mm dia.
Locking band
C
45 elbow
O
Top plate
Clamp

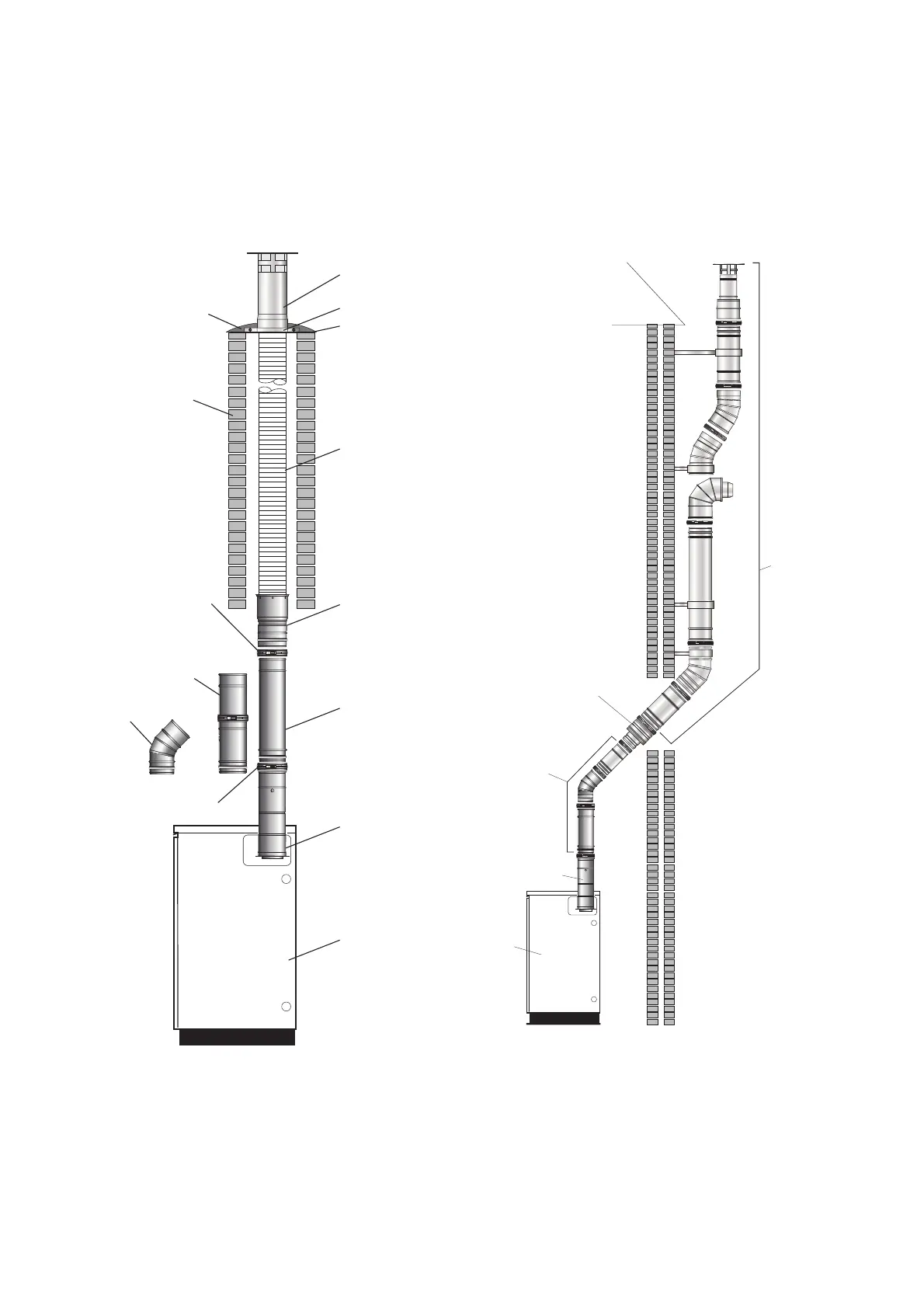

Figure 9-3: Grant Orange fl ue system in a typical brick chimney
Green System
components
(refer to Table 9-5)
Orange System
components
(refer to Tables
9-2 and 9-3)
Boiler flue
connector
(from CFA 15/70 kit)
Adaptor
(from CFA 15/70 kit)
Boiler
Figure 9-4: Hybrid fl ue system using Grant Orange and Green
systems components
