Grant Vortex - Riello RDB 3.2 Burners (46;70 Models)

Section 13: Spare PartsPage 54

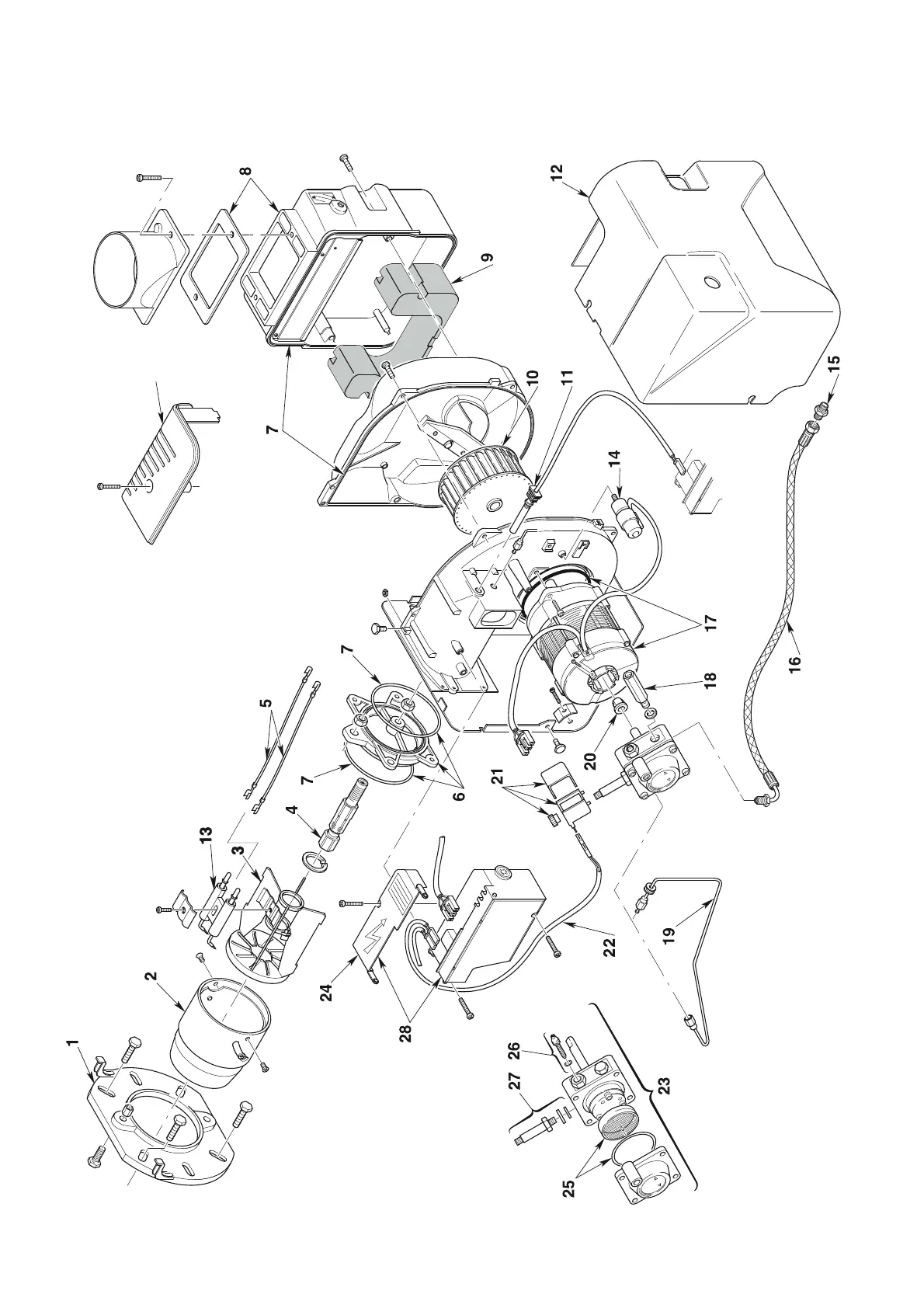

Figure 13-2: Riello RDB 3.2 burner exploded diagram - 46/58 and 58/70kW models
13.3 RIELLO RDB 3.2 BURNERS (46/70 MODELS)
This section gives exploded views of the Riello burners in the Grant Boiler House boilers, and parts lists associated with them.
29
