Section 9: Flue System and Air SupplyPage 32
Vertical terminal kit
GTV90 (15 - 26 kW)
GTV200 (26 - 70 kW)
45 elbow kit
GE45/90 (15 - 26 kW)
GE45/200 (26 - 70 kW)
O
Starter kit
GK90 (15 - 26 kW)
GK200 (26 - 70 kW)
GK90S - short (15 - 26 kW)
GK200S - short (26 - 70 kW)
High level terminal kit
GTH90 (15 - 26 kW)
GTH200(26-70kW)
Extension kits
Wall bracket
Extended wall bracket
Locking band
Air
intake
DO NOT
OBSTRUCT
Components and Part Numbers
Typical
ue system

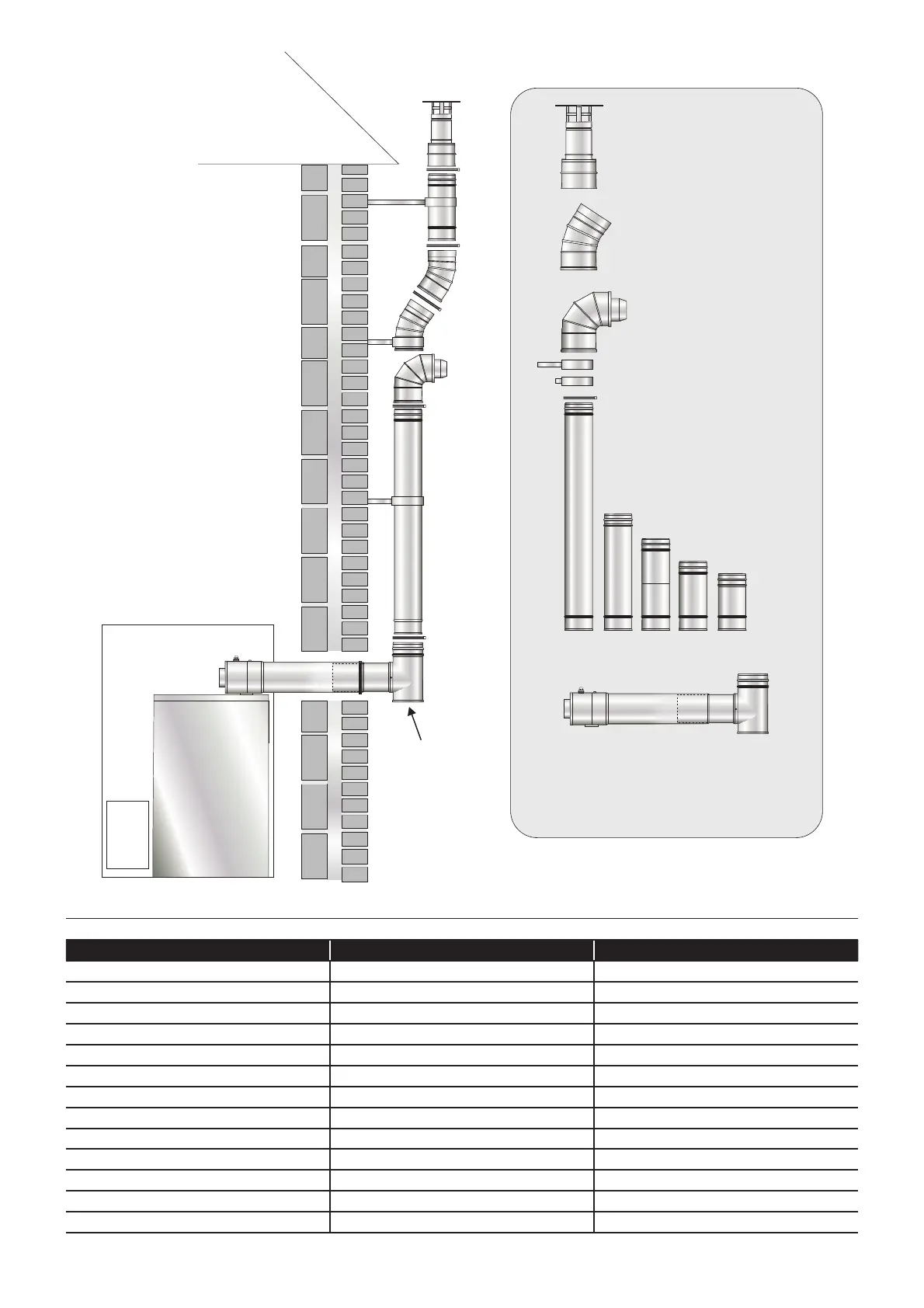

Figure 9-10: External balanced fl ue (green system)
Table 9-5: Green system components - product codes
Item 15kW - 26kW models 26kW - 70kW models
Standard starter kit (stainless steel) GK90 GK200
Short starter kit (stainless steel) GK90S GK200S
150 mm extension GX150/90 GX150/200
250 mm extension GX250/90 GX250/200
450 mm extension GX450/90 GX450/200
950 mm extension GX950/90 GX950/200
195 - 270 mm adjustable extension GXA250/90 GXA250/200
45° elbow GE45/90 GE45/200
Straight terminal GTL90 GTL200
High level 90° terminal GTH90 GTH200
Vertical terminal GTV90 GTV200
Wall bracket - standard GWB90 GWB200
Wall bracket - extended GEB90 GEB200
