10. If the back bearing is to be replaced. Undo the brass nut and
replace the bearing and mount it with a new o-ring. Mount the
o-ring dry, no grease.

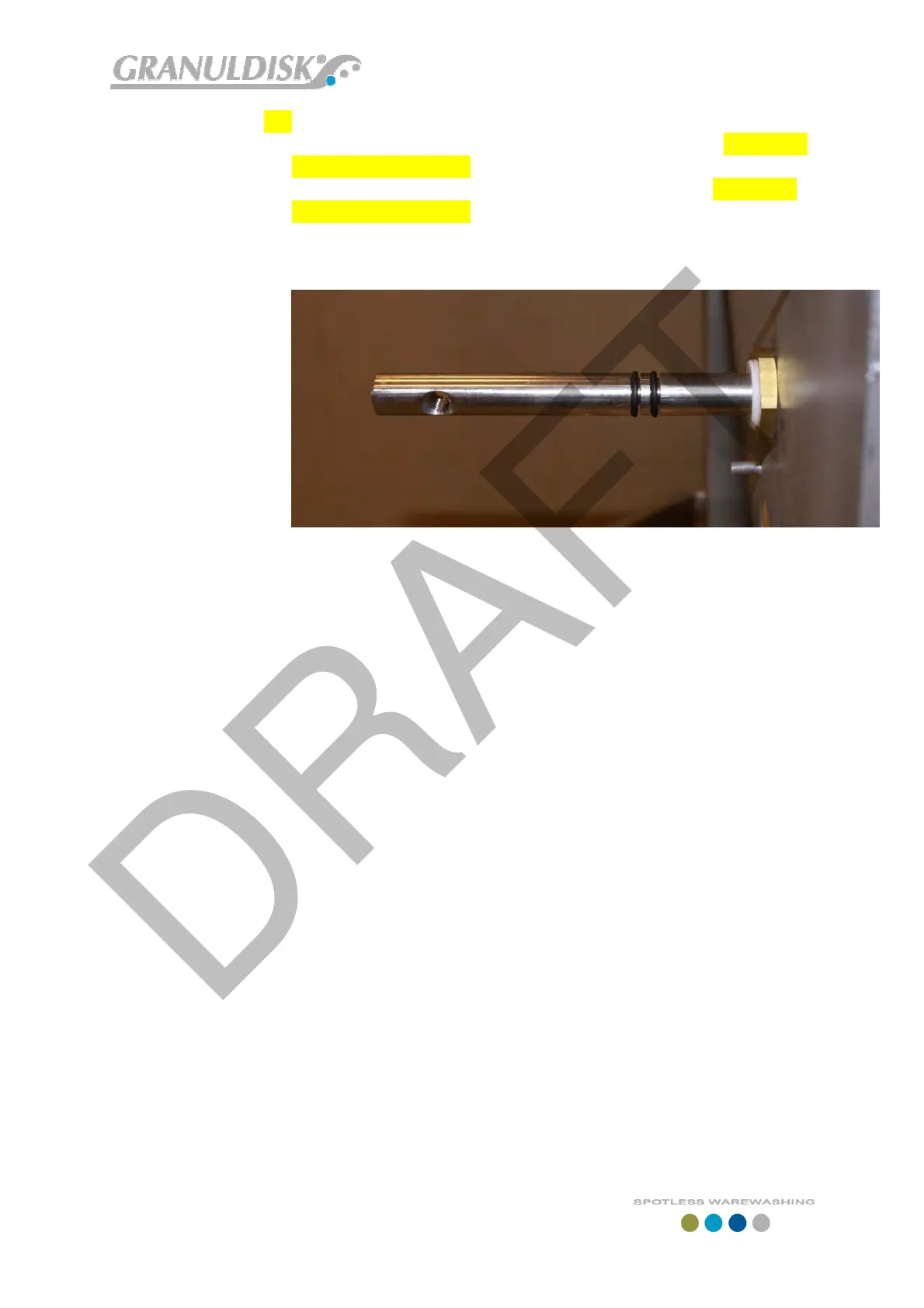

11. Put the front bearing on the shaft with the o-ring. Mount the
o-ring dry, no grease. Put the shaft through the front hole in
the wash tank.
12. Fasten the bearing with the brass nut. Do not over tighten.
13. Push the shaft forward and replace the o-rings.
Lubricate with suitable grease.
14. Pull back the shaft and mount the damper.
15. Mount the actuator on the lower attachment with screw and
nut. Only tighten until the screw is through the locking plastic.
16. Remount the arm on the shaft.
17. Remount the screw on the damper shaft.
18. Fold up the linear motor and fasten it to the arm again with
nut and screw. Only tighten until the screw is through the
locking plastic.
