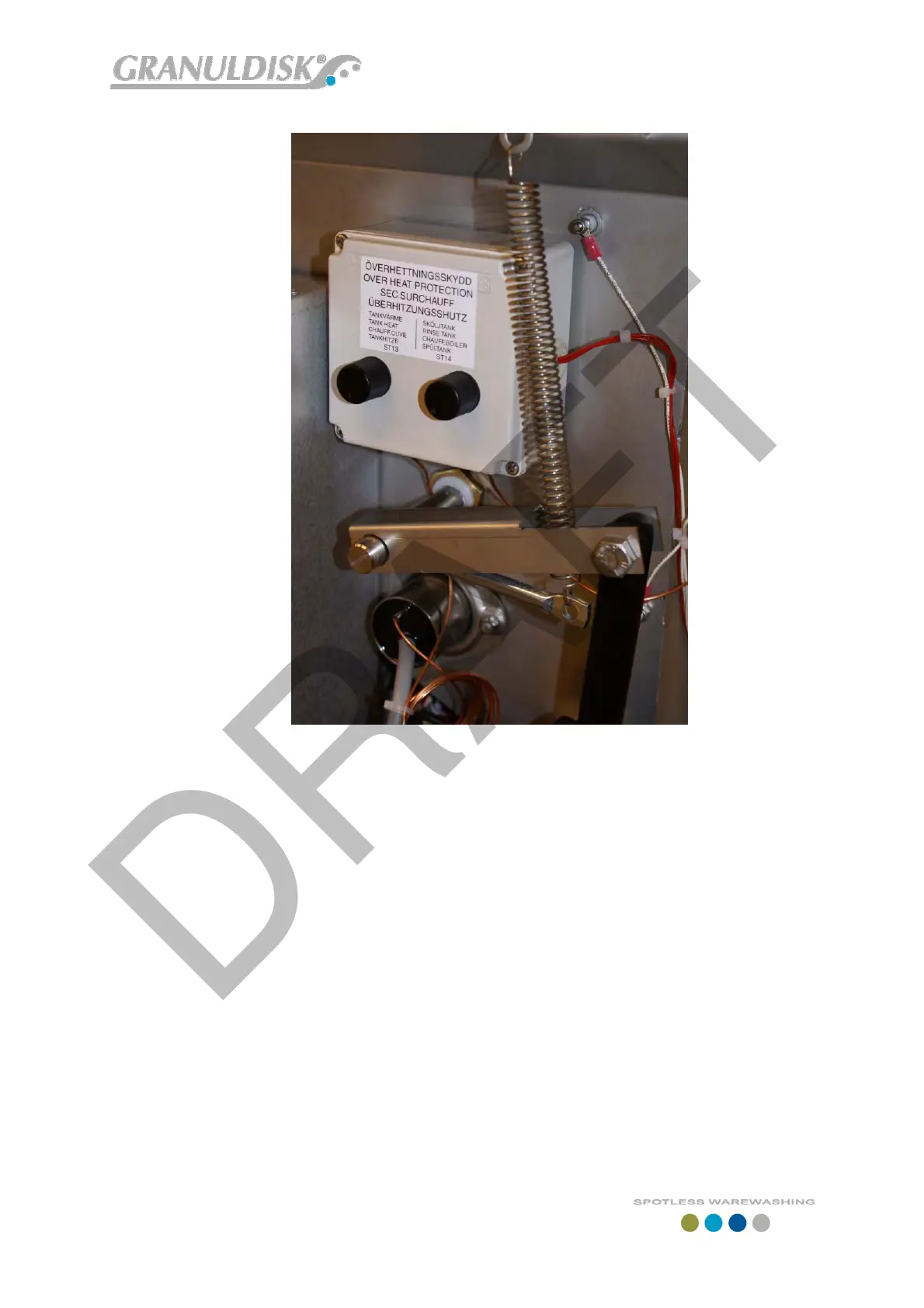

19. Hook up the spring again.
20. Remount the cover plates and refit the tank grids.
h. Exchange of basket drive.
1. Open the hood and secure it with the safety pin.
2. Turn off the electrical supply.
3. Undo the left side plate.
4. Disconnect the magnetic sensor.
5. Disconnect the motor electrically.
6. Rotate the wash basket wheel anti clock wise until the shaft is
totally free from the coupling.
7. Undo the motor retainer screws.
8. Take out the motor.
9. Undo the magnetic sensor from the motor.
10. Undo the clamp screws on the coupling.
11. Make sure the shaft on motor/gearbox is clean (dry surface).
Mount the coupling on the new motor. Lubricate the screws
with some anti seize paste or similar. Tighten the screws to 9
Nm.
