15
MODE 3 Cover Hinge
This is a mode specifically for book cover making. The following is an explanation of the setup and function
of this mode, in which you can input 2 parameters. SPINE and THK.
SPINE means the first spine line to the leading edge.
THK means the thickness of the book, namely the spine width.

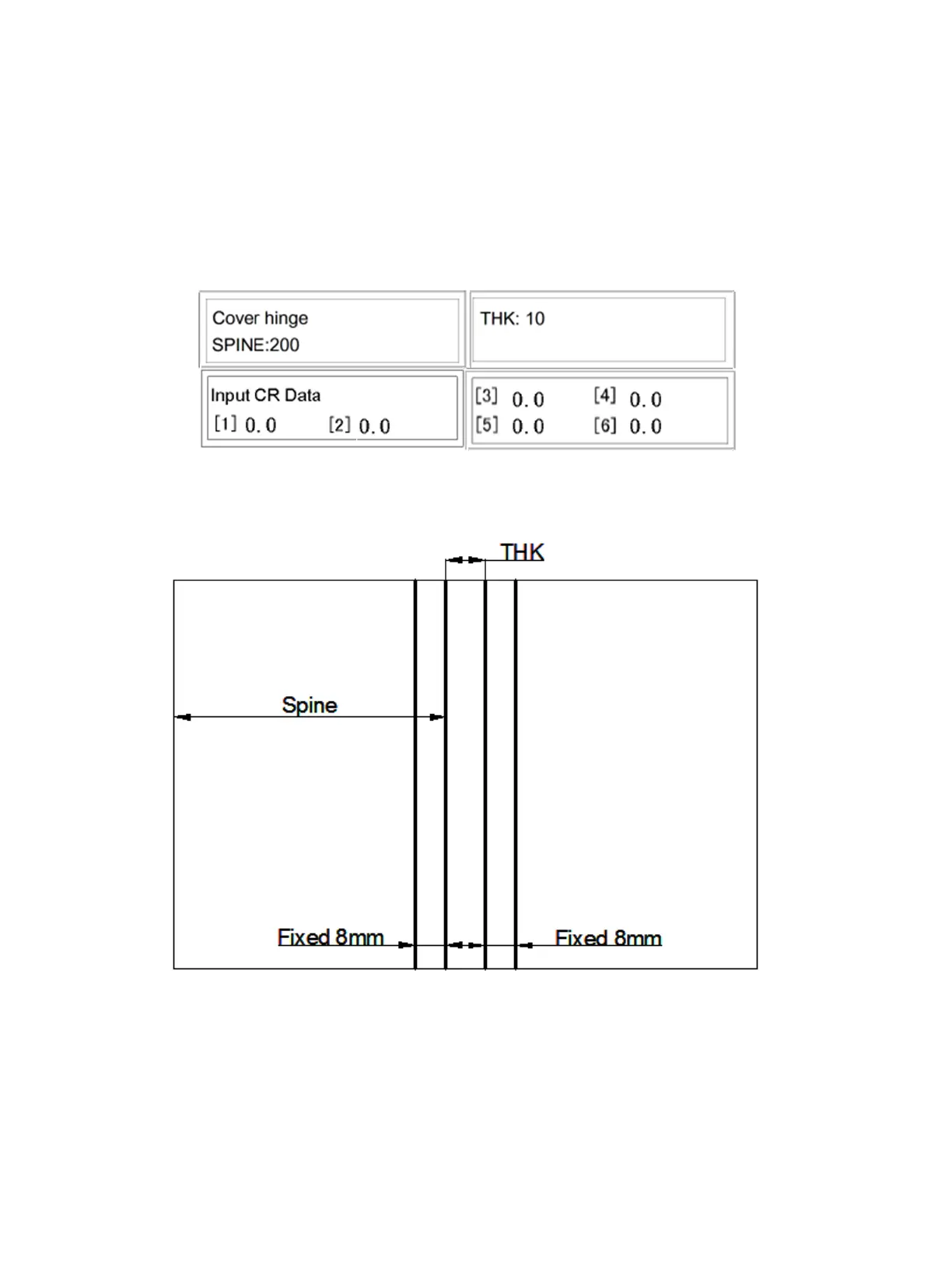

The following drawing illustrates 2 parameters leading to 4 lines. The other 2 is 8mm outside of 2 spine lines
as hinge lines.
