7 DISASSEMBLY AND REASSEMBLY

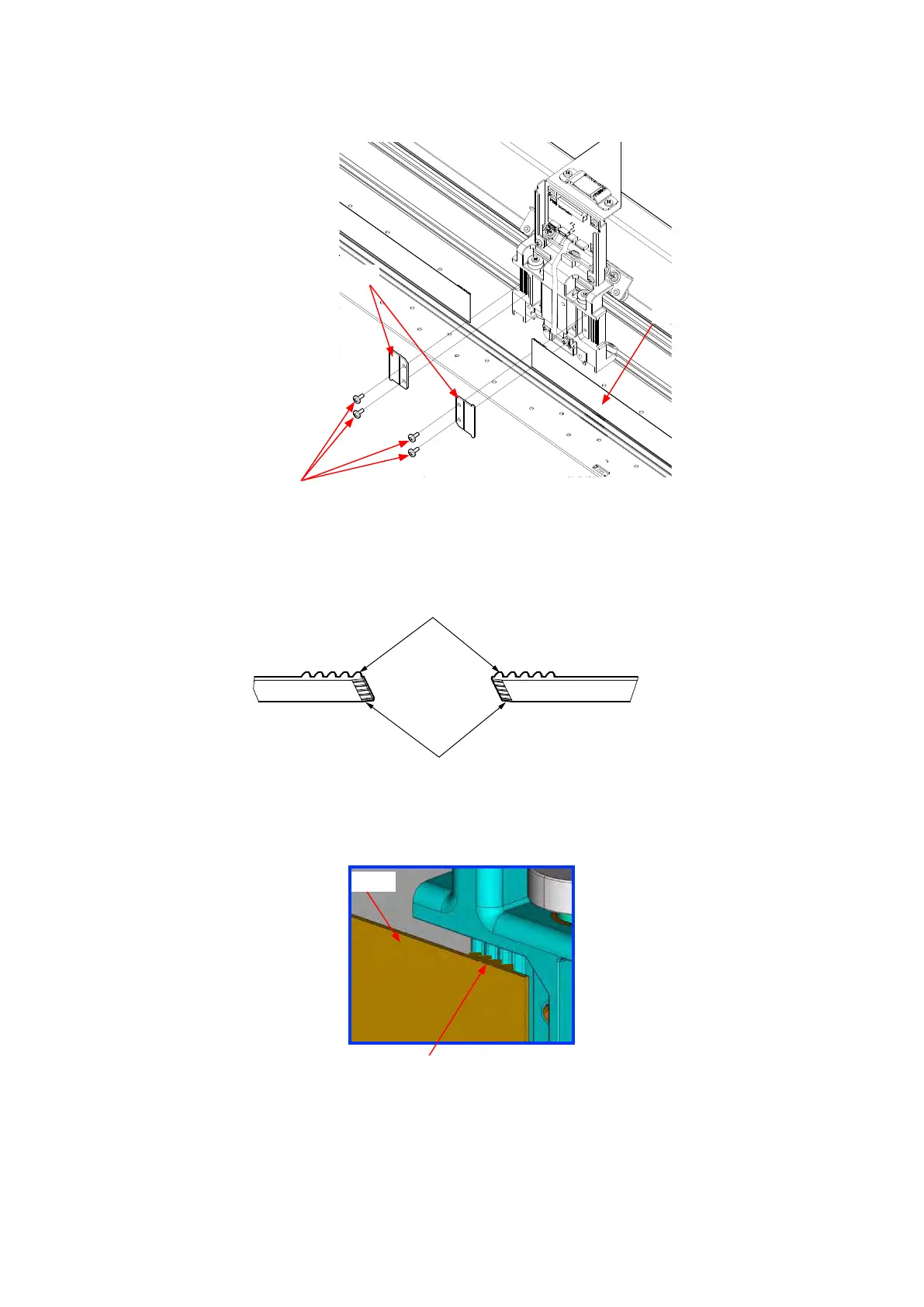

(8) Remove the four M3L6 binding head screws attaching the right and left Y-belt stopper plates to the
slider.
M3L6 binding head screw
Y belt
Stopper
(9) Detach the Y-belt from the unit.
How to reinstall the Y-belt
(1) Shave 2 to 3 mm off both ends of the Y-belt until the wire comes out as shown below.
Y-belt
Shave 2 to 3 mm off both ends of
the Y-belt until the wire comes out.
(2) Hang the Y-belt on both sides of the pulley.
(3) When the Y-belt is installing to the Y-slider, the four notches of the Y-belt t into the Y-slider.
Four notches of the Y-belt t into
the Y-slider.
Y belt
