FC9000-UM-251-9370 7-27
7 DISASSEMBLY AND REASSEMBLY

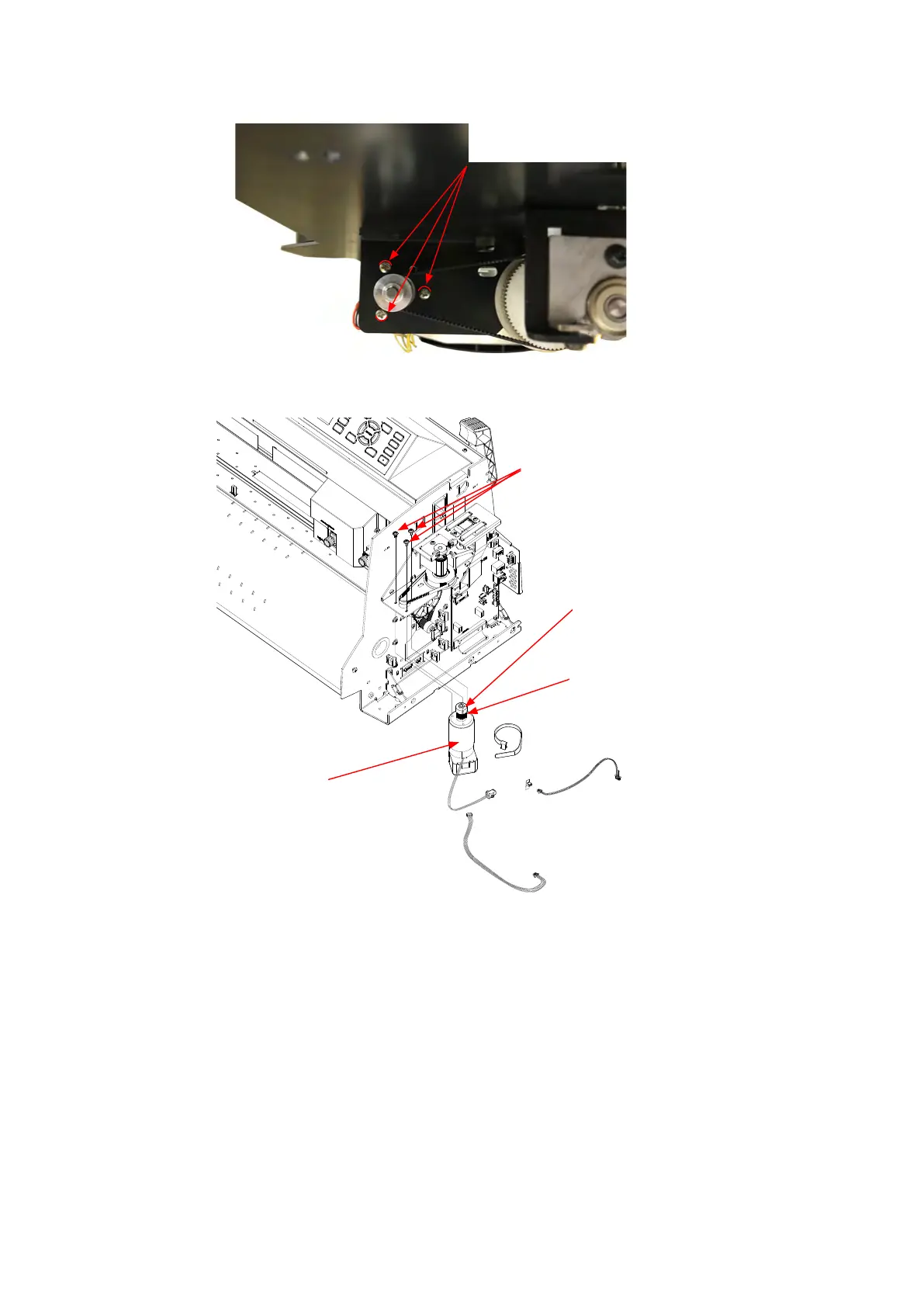

(6) Mark the position of screws which are holding the Y motor as shown in the picture below.
Mark the position of screws
which are holding the Y motor.
(7) Remove the three M3L6 binding head screws holding the Y-motor.
(8) Detach the Y-motor.
2
3
2
3
4
Y motor
M3L6 binding head screw
M3L4WP set screw
Y motor pulley
(9) Loosen the two M3L4WP set screws to detach the Y-motor pulley.
(10) Detach the Y-motor pulley.
