10
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
AC/Battery status
indicator
CH select
Digital display area
Quick settings
Alarm display area
Pen display
File name display
area
Scale lower limit
Waveform display
area
Scale upper limit
Recording bar
: Displays the following icons to indicate
the operating status of the AC power
and the battery.
Note: Use this indicator as a guideline
because remaining battery
power is an estimate. This
indicator does not guarantee the
operating time with battery.
: Displays analog, logic, pulse, and calculation.
: Displays the input values for each channel. The and keys can
be used to select the active channel (enlarged display).
The selected active channel is displayed at the very top of the
waveform display.
: Displays items that can be easily set. The and keys can be used
to activate a Quick settings item, and the and keys to change
the values.
: Displays the status of the alarm output. (Red = alarm generated,
white = alarm not generated)
: Displays the signal positions, trigger
positions, and alarm ranges for each
channel.
: Displays the recorded file name during
the recording operation.
When data is being replayed, the
display position and cursor information
are displayed here.
: Displays the lower limit of the scale of
the currently active channel.
: The input signal waveforms are displayed here.
: Displays the upper limit of the scale of the currently active channel.
: Indicates the remaining capacity of the recording medium during data
record.
When data is being replayed, the display position and cursor
information are displayed here.
Start side
Rising
trigger
Falling
trigger
Within
the range
Outside
the range
Alarm rangeTrigger position
Stop side
Pen display

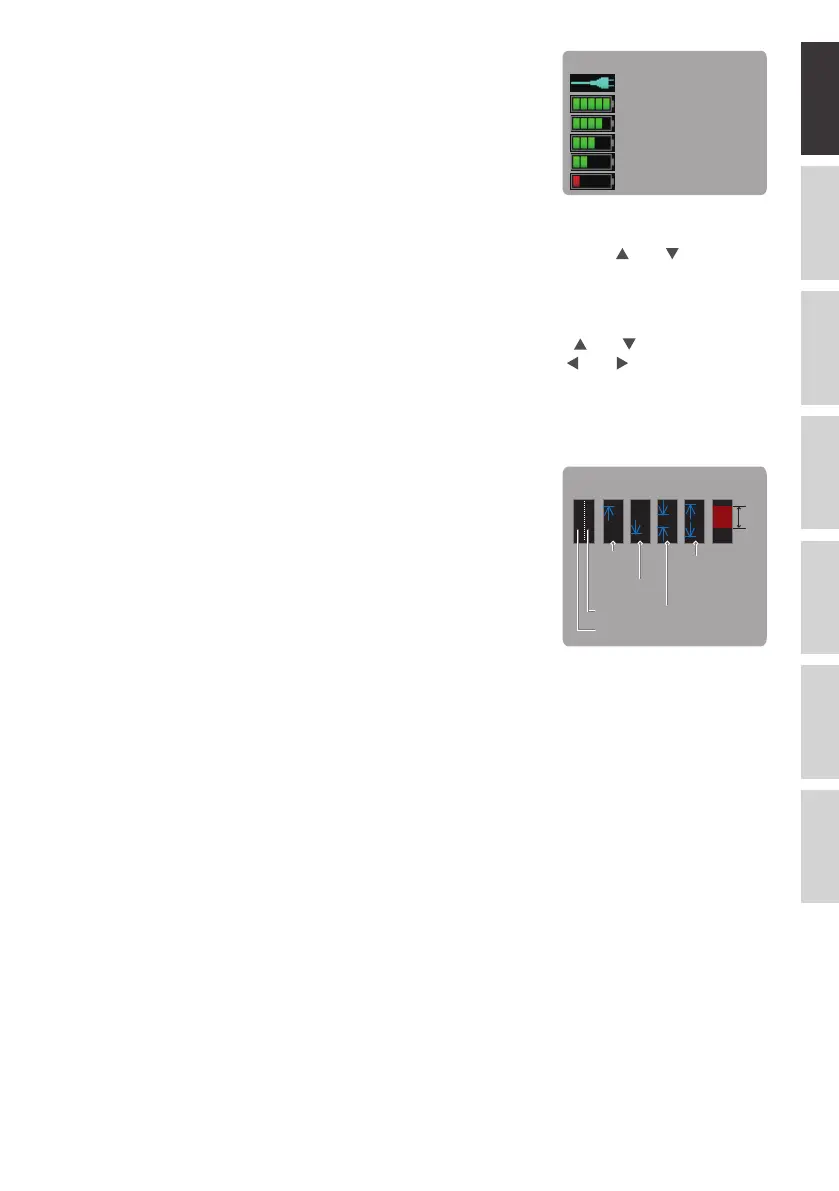

AC/Battery Indicator
When the AC power
supply is being used
Battery power: 30% or less
Battery power: 50 - 31%
Battery power: 70 - 51%
Battery power: 90 - 71%
Battery power: 100 - 91%
To Next Page
