20
IMPORTANT
Steering levers control speed and direction of
movement. Pushing the levers forward will move
the tractor forward. Pulling levers to the rear will
move tractor in reverse. The further forward or
rearward the steering levers are moved, the faster
the machine will move.
At half throttle move both steering levers from
swing-out neutral inward. Move both steering le-
vers forward. To turn right, advance left lever
further forward than right lever. To turn left, ad-
vance right lever further forward than left lever. If
you leave one steering lever in neutral and ad-
vance the other lever, the tractor will turn a
complete circle. Move the levers to the rear and
practice turning and maneuvering in reverse.
Once you learn how the controls operate, prac-
tice until you become proficient and are
comfortable with the unit before you begin opera-
tion with an attachment.
If you become confused during
operation release both steering
levers, they will automatically return
to the centered neutral position and
the tractor will stop.
37

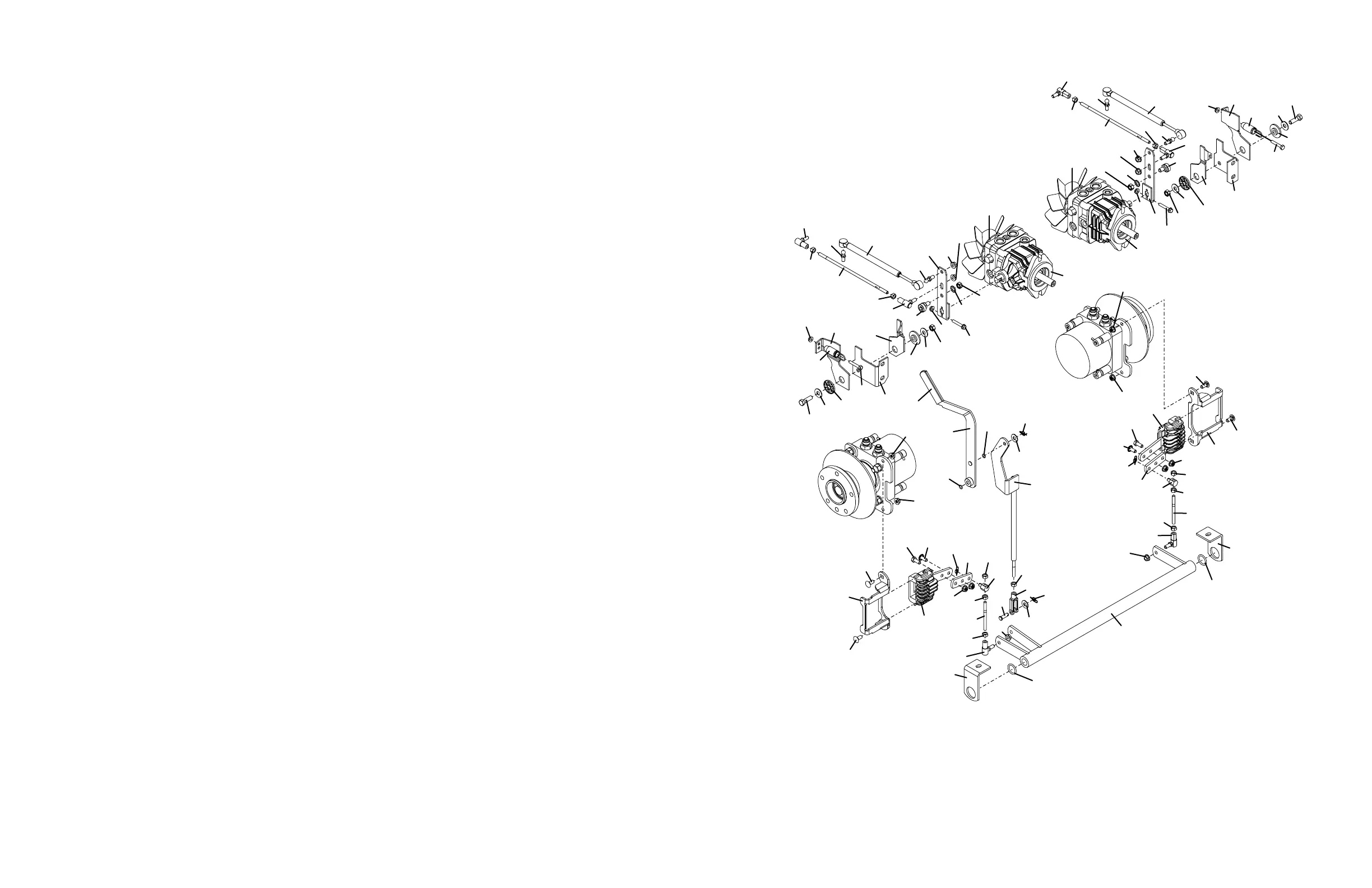

DRIVE LINKAGE ASSEMBLY
1
2
3
3
13
12
36
14
45
5
4
5
6
8
7
10
9
11
16
28
26
25
20
18
15
25
26
27
22
23
16
36
28
26
25
19
17
16
11
7
12
13
45
14
8
56
4
5
10
9
16
21
23
15
25
26
27
LEFT
SIDE
RIGHT
SIDE
41
14
14
48
40
48
46
35
32
31
32
34
39
42
10
38
10
39
26
24
44
45
14
10
37
10
9
30
47
29
47
30
45
9
10
37
43
26
39
10
38
10
14
31
32
32
33
35
46
39
42
14
14
05089
