Grasshopper 721D2 User Manual

21

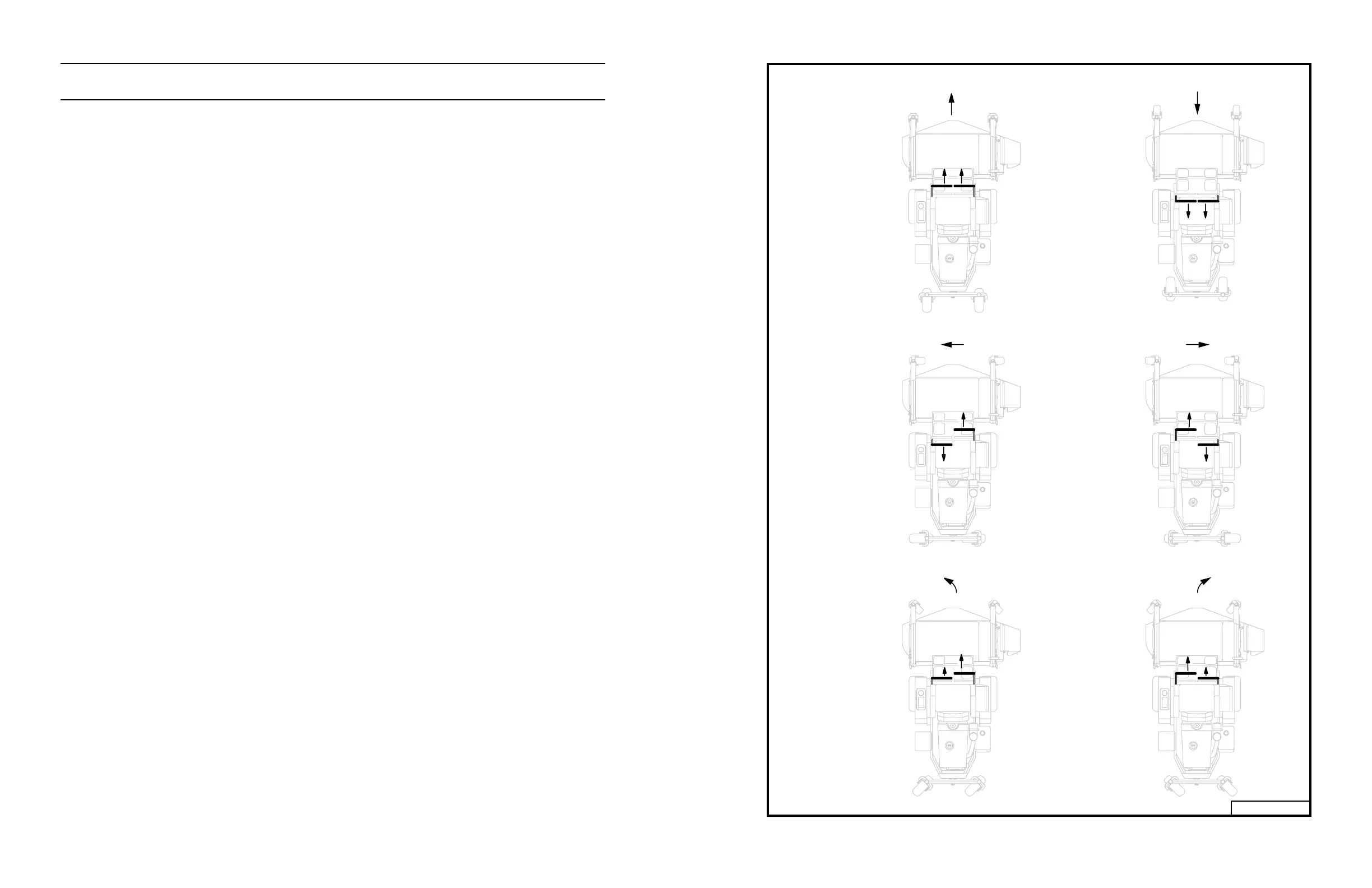

Fig. 4
93051
FORWARD
REVERSE
GENTLE
LEFT
SHARP
LEFT
SHARP
RIGHT
GENTLE
RIGHT
STEERING LEVER OPERATION
36
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
DRIVE LINKAGE ASSEMBLY
05089
1 391434 Hydro Pump Lt.
2 391435 Hydro Pump Rt.
3 725338 Control Arm - Pump
4 285031 Damper w/Ball Socket & Retainer
(includes item 5)
5 265680 Ball Stud
6 780164 Steering Linkage Pump Rod
7 265616 Ball Joint LH
8 254444 Nut LH Thread
9 265615 Ball Joint RH Thread
10 254441 Nut RH Thread
11 603726 Roller Assembly – Eccentric
(includes items 12 & 13)
12 257410 External Star Washer
13 254450 Nut
14 253035 Whiz Nut
15 243035 Bolt
16 253025 Whiz Nut
17 754120 Neutral Return Mount – Rt.
18 754121 Neutral Return Mount – Lt.
19 729138 Neutral Return Arm Rear – Rt.
20 729139 Neutral Return Arm Rear – Lt.
21 729136 Neutral Return Arm Front – Rt.
22 729137 Neutral Return Arm Front – Lt.
23 283823 Extension Spring
24 261284 Clevis Pin
25 822304 Pivot Bearing
26 257030 Washer
27 243335 Bolt
28 253890 Lock Nut
29 644539 Brake Pivot Linkage Rod
30 732616 Mount Bracket – Brake Pivot
31 644588 Mount – Brake Caliper
32 247130 Carriage Bolt
33 481102 Caliper Brake Assembly – CW*
603150 Brake Pad Kit
34 481103 Caliper Brake Assembly – CCW*
603150 Brake Pad Kit
35 243195 Bolt
36 253182 Whiz Bolt
37 780158 Linkage Rod – Brake
38 880926 Linkage Pin – Brake
39 260606 Ring Cotter
40 644035 Brake Lever
41 422150 Handle Grip
42 782851 Brake Strap
43 644036 Brake Linkage Arm
44 265537 Clevis Yoke
45 253038 Whiz Nut
46 253190 Whiz Bolt - Truss
47 425524 O-ring
48 425486 O-ring
*To determine CW or CCW, hold the brake as-
sembly in hand with the ribs on brake facing toward
you and the lever in the disengaged position. The
direction of rotation of lever, when engaging brake,
determines CW or CCW.
