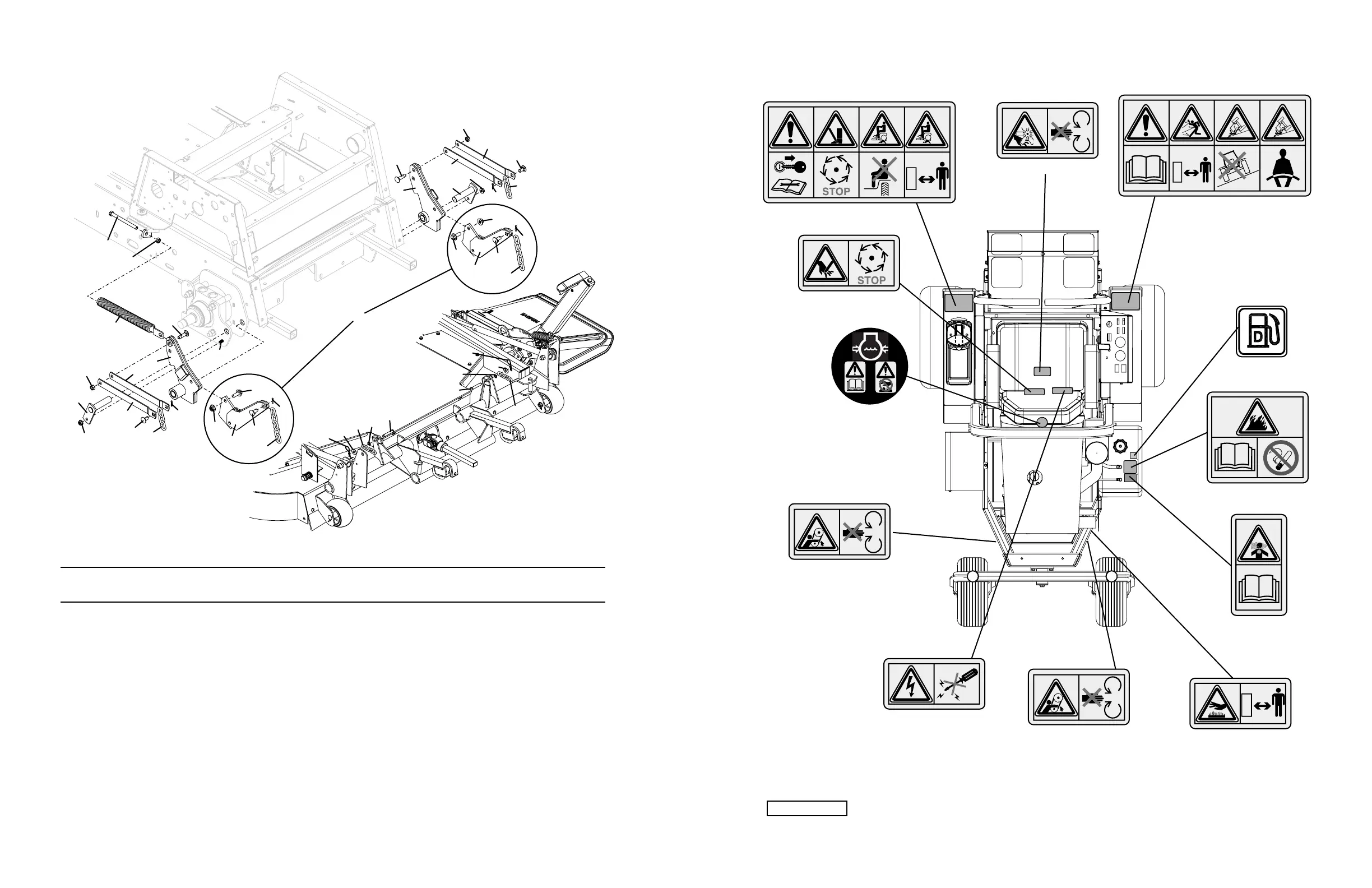

Grasshopper 721D2 User Manual

7
SAFETY DECALS
Replace Immediately If Damaged
Fig. 1
04075
Part No. 165373
Part No. 165367
Part No. 165370
Part No. 165366
Part No. 165410
Part No. 165374
Part No. 165380
Part No. 165381
165367
165370
165366
165410
165373
165374
165376
Part No. 165376
165369
Part No. 165369
165369
Part No. 165369
165380
165381
Part No. 165368
165368
TRACTION KIT
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
50
01-04061 / 01-04115
Rev. 3-07
1 603699 Rocker w/Bearing Rt.
121764 Oilite Bearing
2 603700 Rocker w/Bearing Lt.
121764 Oilite Bearing
3 644635 Pin
4 604803 Spring Assembly - Offset
5 243395 Bolt
6 254450 Nut
7 247254 Carriage Bolt - Special
8 253890 Lock Nut
9 732410 Lift Strap
10 253192 Whiz Bolt
11 820320 Lift Chain (5 links)
12 253035 Whiz Nut
13 604708 Rocker Arm Extension Kit (opt.)
(includes 2 each of items 11 & 18-22)
14 260523 Hair Pin
15 257040 Washer
16 261362 Clevis Pin
17 262950 Push-on Retainer
18 261339 Clevis Pin
19 260648 Cotter Pin
20 644706 Extension - Rocker Arm
21 253203 Whiz Bolt
22 253043 Whiz Nut
23 820317 Lift Chain (3 Links)
NOTE: Item 13 is not used with
33, 34, 96, 97 & 98 series decks;
use with all other decks and
attachments requiring traction
kit or hydraulic lift.
Not included with tractor assembly.
14
15
23
17
16
16
17
23
15
14
04061
5
6
7
4
1
9
8
9
3
12
18
23
19
10
7
8
9
9
2
12
3
18
23
22
21
20
11
18
19
21
19
22
20
18
11
13
19
04115
