9. Turn the model clockwise by more than 45 degrees to the right.
As soon as the detected axis with the sign axis number is dis-
played in "normal" representation, the axis assignation is com-
pleted.
The gyros and their directions of action are now assigned and the
line "Do setup" displays "No".
Attention
After assignation the correct function of all gyros must be checked!
To do this, move the model with the receiving system switched on
one after the other in all axes and check the control surfaces
responses. If a control surface moves in the wrong direction, repeat
the "Do setup". You must not fly the model before doing this. There
is a risk of crash!

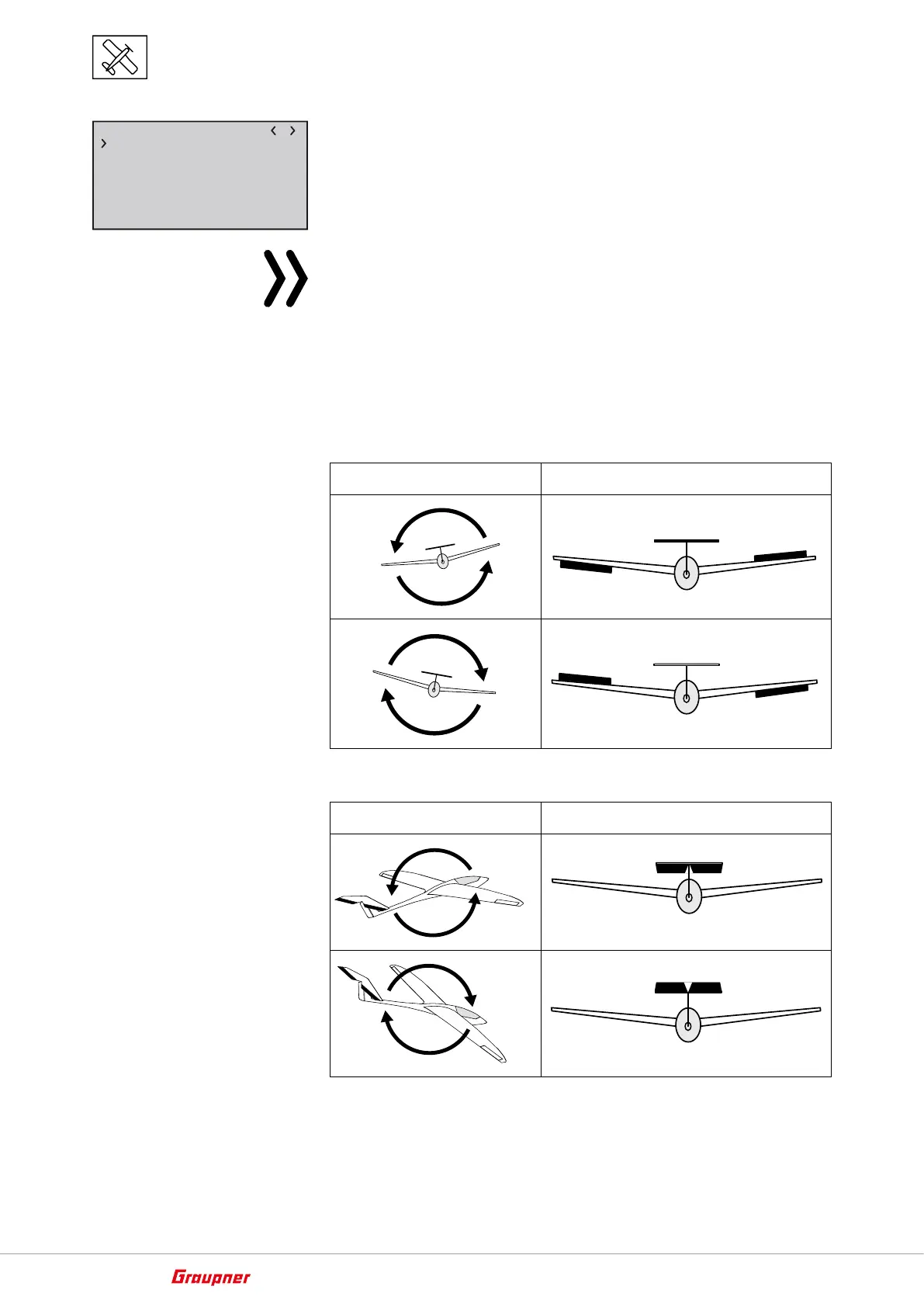

Aileron
Movement of the model Control surface action (tail view)
Elevator
Movement of the model Control surface action (tail view)
Gyro setting
Do setup NO
Aile (Right) +2
Elev (Push) +1
Aile servos 2
Rudd (Right) -3
To Next Page
