Installation
The receiver must be mounted on the receiver platform so that its
axes are aligned parallel to the model axes and that they remain per-
manent.
The optional double adhesive pads S8376 are suitable for attaching
the receiver. Also suitable are power strips or so-called mirror adhe-
sive tape. Any sticker that may be present on the back of the receiver
must be removed beforehand.
For a stable power supply the receiver should be connected with at
least two power supply lines. Comply with the maximum power con-
sumption permitted by the servos. To connect a power supply all
connections except C9 can be used.

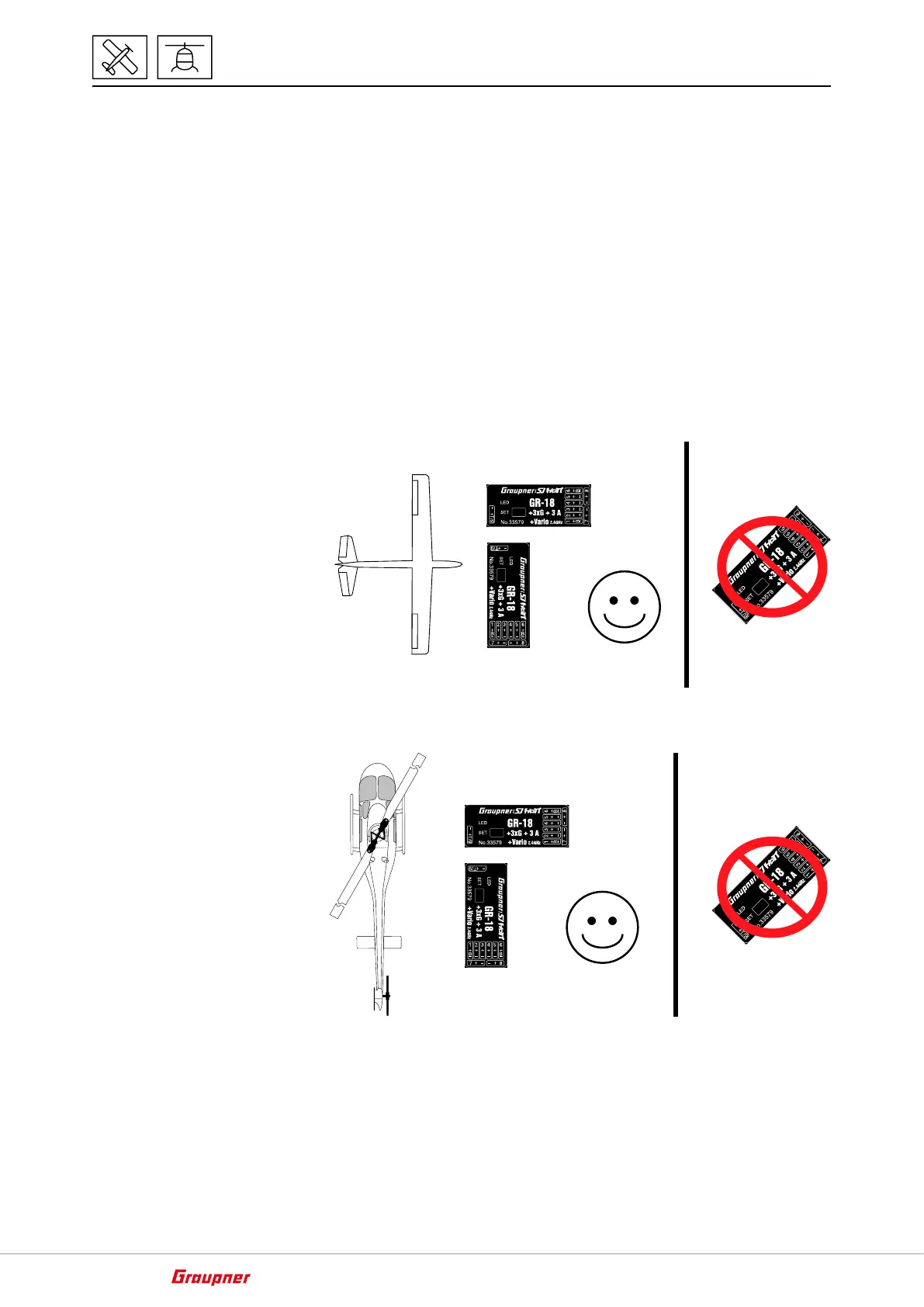

Fixed-wing model
Helicopter model
