121Program description - Control adjust | Winged models

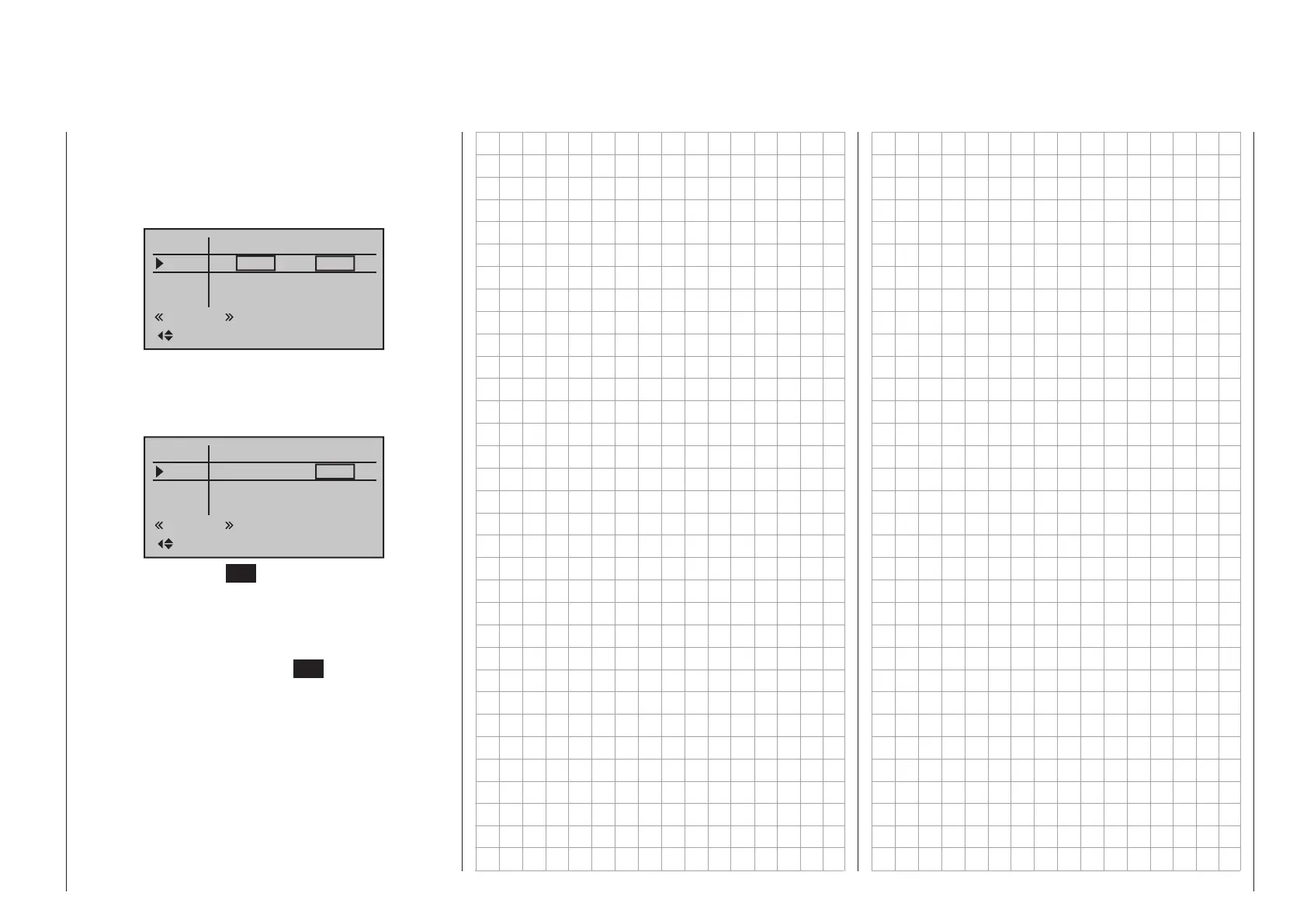

To set a symmetric, i. e. control-side independent,
time delay, the respective operating element (trans-
mitter control or switch) is to be put into a position in
which the time setting is covered on both sides by the
marker frame:
0.0s
0.0s
0.0s
0.0s
0.0s
0.0s
0.0s
0.0s
normal
– time +
In5
In6
In7
In8
To set an asymmetric time delay, move the given
transmitter control (proportional control or switch)
as necessary to the side to be set such that only the
value to be changed is covered:
0.0s
0.0s
0.0s
0.0s
0.0s
0.0s
0.0s
0.0s
normal
– time +
In5
In6
In7
In8
Briefly tap the center SET key of the right four-way
button to activate value setting. The value field will
be displayed in inverse video. Use the selection keys
of the right four-way button to change the value in a
range of 0.0 to 9.9 s.
Another brief tap on the center SET key of the right
four-way button will complete the entry.
A simultaneous tap on the or keys of the
right four-way button (CLEAR) will reset the changed
parameter displayed in inverse video back to 0.0s.
