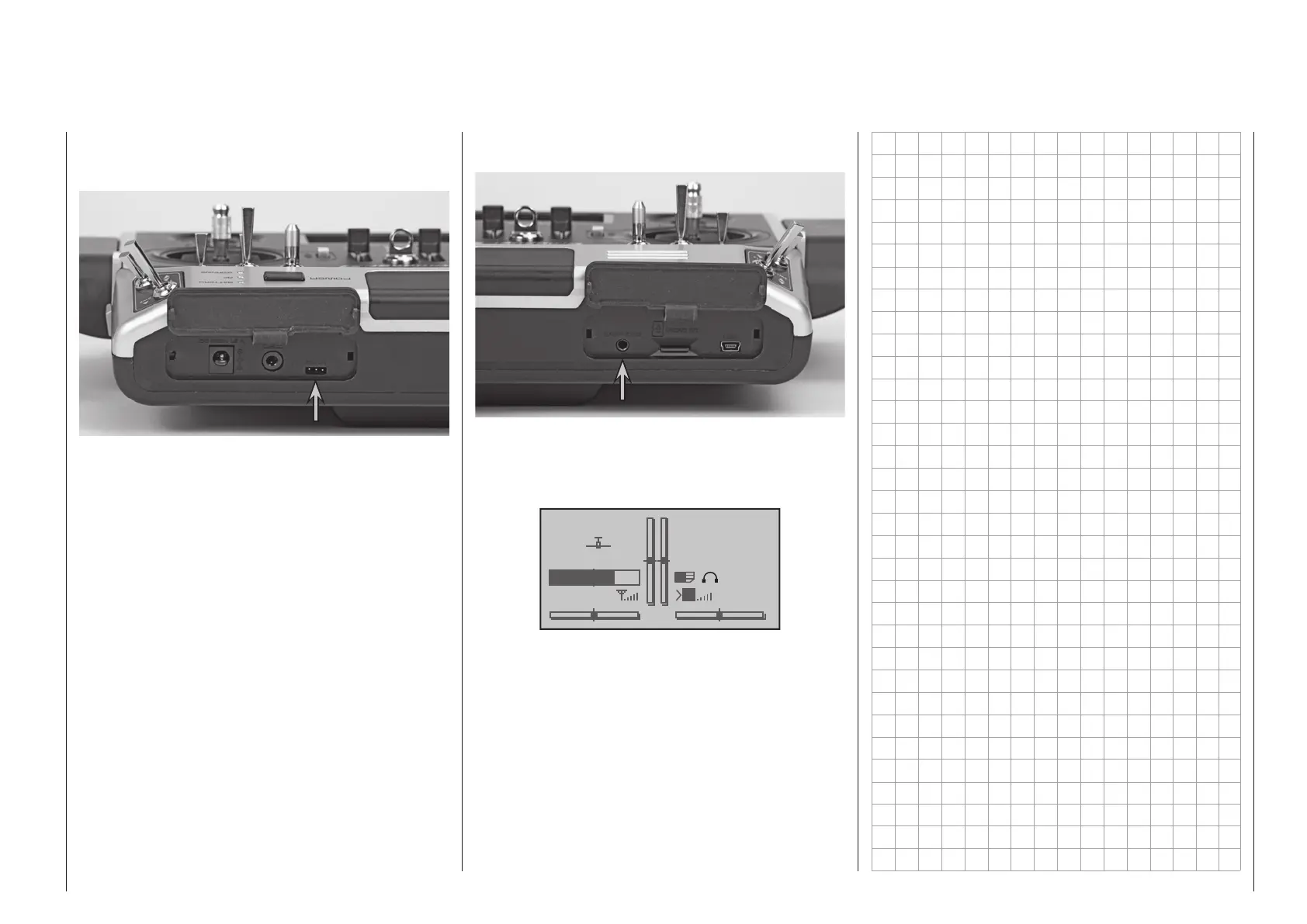

23Transmitter description - Face-side connections
The left-hand side flap provides access to the DATA
socket of the
mc-16 HoTT and mc-20 HoTT
transmitter:
This jack is intended for connection of the optional
Smart-Box, order no. 33700.
Details about the Smart-Box can be found with the
given product in the Graupner RC main catalog or in
Internet at www.graupner.de.
However, the Data socket can also be used to con-
nect external RF modules made by other manufactur-
ers; see “EXT.” and “SP.” in the “Module” section of
the “Basic model settings” menu on pages 88 and
96.
Data jack
Once the right face-side cover has been moved away,
the transmitter’s headset connector is accessible:
The jack is intended for connecting conventional ear-
plugs or a headset by way of a 3.5 mm TRS plug. (not
included in the set) An appropriate symbol will appear
in the basic display when a headset is connected:
#01
2:22h
Stp
Flt
0:00
0:00
5.5V
3.9V
M
HoTT
The transmitter’s acoustic signals as well as those
signals associated with the telemetry menu are out-
put via this connection. These announcements are
made in German language by default. More about
this can be found under “Voice output” in the sec-
tion »SECRET MODE« beginning on page 34 and
»Telemetry« beginning on page 240.
The volume of signals and voice output sent to the
headset can be adjusted individually in the lines
“Voice volume”, “Vario volume”, and “Beeps volume”
of the »General basic settings« menu, page 268.
Headset connector
