Gravely 08499200B - Powerplant; Range;Differential Lock Control - 4 Speed

15

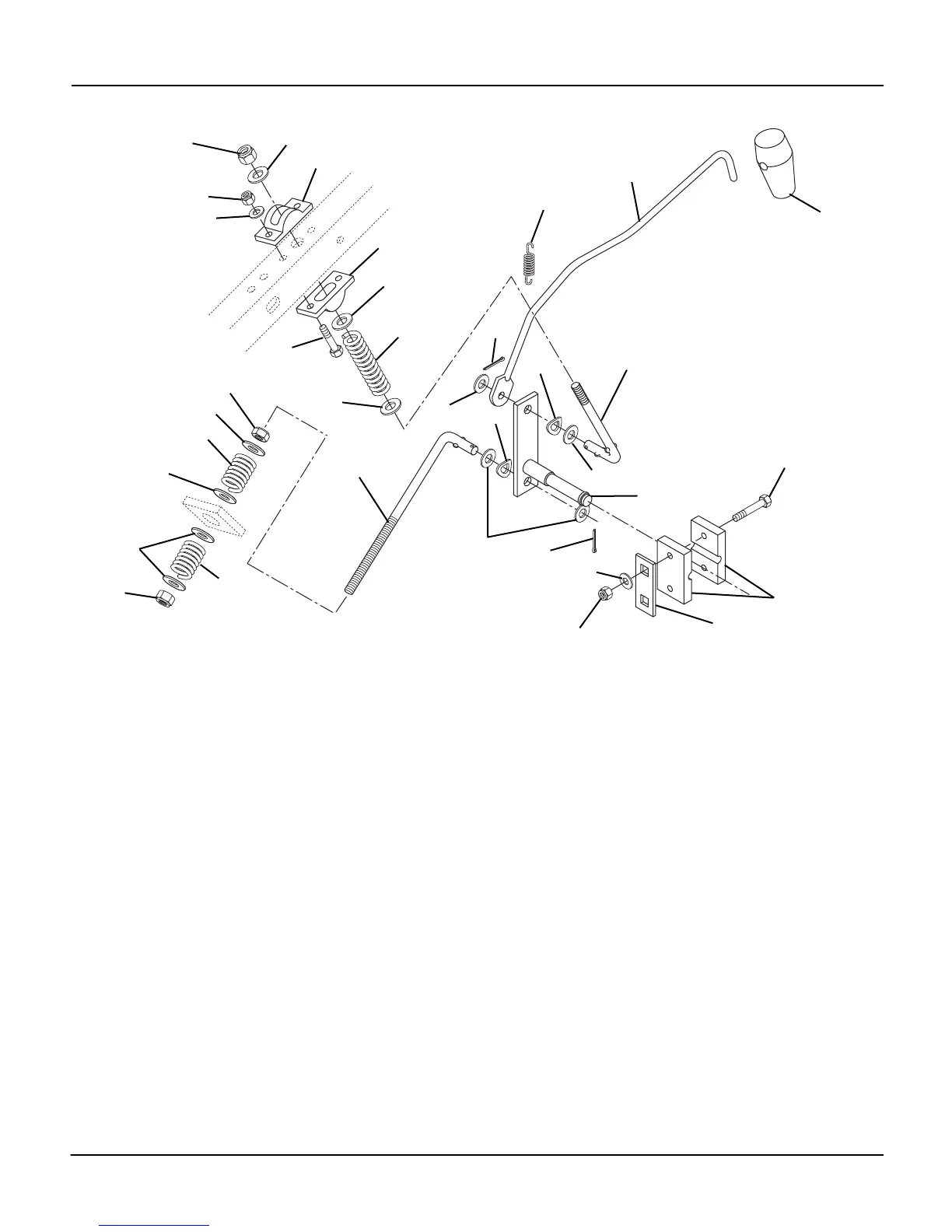

RANGE/DIFFERENTIAL LOCK CONTROL - 4 SPEED
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
1 06529600 3 Nut-Locking-Center .375-16 Grade 2
2 06436200 11 Washer-Flat-Steel .406 x .812 x .065
3 06529700 4 Nut-Locking-Center .250-20 Grade 2
4 06437300 4 Washer-Flat-Steel .281 x .620 x .065
5 040637 2 Cam-Shifter
6 05947700 22 Bolt-Hex .25-20 x 1.00 Grade 5
7 040599 1 Spring-Compression .081 x .720 x 2.75
8 041042 1 Spring-Tension .041 x 1.25 x .50
9 046798 1 Rod-Shifter
10 010683 1 Handle-Rubber Shifter
11 177923 2 Pin-Cotter .12 x .75
12 039078 2 Spring Washer
13 046784 1 Link-Shifter Stop
14 040632 1 Weldment-Shifter Crank
15 040648 1 Link-Shifter
16 011779 2 Spring-Compression .125 x .78 x 1.00
17 032353 2 Block-Shift Lever
18 05952500 2 Bolt-Hex .25-20 x 1.50 Grade 5
19 021462 1 Shim-Mower Height Adjuster Bracket
