Gravely 08499200B - Operatorcontrols; Gear Shift Control

9
G
EAR
S
HIFT
C
ONTROL
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313

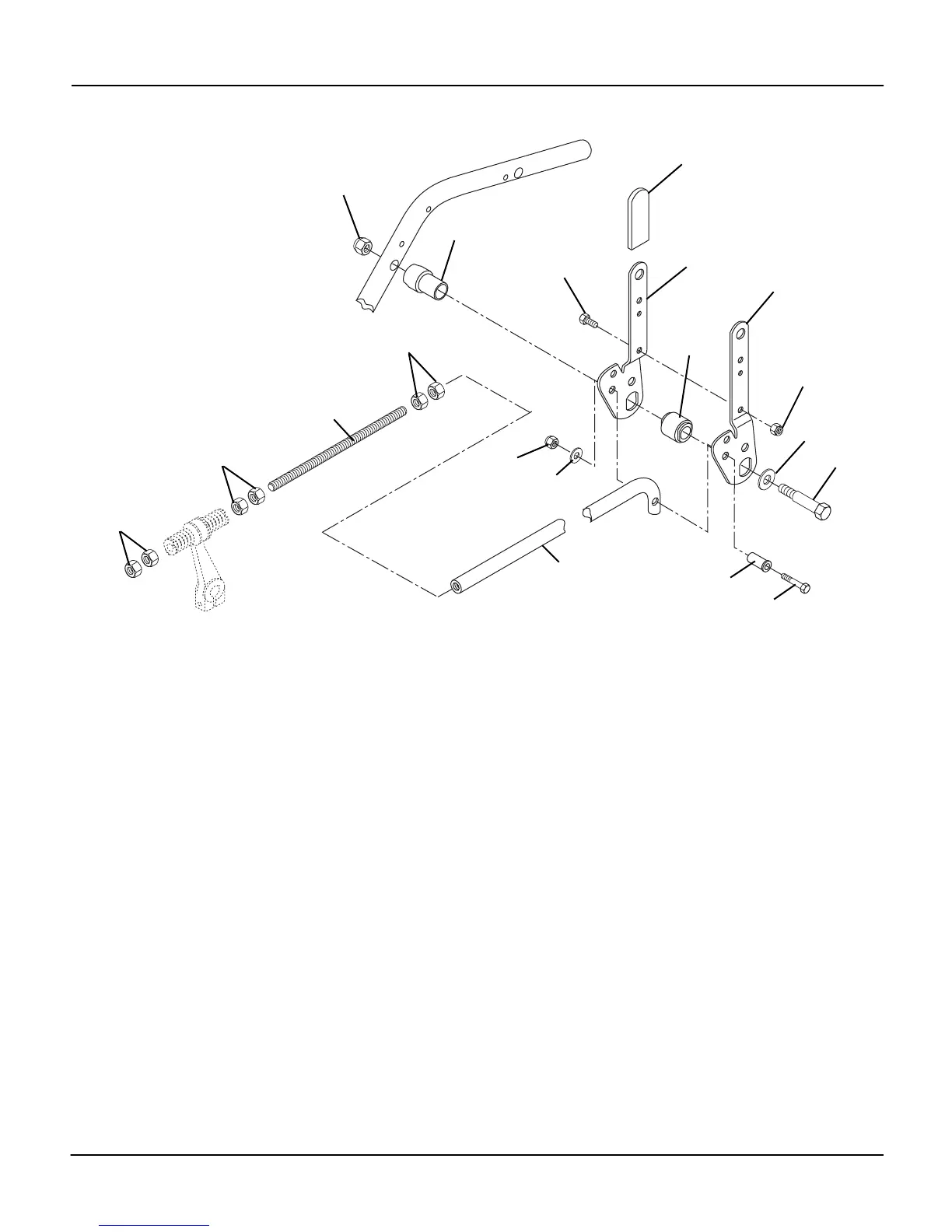

Item Part No. Qty. Description
1 06529600 1 Nut-Locking-Center .38-16
2 06535900 4 Nut-Jam .38-16
3 041614 1 Pivot-Hand Lever Left Hand
4 044139 1 Grip-Handle
5 041616 1 Handle-Control Right Hand
6 041615 1 Handle-Control Left Hand
7 106319 1 Bolt-Hex .25-20 x .62
8 06529700 2 Nut-Locking-Center .250-20 Grade 2
9 041594 1 Bushing Flange .751 x 1.13 x 1.07
10 06441900 1 Washer-Flat-Steel .531 x 1.062 x .095
11 047566 1 Bolt-Hex .38-16 x 3.75
12 041244 1 Bushing-Flange .257 x .38 x 1.080
13 05952500 1 Bolt-Hex .25-20 x 1.50 Grade 5
14 06437300 1 Washer-Flat-Steel .281 x .620 x .065
15 045575 1 Rod-Control Hi-Lo
16 06529400 2 Nut-Hex .375-16 Grade 2
17 045577 1 Rod-Extension
