Gravely 08499200B - Ignition Switch; Hour Meter

33

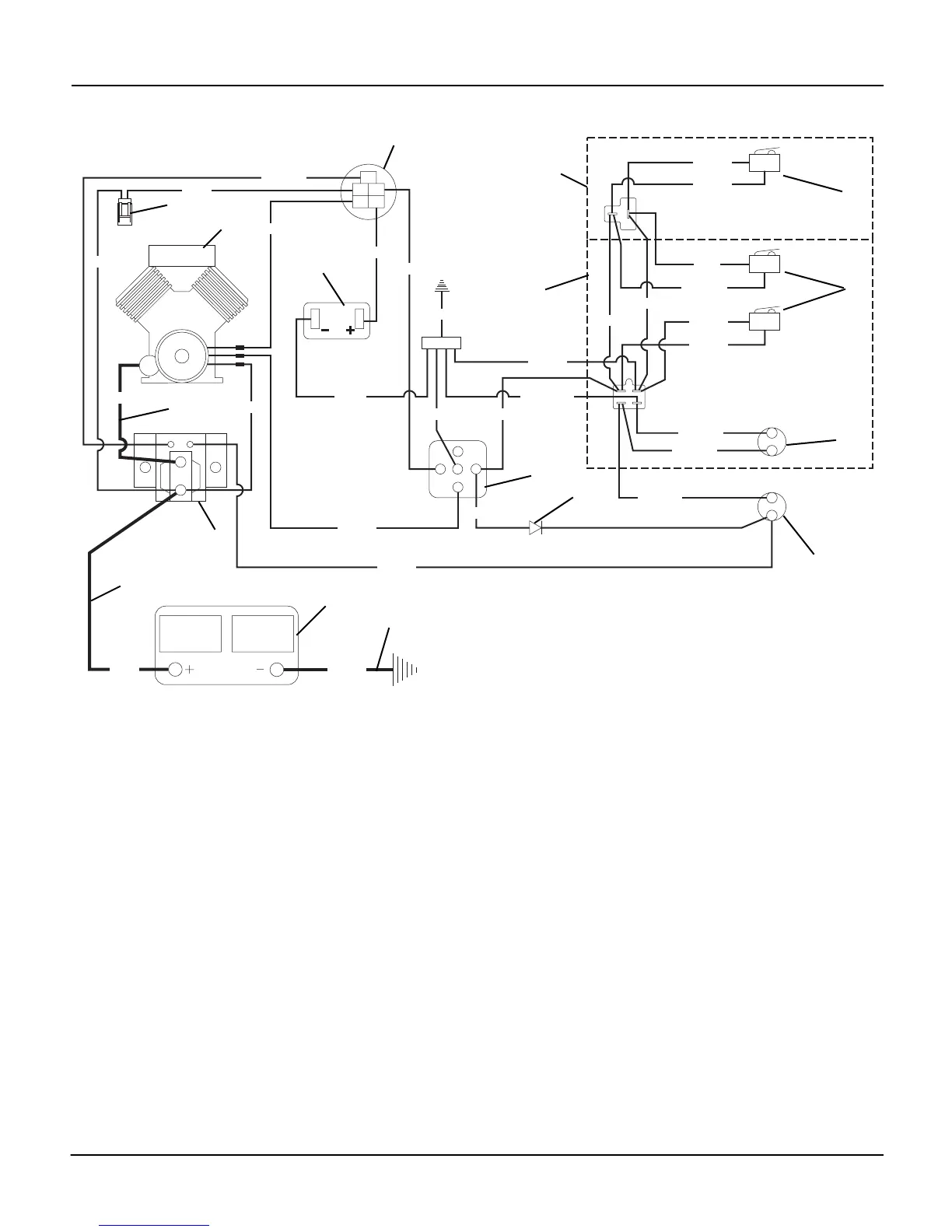

WIRING DIAGRAM
Model 985114
Item Part No. Qty. Description
1 08251900 1 Engine, Briggs and Stratton 16HP V Twin H/S
2 045037 1 Fuse, 25 AMP
3 019223 1 Ignition Switch
4 038256 1 Hour Meter
5 041815 1 Cable
6 044766 1 Solenoid
7 02743300 1 Cable, Battery-To-Solenoid
8 01554800 1 Battery
9 09222700 1 Cable, Negative Battery 35"
10 03081700 1 Molded Diode Plug- Clear 1 AMP
11 040216 1 Relay
12 047306 1 Harness, Wiring Handlebar
13 046823 3 Switch
14 08594200 1 Harness, Steering Brake
15 051919 1 Switch,Interlock Closed (Forward/Reverse)
16 051918 1 Switch,Interlock Open (PTO)
85
86
87
87A
30
RELAY
HOURMETER
S
B
R
I
A
YELLOW
BATTERY
BLACK
FUSE
SWITCH
SOLENOID
ENGINE
WHITE
BRN/WHT
BLUE/WHITE
BLUE
WHT/RED
FWD/REV
INTERLOCK
SWITCH
RED
RED
LT. GRN
DIODE
LT. BLUE
BROWN
IGNITION
SWITCH
ORANGE
BLACK
PTO
INTERLOCK
SWITCH
RED
HANDLEBAR
CONNECTOR
GREEN
GRN/WHITE
WHITE
BROWN
GREEN
SPLICE
CLIP
WHITE
LEFT PRESENCE
CONTROL
BROWN
STEERING
BRAKE
CONNECTOR
WHT/BLK
ORANGE
BRN/WHT
GRN/WHT
TAN
WHITE
RIGHT PRESENCE
CONTROL
STEERING BRAKE
PRESENCE CONTROL
WHITE
BROWN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
13
15
16
PH0331
