Additional Cutting Height
When the deck is adjusted to its highest level,
up to an additional 3/4 in. of cutting height
can be gained by removing one, two or three
blade spacers (G) from each blade.
Each blade spacer is 1/4 in. (6 mm). If two or
three spacers are removed, shorter blade
bolts (H) must be used. The shorter blade
bolts for this application are mounted under
the center belt cover and retain the HOC
spacers when not in use.
CAUTION: Do add or remove blade spacers
to change cut heights within the normal deck
cut height range. Blade spacers are only
removed to achieve cutting heights greater
than 4.25 in. (108 mm).
To gain additional cut height:
1. Set deck to maximum cut height. See
Adjusting Control Handle Height on
page 14.
2. Remove blades. See REPLACING
MOWER BLADES on page 26.
3. Remove or add spacers to achieve the
desired cut height
HEIGHT OF CUT – FLOAT DECK PRO WALKS
HOC Rod
Hair Pin
Position
Cut Height
Inch (mm)
Washer
1 1.5 (38) No
1.75 (44) Yes
2 2.0 (51) No
2.25 (57) Yes
3 2.5 (64) No
2.75 (70) Yes
4 3.0 (76) No
3.25 (83) Yes
5 3.5 (90) No
3.75 (95) Yes
6 4.0 (102) No
4.25 (108) Yes
For HOC over 4.25 in. (108 mm): See
Additional Cutting Height on page 16.

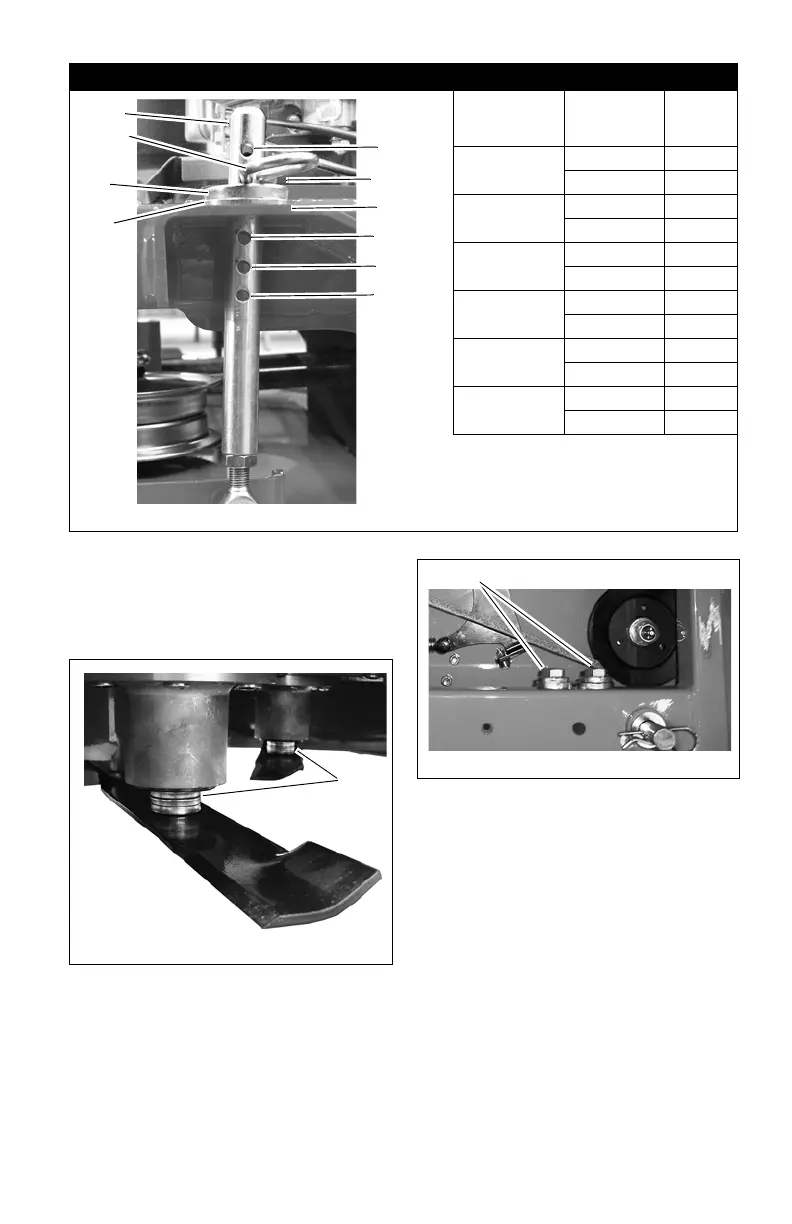

Figure 9
B
D
C
1
2
3
4
5
6
HOC
Rod
Position
E
