HackRF

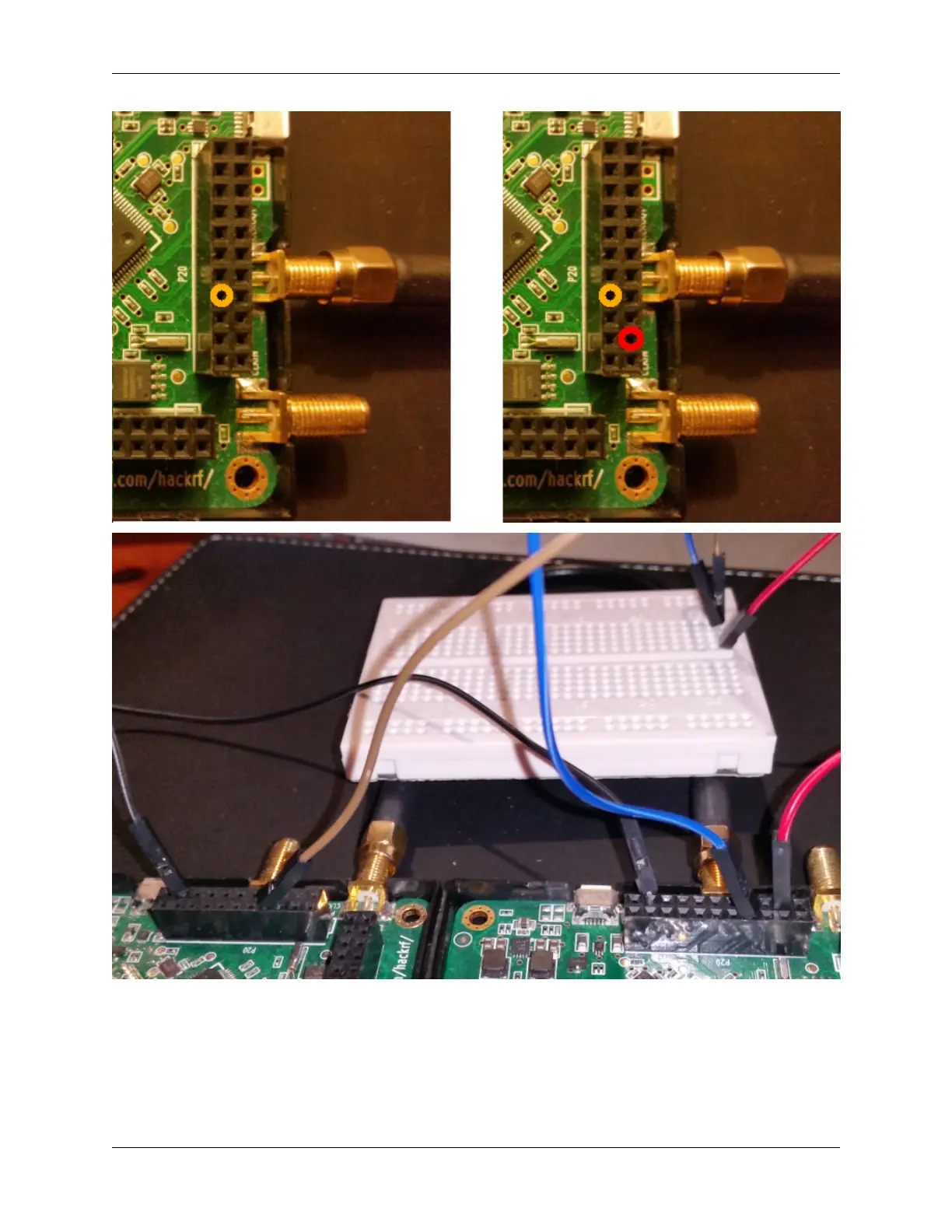

Next we connect the primary:P20-PIN7 ready GPIO pin input to the secondary:P20-PIN5 ready GPIO pin output, and

the primary:P20-PIN5 ack GPIO pin output to the secondary:P20-PIN7 ack GPIO pin input. This is the ﬁnal step, and

should look as follows:

58 Chapter 18. Multiple device hardware level synchronization
