Gree FLEXX Series User Manual

Air Handlers
16
4.7.3 Connection of Power Cords and Thermostat Wires

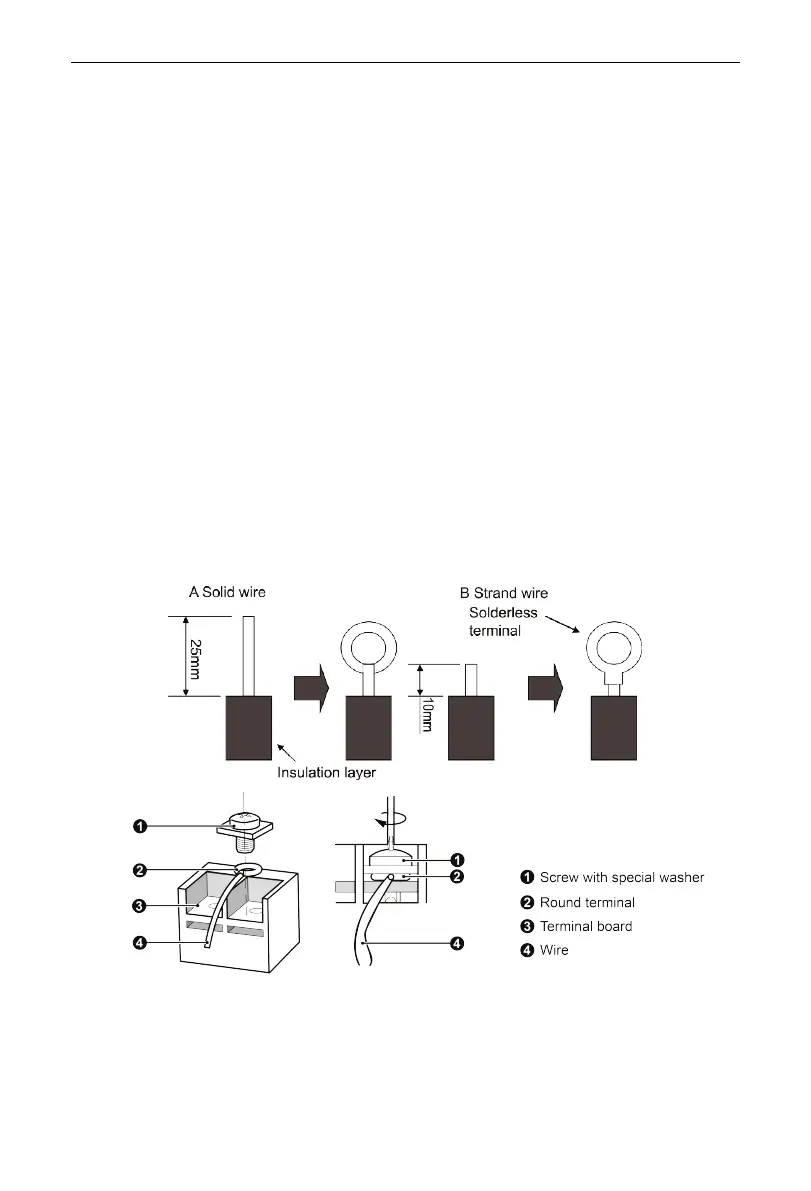

(1) For solid wires (as shown below):
1) Use wire cutters to cut off the wire end and then peel away about 25mm
of the insulation layer.
2) Use a screwdriver to unscrew the terminal screw on the terminal board.
3) Use nippers to bend the solid wire into a ring that fits the terminal screw.
4) Form a proper ring and then put it on the terminal board. Use a
screwdriver to tighten up the terminal screw.
(2) For strand wires (as shown below):
1) Use wire cutters to cut off the wire end and then peel away about 10mm
of the insulation layer.
2) Use a screwdriver to unscrew the terminal screw on the terminal board.
3) Use a round terminal fastener or clamp to fix the round terminal securely on
the peeled wire end.
4) Locate the round terminal conduit. Use a screwdriver to replace it and
tighten up the terminal screw (as shown below).

Gree FLEXX Series Specifications

General

Type	Heat Pump
Series	FLEXX
SEER	Up to 20
HSPF	Up to 10
Refrigerant	R410A
Heating Operation Range	-22°F to 75°F
Cooling Operation Range	5°F to 122°F
Operating Temperature Range (Heating)	-22°F to 75°F
Operating Temperature Range (Cooling)	5°F to 122°F
Energy Efficiency Ratio (EER)	Up to 12.5
Dimensions (Outdoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Compressor Type	Inverter
Power Supply	208/230V, 1Ph, 60Hz
Noise Level	As low as 55 dB(A)
