Gree FP-85XD/B-T Service Manual

UNIT INSTALLATION
38

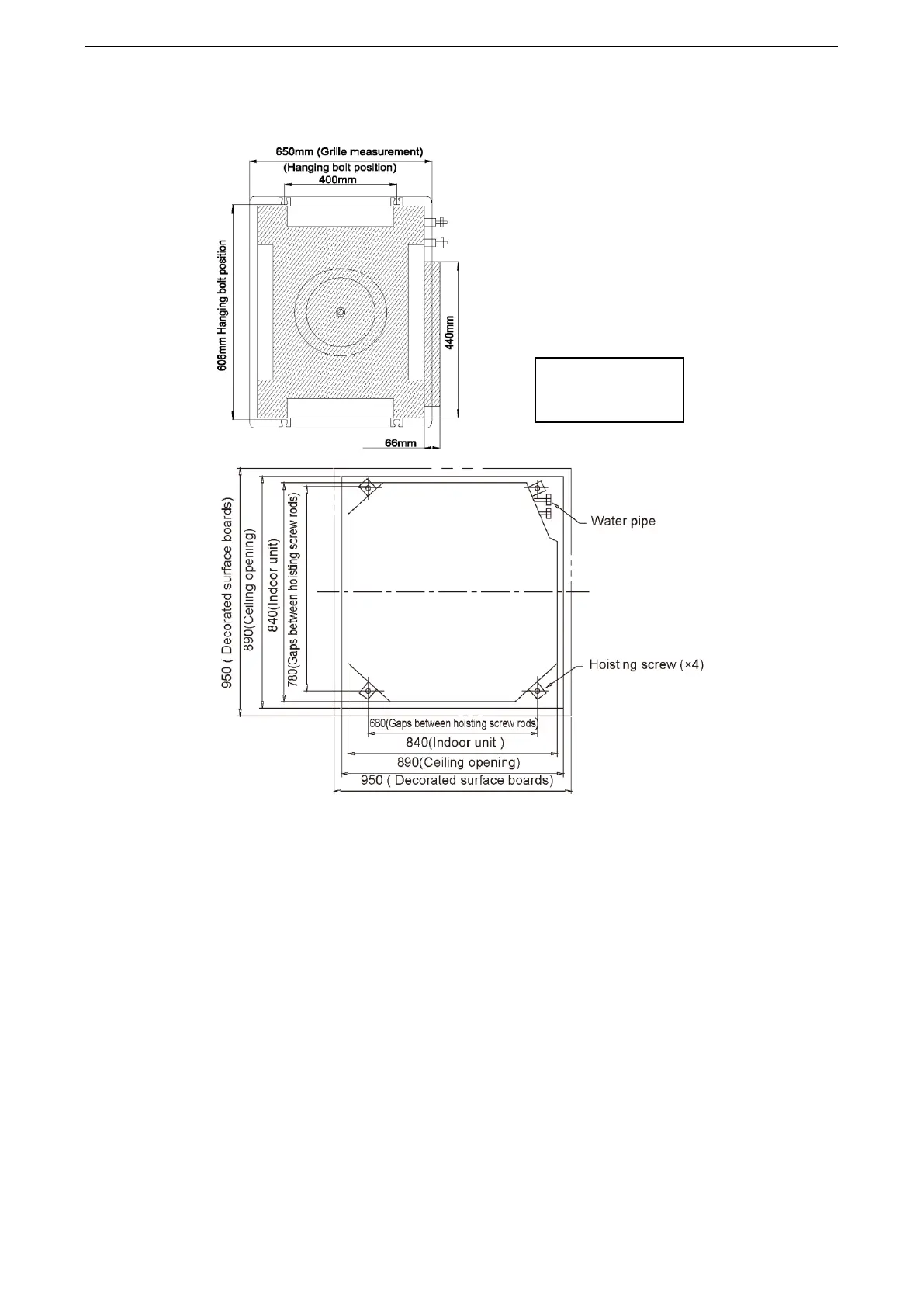

1.1 Ceiling opening and suspension bolt (M l0) pitch flemension
Be suitable for:
P-85XD/B-T; FP-102XD/B-T; FP-125XD/B-T; FP-140XD/B-T; FP-160XD/B-T; FP-180XD/B-T;
FP-200XD/B-T; FP-10XD–E; FP-12.5XD-E; FP-14XD-E; FP-16XD-E; FP-18XD-E;P-8XD/A-E;
FP-10XD/A–E; FP-12.5XD/A-E; FP-14XD/A-E; FP-16XD/A-E; FP-18XD/A-E; FP-85XD/B-T;
FP-102XD/B-T; FP-125XD/B-T; FP-140XD/B-T; FP-160XD/B-T; FP-180XD/B-T; FP-200XD/B-T;
FP-68XDT/B-K; FP-85XDT/B-K; FP-125XDT/B-K; FP-180XDT/B-K;
2. DRAINAGE PIPE
The diameter of the drain pipe should be greater than of equal to the diameter of the connecting pipe
[vinyl tube, pipe size: Outer diameter 25mm (outer dimension)].
Keep the drainage pipe short and sloping downwards at a gradient of at least 1/100 to prevent air
pockets from forming.
If the drainage hose cannot be sufficiently set on, add a drainage raising pipe.
To keep the drainage hose from sagging, keep space between hanging hooks at 1~1.5m.
Be suitable for:
FP-51XD-E
FP-68XD-E
