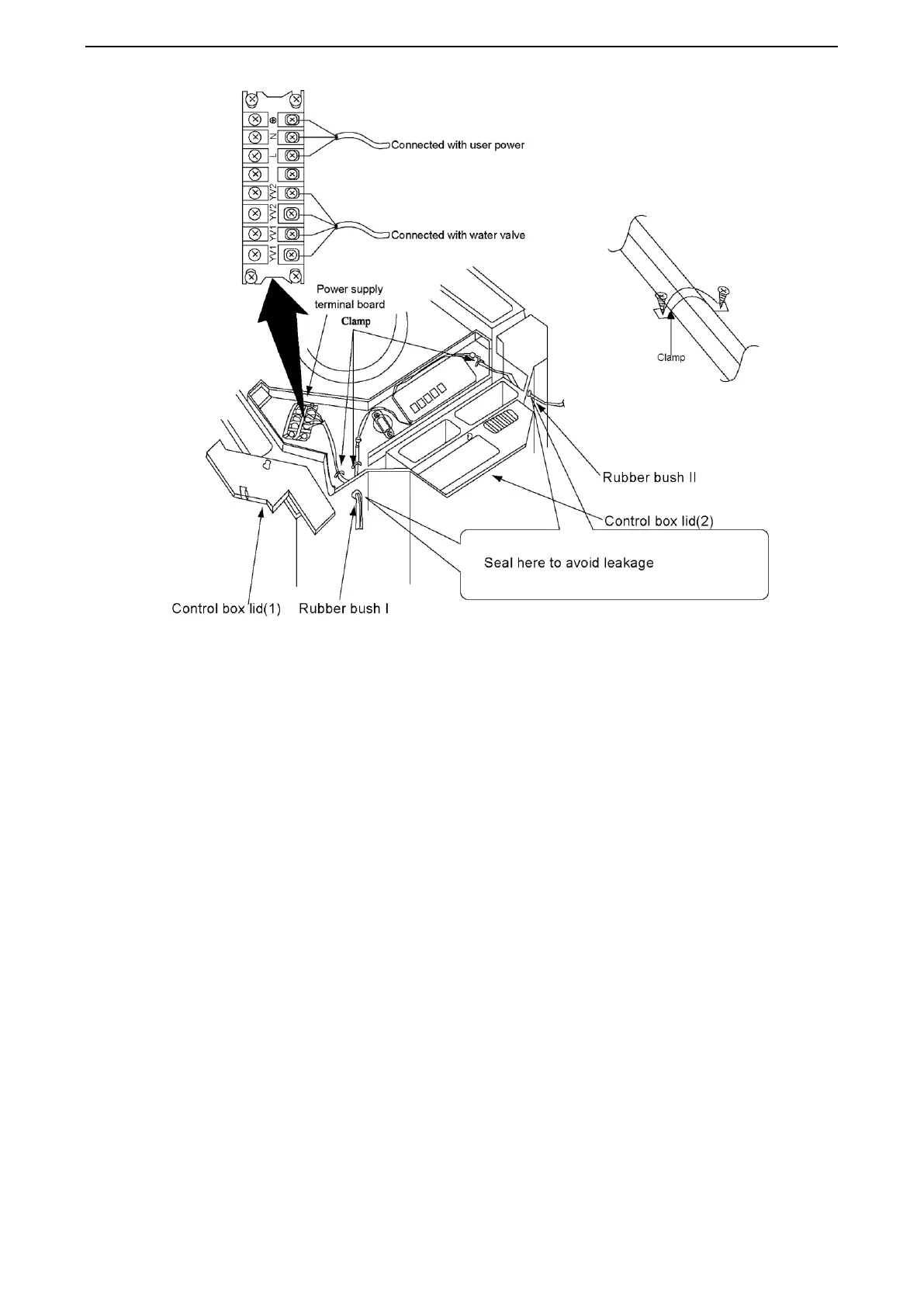

UNIT INSTALLATION
43
5. INSTALLATION OF PANEL
Set the panel to the unit body by matching the position of the swing flap motor of the decoration panel
to the piping position of the indoor unit as shown as below.
Install the decoration panel.
(1) Hang the latch, which is located on the opposite side of the swing flap motor on the panel,
temporarily to the hook of the unit. (2 Positions)
(2) Temporarily hang the remaining 2 latches to the hooks on the sides of the unit.(be careful not to
let the swing motor lead wire get caught in the sealing material.)
(3) Screw all 4 hexagon head screws located right beneath the latches in approximately
15mm.(panel will rise)
(4) Adjust the panel by turning it to the arrowed direction in Fig.4 so that the ceiling opening is
completely covered.
(5) Tighten the screws until the thickness of the sealing material between the panel and the unit.
(6) Body is reduced to 5~8 mm.
To Next Page
