Unit MAINTENANCE

4. DISASSEMBLY AND ASSEMBLY PROCEDURE OF MAIN PARTS

Model;FP-8XD-E; FP-10XD–E; FP-12.5XD-E; FP-14XD-E; FP-16XD-E; FP-18XD-E;P-8XD/A-E;

FP-10XD/A–E; FP-12.5XD/A-E; FP-14XD/A-E;FP-16XD/A-E; FP-18XD/A-E; FP-85XD/B-T;

FP-102XD/B-T: FP-125XD/B-T; FP-140XD/B-T; FP-160XD/B-T; FP-180XD/B-T; FP-200XD/B-T;

FP-85XD/B-T; FP-102XD/B-T: FP-125XD/B-T; FP-140XD/B-T; FP-160XD/B-T; FP-180XD/B-T;

FP-200XD/B-T; FP-68XDT/B-K; FP-85XDT/B-K; FP-125XDT/B-K; FP-180XDT/B-K.

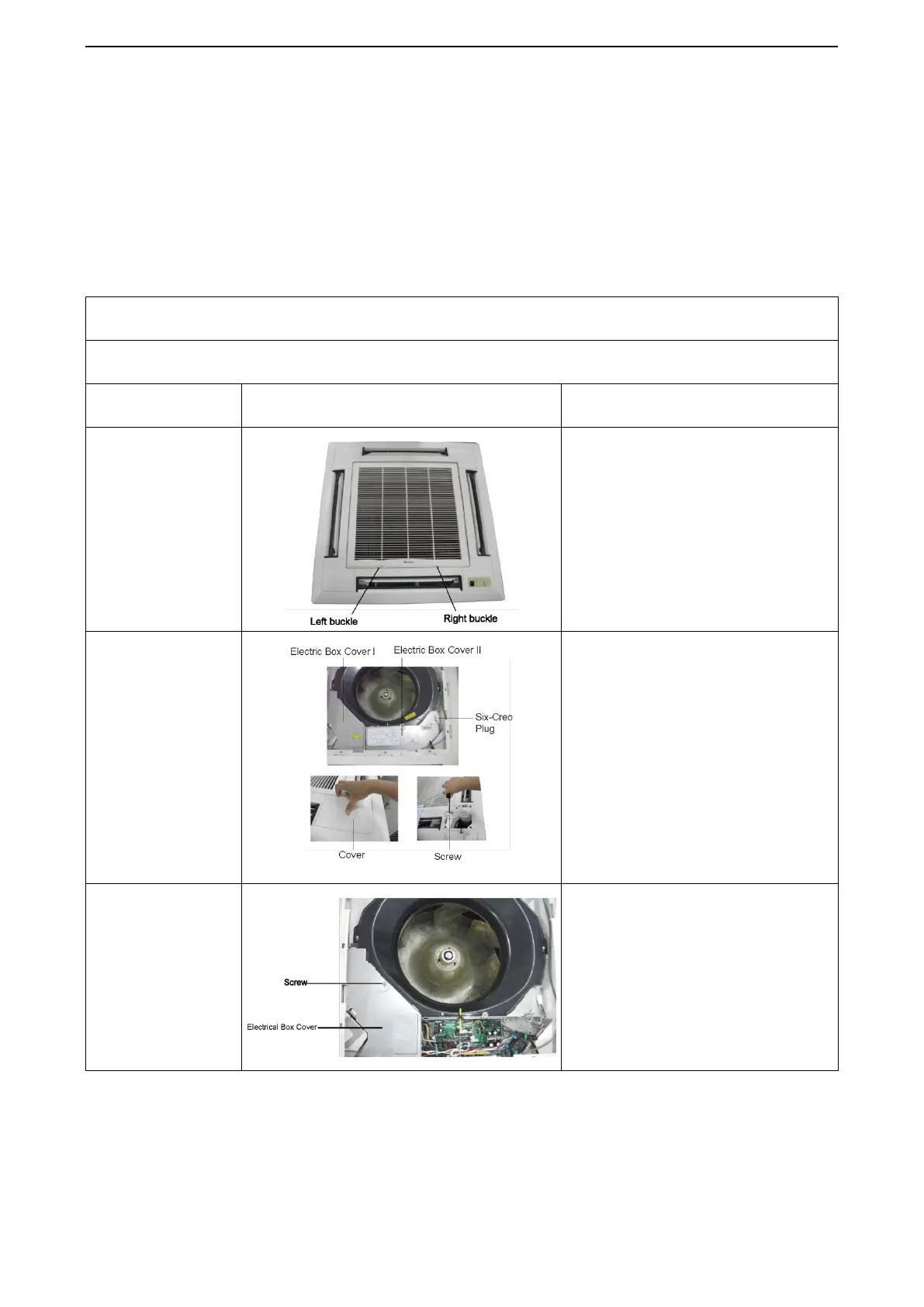

Disassembly Procedures of Indoor Unit ( Panel T01)

Remark: Make sure that the unit is stopped running and power supply is cut off before removal of the motor.

Process

Pictorial View

Handling Description

①

Disassemble the

grille of the front

panel

Push the left and right buckles on the grille

of the front panel toward the center and

meanwhile pull it upward until it forms a

℃

angle, after that pull the grille

backward.

②

Disassemble the

front panel.

Disconnect the power cord of the fan

motor and the plug of the limit switch.

Open the cover װ of the electric box and

disconnect the six-cord plug, then remove

covers on four corners away, after that,

loosen the screws to the right position and

turn the front panel counter clockwise and

lastly pull it out upward.

③

Disassemble the

drain pan.

Loosen the screws on the cover

Ⅰ

of the

electrical box and then open the cover.
