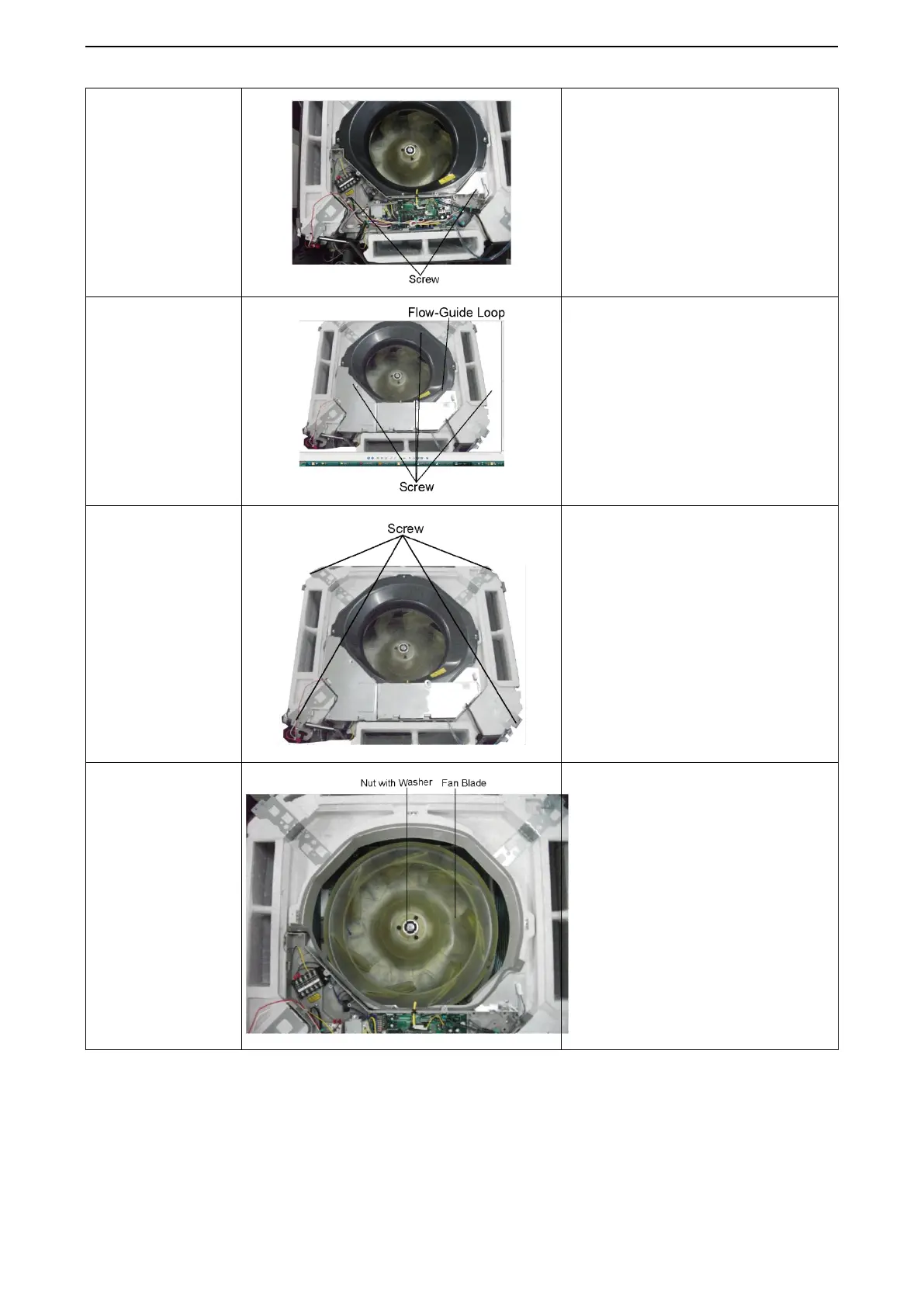

Unit MAIN
TENANCE
55
④
Dis
assemble the
electrical box
Loosen two screws fixing the electric box
and then disconnect each wiring terminals,
after that take the electric box out upward.
⑤
Dis
assemble the
flow-guide loop
Loosen the
screws fix
ing the fl
ow-guide loop
and then turn it counter clockwise.
⑥
Dis
assemble the
drain pan
Loose the screws on the drain pan and take
it out upward.
⑦
Dis
assemble the fan
b
lade
Loosen the screws on the fan blade and
then take it out upward.
56
58
Table of Contents
Table of Contents
2
Ⅰproduct
3
Models List
4
Nomenclature of the Unit
6
Function
6
Product Data
7
Ⅱcontrol
24
Wireless Remote Controller
25
Yb1F2(X-Fan)
25
Guide for Operation-General Operation
28
Guide for Operation-Optional Operation
28
Introduction for Special Function
28
Changing Batteries and Notices
29
Yb1Fa(X-Fan)
30
Operation of Wireless Remote Control
32
Changing Batteries and Notices
33
Wired Remote Controller
34
Introduction to Z5K351(Optional)
34
Introduction to Z4E351B (Optional)
35
Symbols on the LCD
35
Introduction to the Functions of the Press Keys
36
Ⅲ Unit Installation
38
Selection the Mounting Position
39
Ceiling Opening and Suspension Bolt (M L0) Pitch Flemension
40
Drainage Pipe
40
Precautions for Drainage Raising Pipe
41
Instruction
42
Electric Wiring
43
Wiring of Unit and the Controller
44
Wiring of the Unit
44
Installation of Panel
45
Precautions
46
After Fixing be Sure no Gap Left between the Ceiling and the Panel
47
Ⅳ Unit MAINTENANCE
48
Troubleshooting
49
Care and Maintenance
49
Wiring Diagram
53
Disassembly and Assembly Procedure of Main Parts
56
Exploded Views and Spare Part Lists
62
