U-Match Series DC
Inverter Service Manual
5.2 Indoor Unit
5.2.1 Duct Type

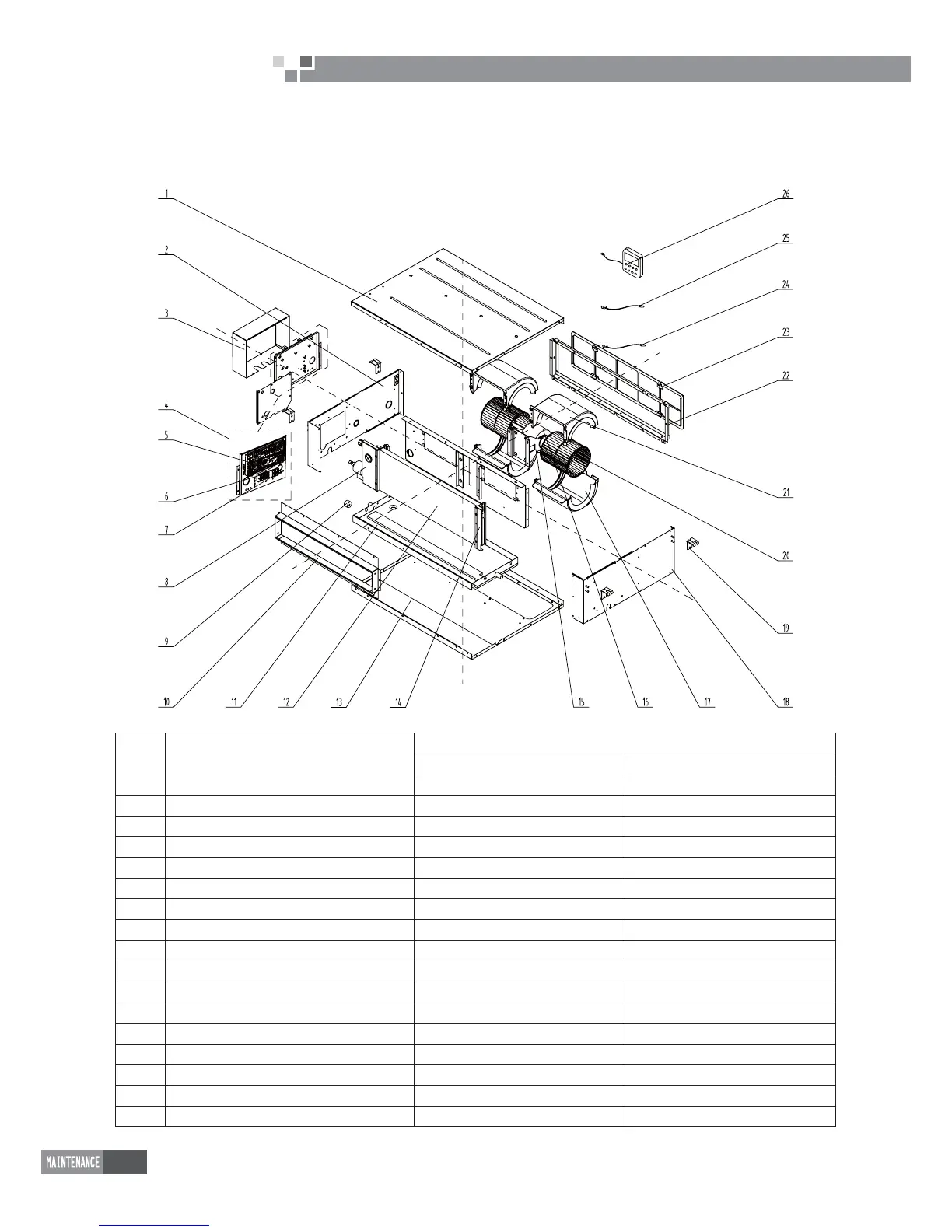

Model: GFH09K3FI exploded view and spare parts list
NO. Name of Part
GFH09K3FI
Product Code CF060N0420
Part Code Quantity
1 Top Cover Board Assy '01264176 1
2 Electric Box Cover '01425200050 1
3 Left Side Plate Assy '01315200072 1
4 Electric Box Assy '01395200239 1
5 Main Board '30224000030 1
6 Terminal Board '42010194 1
7 Terminal Board '4201025301 1
8 Left Evaporator Support '01094122 1
9 Choke Plug of Drain Pipe '76712455 1
10 Air intake side-board Sub-assy '01494118 1
11 Water Tray Assy 01285200028 1
12 Evaporator Assy 01025200066 1
13 Lower Cover Plate Sub-Assy 01265200091 1
14 Right Support of Evaporator '01094121 1
15 Supporter '01804100140 1
16 Brushless DC Motor '15704100001 1
