GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
239
Precondition: No refrigerant exists in the pipeline system and the power supply has been disconnected.

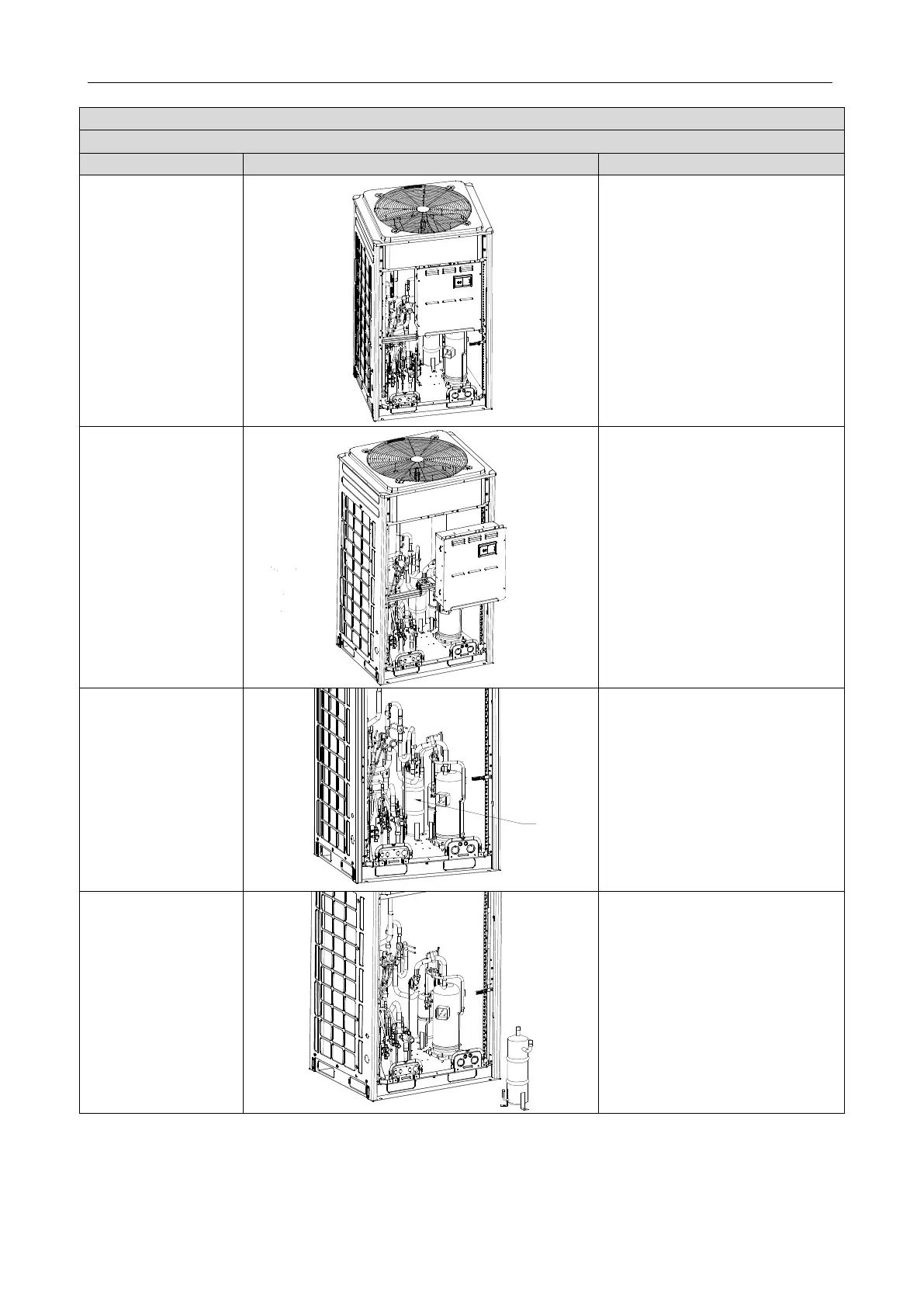

1. Loosen the hooks at
the bottom of the
electric box and the
screws.
●
Remove the upper and lower front
panels.
●
Loosen the hooks at the bottom of
the electric box.
●
Use a screwdriver to unscrew the
electric box.
2. Remove the electric
box.
●Disconnect internal and external
connecting lines of the electric box.
●Protect the internal parts during the
disassembly.
3. Disassemble the oil
separator.
●
Use a screwdriver to unscrew the
oil separator.
●
Loosen the electric heating belt.
●Heat the four pipe joints of the oil
separator by welding and remove the
connecting pipes.
Note: Avoid nearby parts from being
burnt during welding.
4. Remove the oil
separator.
●Remove the oil separator from the
chassis.
To Next Page
