Gree GMV-120WM/B-F Service Manual

GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
260
68
Main Board
30223000005
1
69
AC Contactor
44010265
2
70
Terminal Board
42018000026
1

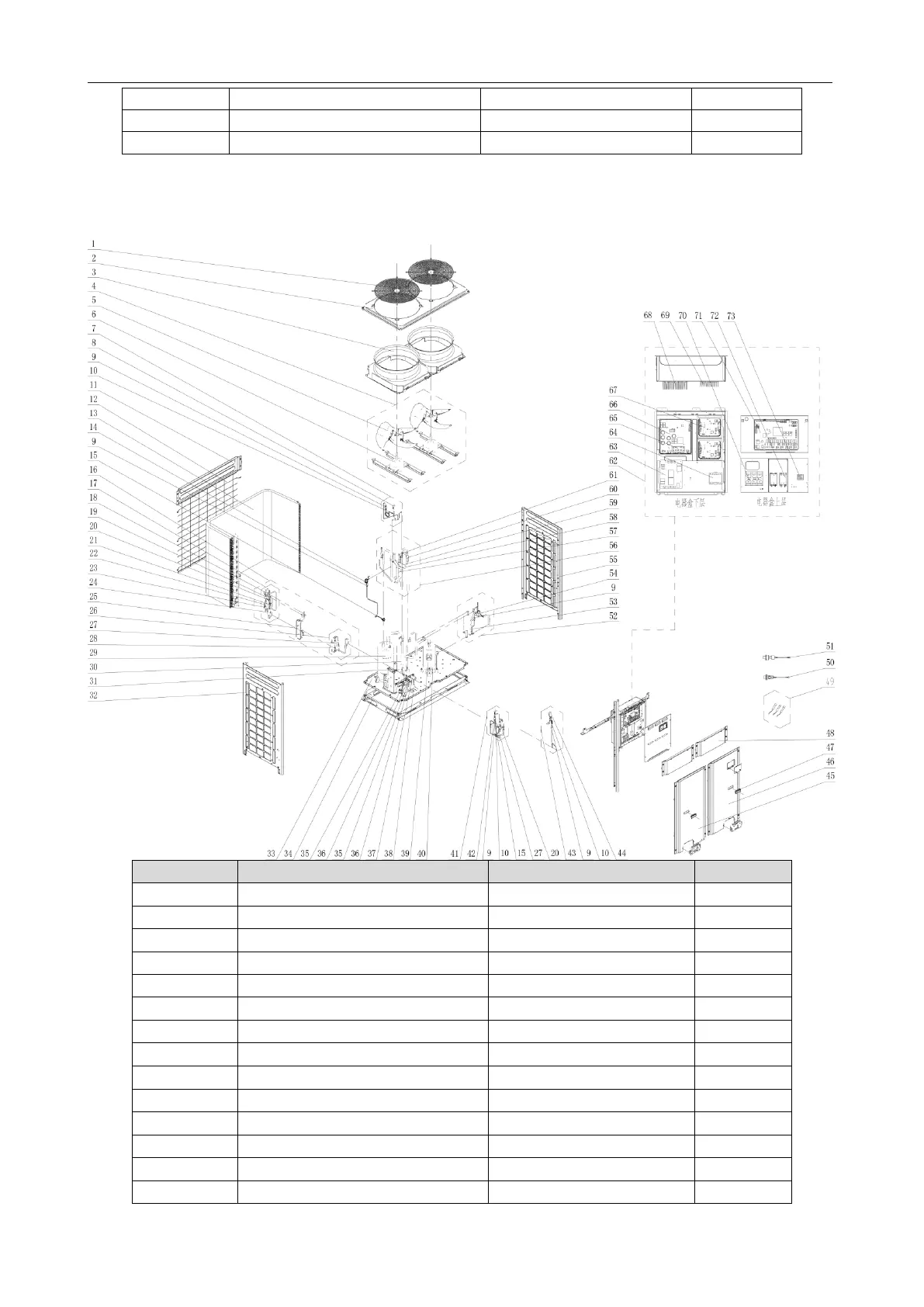

Modle GMV-96WM/B-F(U)
Product Code CN851W1390, CN851W1391
No.
Name of part
Part code
Quantity
1
Rear Grill
01574100002
1
2
Top Cover
01264100006P
1
3
Diversion Circle
10474100002
1
4
Motor for Axial Fan Assy
15404100056
1
5
Axial Flow Fan
10434100002
1
6
Fan Motor
15704119
1
7
Gas By-pass sub- assy
04634100012
1
8
Magnet Coil
4304410018906
1
9
Filter
07415200002
1
10
Electromagnetic Valve
43000054
1
11
Rear Top Cover
01264100005P
1
12
Rear Grill
01574100001
1
13
Condenser Assy
0112410009001
1
14
Low Pressure Survey Valve Sub-assy
07334100010
1
