Multi Variable Air Conditioners Duct Type Indoor Unit
8
4 Installation Instructions
4.1 Installation of Indoor Unit
4.1.1 Outline Dimension and Installation Spots
Equip with an inspection hatch after lifting the unit. For the convenience of maintenance, the
service port should be on one side of the electric box and below unit’s lower level.

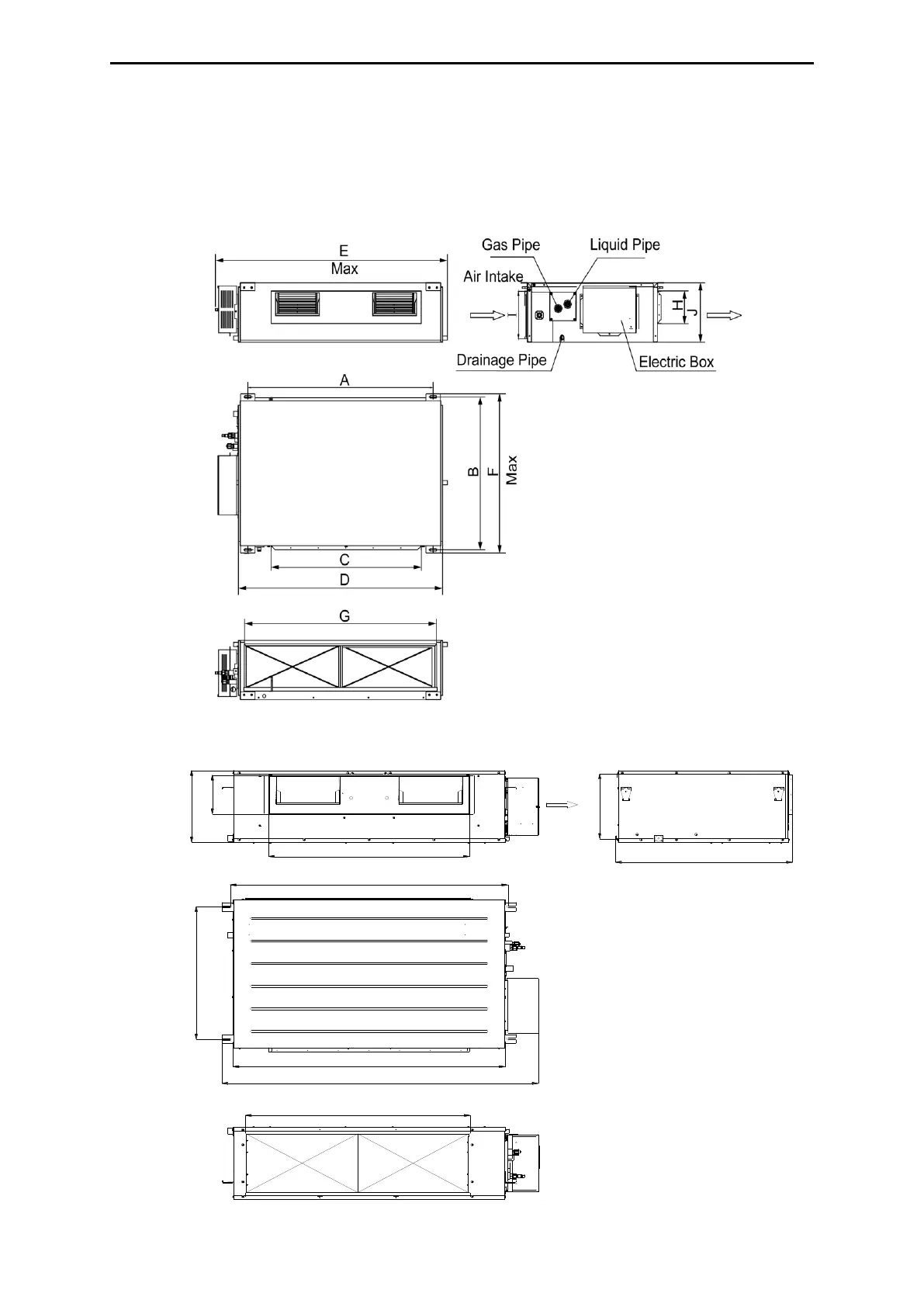

(1) Below are the outline dimension applicable to indoor units whose cooling capacity range is
5.6kw to14.0kw.
Fig 4.1.1
(2) Below are the outline dimension applicable to indoor units whose cooling capacity is
16kw.
Fig 4.1.2
