Gree GMV-ND56PHS/A-T User Manual

Multi Variable Air Conditioners Duct Type Indoor Unit
14

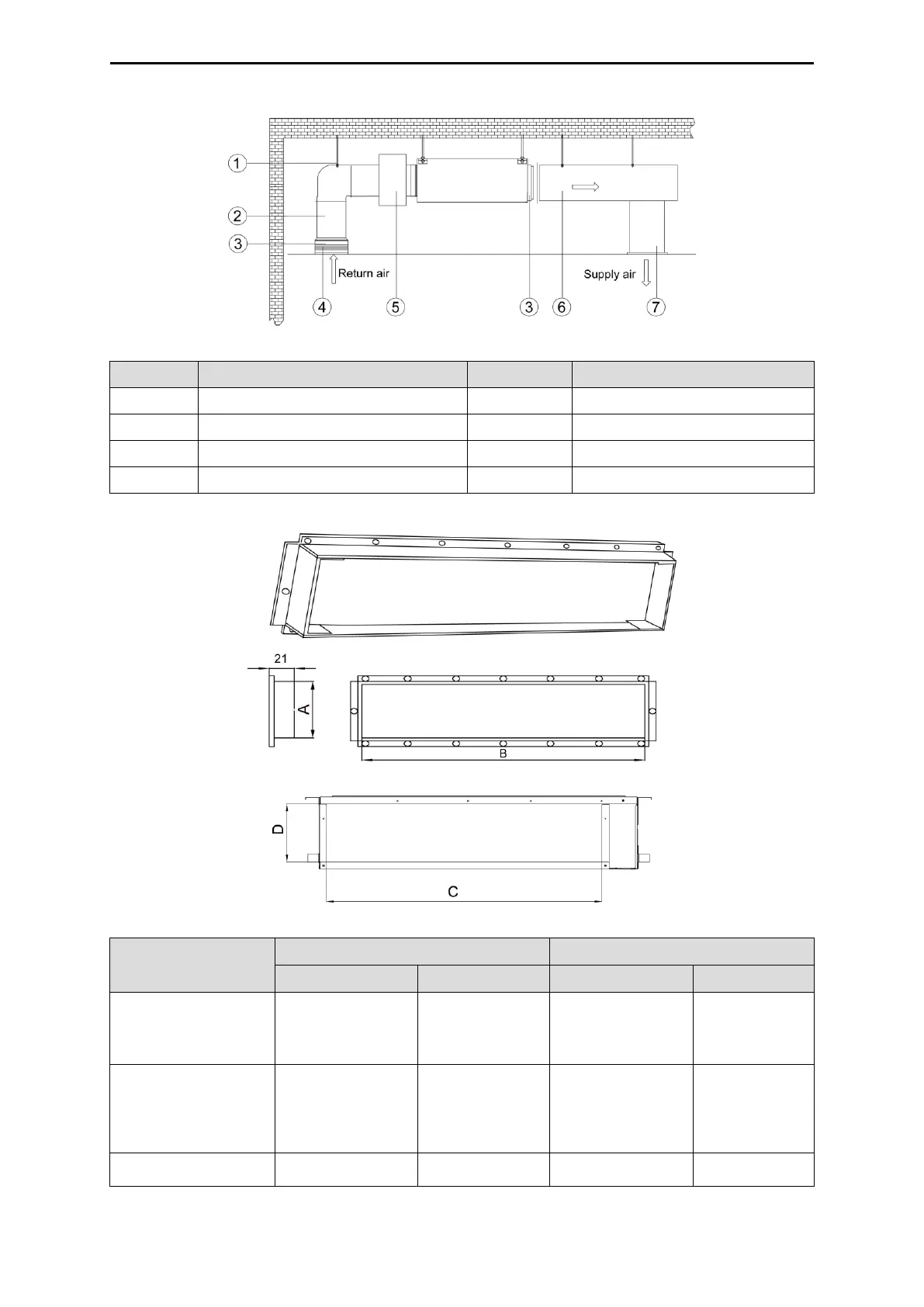

(1) Installation of the Rectangular Duct
Fig 4.4.1
No.
Name
No.
Name
1
Hanger Rod
5
Static Pressure Box
2
Return Air Duct
6
Main Supply Air Duct
3
Canvas Duct
7
Supply Air Outlet
4
Return Air Inlet
4.4.2 Shape and Size of Air Outlet and Air-return Opening
Fig 4.4.2 Air Outlet
Fig 4.4.3 Air-return Opening
Model
Size of Air Outlet
Size of Air –returen Opening
A
B
C
D
GMV-ND56PHS/A-T
GMV-ND63PHS/A-T
GMV-ND71PHS/A-T
GMV-ND80PHS/A-T
158
(6-1/4)
818
(32-1/4)
994
(39-1/8)
195
(7-5/8)
GMV-ND90PHS/A-T
GMV-ND100PHS/A-T
GMV-ND112PHS/A-T
GMV-ND125PHS/A-T
GMV-ND140PHS/A-T
158
(6-1/4)
818
(32-1/4)
100
(3-7/8)
206
(8-1/8)
GMV-ND160PHS/A-T
190
(7-1/2)
850
(33-1/2)
940
(37)
286
(11-1/4)
