A/A DC INVERTER U-MATCH AIR CONDITIONERS MAINTENANCE
205

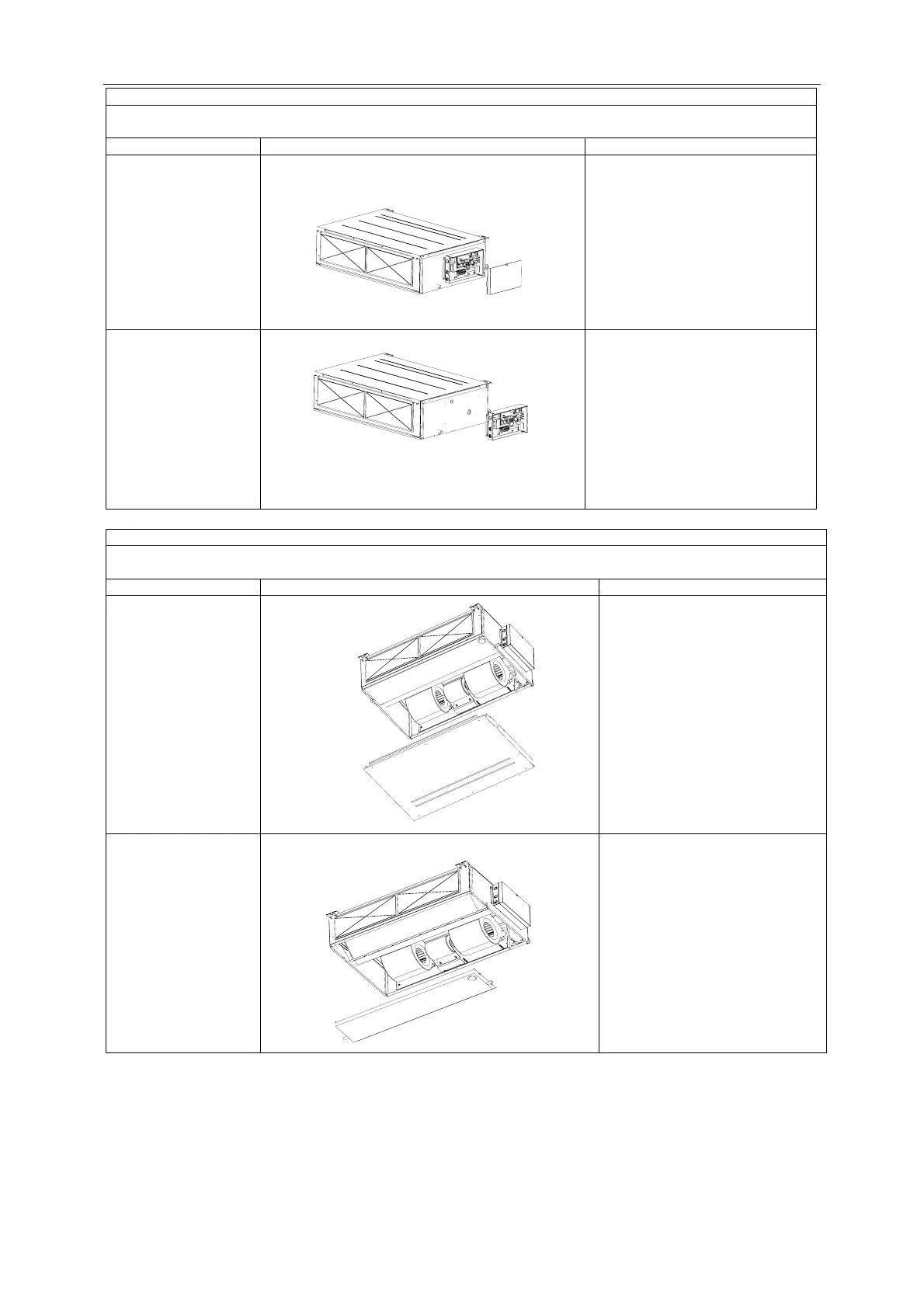

Disassembly of electrical parts box cover panel and electrical parts box
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during
disassembly, especially the electrical components. Do not dampen or hit them
Step Illustration Handling Instruction
1. Disassembly of
electric box cover
Disassemble the screw
according to the position shown
in the circle and the box and
remove the electric box in the
direction of the arrow.
2. Disassembly of
electric parts box
Disassemble the fastening
screw and remove the electrical
parts box. (As is shown in the
graph, there are 2 fastening
screws in the circle and the
screws in the direction of arrow
shall be disassembled too.)
Disassembly of water-containing plate
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during
disassembly.
Step Illustration Handling Instruction
1.Disassembly of
cover plate
Disassemble the fastening
screws on the cover plate and
remove the cover plate. (As is
shown in the graph, circle
represents 6 fastening screws
under the cover plate and the
box represents two fastening
screws on water-containing plate
symmetrically arranged both on
left and right.)
2. Disassembly of
water-containing
plate
Disassemble the fastening
screws on the water-containing
plate, pull upward and remove
the water-containing plate.
Disassembled water-containing
plate is shown in the graph.
