A/A DC INVERTER U-MATCH AIR CONDITIONERS MAINTENANCE
206

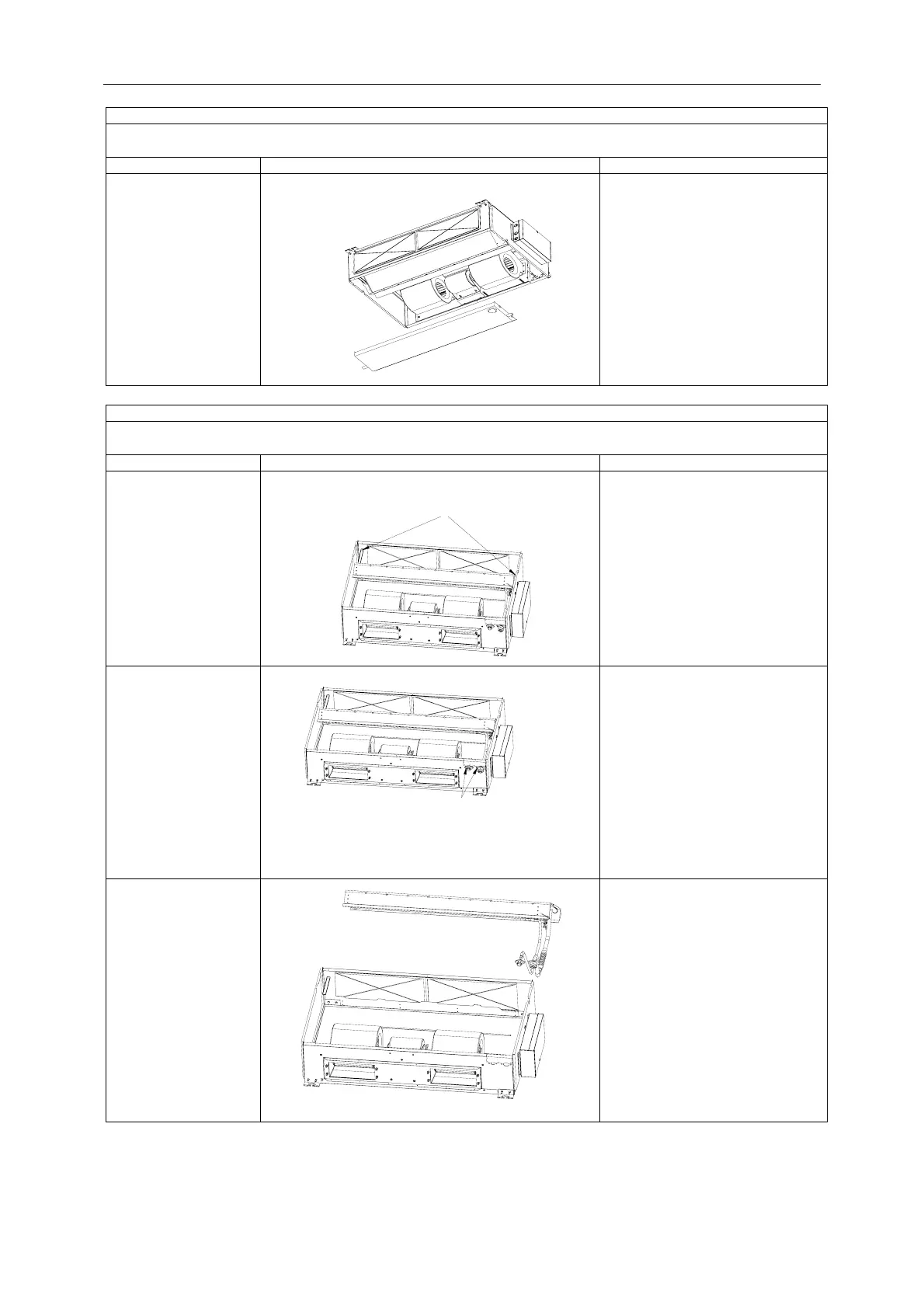

Disassembly of fan and motor
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during
disassembly.
Step Illustration Handling Instruction
Disassembly of fan
motor
Disassemble the fixing screws
on the fan components. (As is
shown in Graph 10, circle
represents 6 screws.)
Disassemble the fastening
screws on the fan and motor.
Remove the fan. (As is shown in
Graph 11, box represents
screws.)
Disassembly of evaporator
Remark: Make sure that the power supply is cut off and protect the copper tube and aluminum fin. If the time for
disassembly shall be long, put the copper tube under pressurized condition.
Step Illustration Handling Instruction
1. Disassembly of
fixing screws on the
side panels of
evaporator
Disassemble the fastening
screw connecting left and right
side panels on the evaporator
and the upper cover plate. (As is
shown in the arrows direction in
Graph 12.)
2. Disassemble
fastening screws
connecting
evaporator valve
seal-plate and joint
flange
Disassemble the fastening
screws on the valve seal-plate
and remove the valve seal-plate.
Disassemble the fastening
screws on the evaporators joint
flange. (As is shown in the
graph, box represents fastening
screws on seal-plates while
circle the fastening screws on
joining flange.
3. Removal of
evaporator
Remove the evaporator.
Removed evaporator is shown in
the graph.
Disassemble of fixing screws on the side panels of
evaporator
Disassemble fastening screws connecting evaporator
valve seal-plate and join flange
To Next Page
