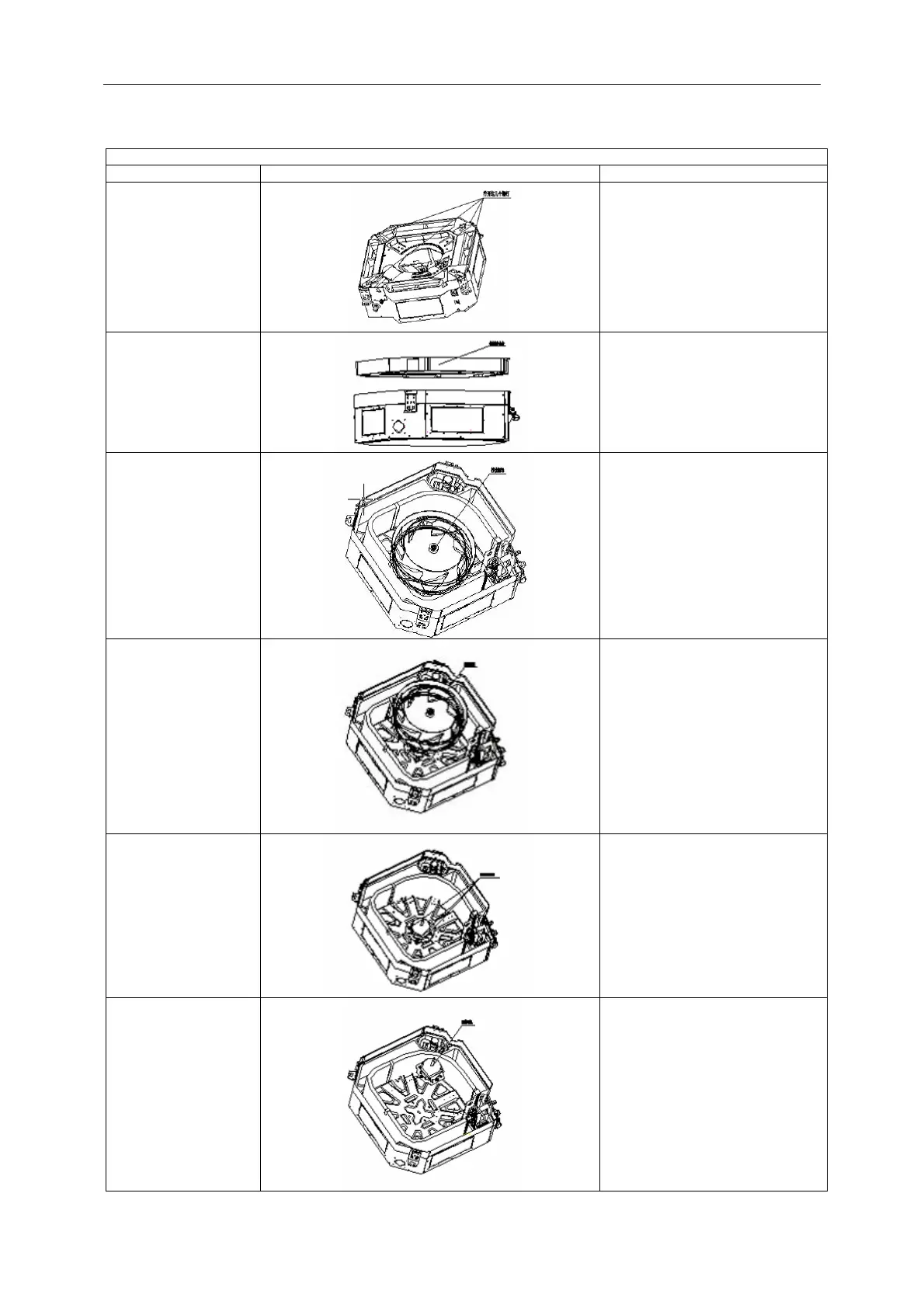

4.2.2Cassette-type Unit
Removal and Assembly of Fan Motor
Step Illustration Handling Instruction
1．Loosen the screws
fixing the water tray
●Use screwdriver to loosen the
screws fixing the water tray
2. Remove the water
tray
●Remove the water tray
3 ． Loosen the bolts
fixing the fan
●Use spanner to loosen the bolts
fixing the fan.
4. Remove the fan
●Remove the fan
5．Loosen the screws
fixing the motor
●Use screwdriver to loosen the
screws fixing the motor
6. Remove the motor
and replace it
●Remove the motor and replace it
To Next Page
