A/A DC INVERTER U-MATCH AIR CONDITIONERS MAINTENANCE
211

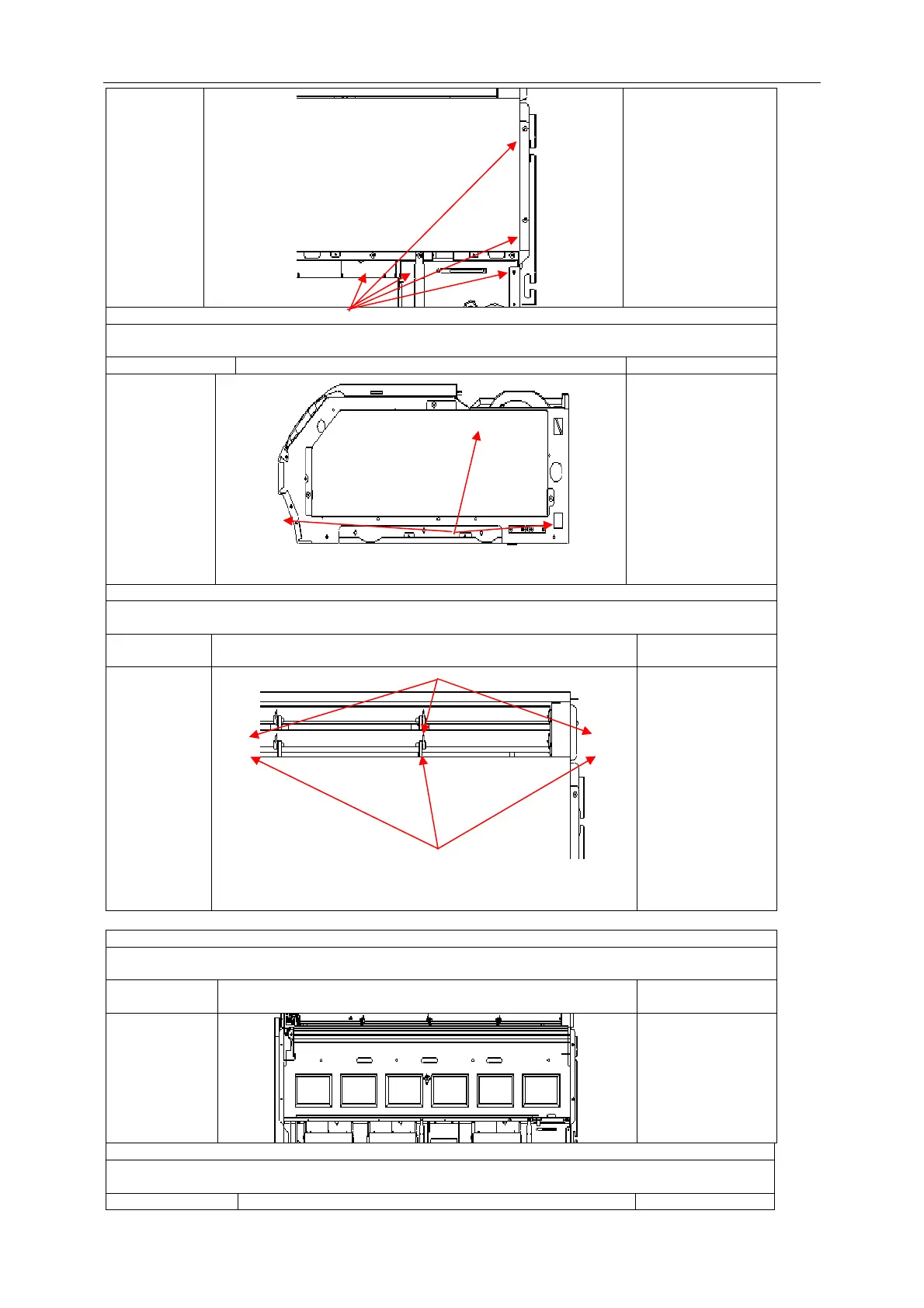

Remove
panel parts
●Remove the screws
shown by the arrow in
the graph with
screwdriver (two on
both right and left and
4 in the front) and
then remove the
panel parts.
Remove sub-assy of electric box
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during
disassembly, especially the components inside the box in case of water and hit.
Step Illustration Handling Instruction
1. Remove
electric box
cover
●Remove 3 screws
as shown by the
arrow in the graph on
left and remove the
electric box cover.
Remove air deflecting plate modules
Remark: Make sure the power supply is cut off before disassembling and protect all the parts during
disassembly, especially the joints of the air deflecting plate.
Step Illustration Handling
Instruction
Remove
sub-assy of
air deflecting
plate
●Remove the air
deflecting plates
from the air
deflecting plate
support assembly,
and then remove
both ends from the
air sweeping motor
joint. (As is shown
in the graph, arrow
represents the
support assembly
and circle the air
sweeping motor
joint.)
Remove water-containing plate modules
Remark: Make sure the power supply is cut off before disassembling and protect all the parts during
disassembly.
Step Illustration Handling
Instruction
Remove
water-containin
g plate
modules
●Remove the
water-containing
plate modules.
Remove evaporator components
Remark: Make sure that the power supply is cut off and protect the copper tube and aluminum fin. If the
time for disassembly shall be long, seal the copper tube.
Step Illustration Handling
