Gree U-MATCH GUHD09NK3CO

A/A DC INVERTER U-MATCH AIR CONDITIONERS MAINTENANCE
240
Spare Parts List
NO. Name of Part
Name Code
Qty
1 Air filter
111253031
2
2 Seal of Connection Pipe
1495306
1
3 Left Side Plate
1315306
1
4 Top Cover
1265306
1
5 temp.sensor
3900012123
1
6 temp.sensor
390001921
1
7 Electric Box
1399152
1
8 Main PCB2 30228204 1
9 Transformer
43110239
1
10 Capacitor
33010734
1
11 Capacitor 0
12 Terminal Board 0
13 Terminal Board
42010194
1
14 Isolation Washer C
70410523
1
15 Wire Clamp
71010102
2
16
Remote controller 305050031
1
17
Display board 30294219
1
18 water-level switch
450127011
1
15405302①
19 Water pump
'43138220②
1
20 Water Tray
1285323
1
21 Bottom Cover
15265301
1
22 Fan (right) 15018604 1
23 Motor FG500A
'15705305
1
24 Fan (left) 15018603 1
25 Fan Fixed Plate
1325220
1
26 Right Side Plate
1315309
1
27
Evaporator Assy '01025358
1
28 Hook
2112466
4
①GFH36K3CI
②GFH42K3CI
Model: GFH60K3CI

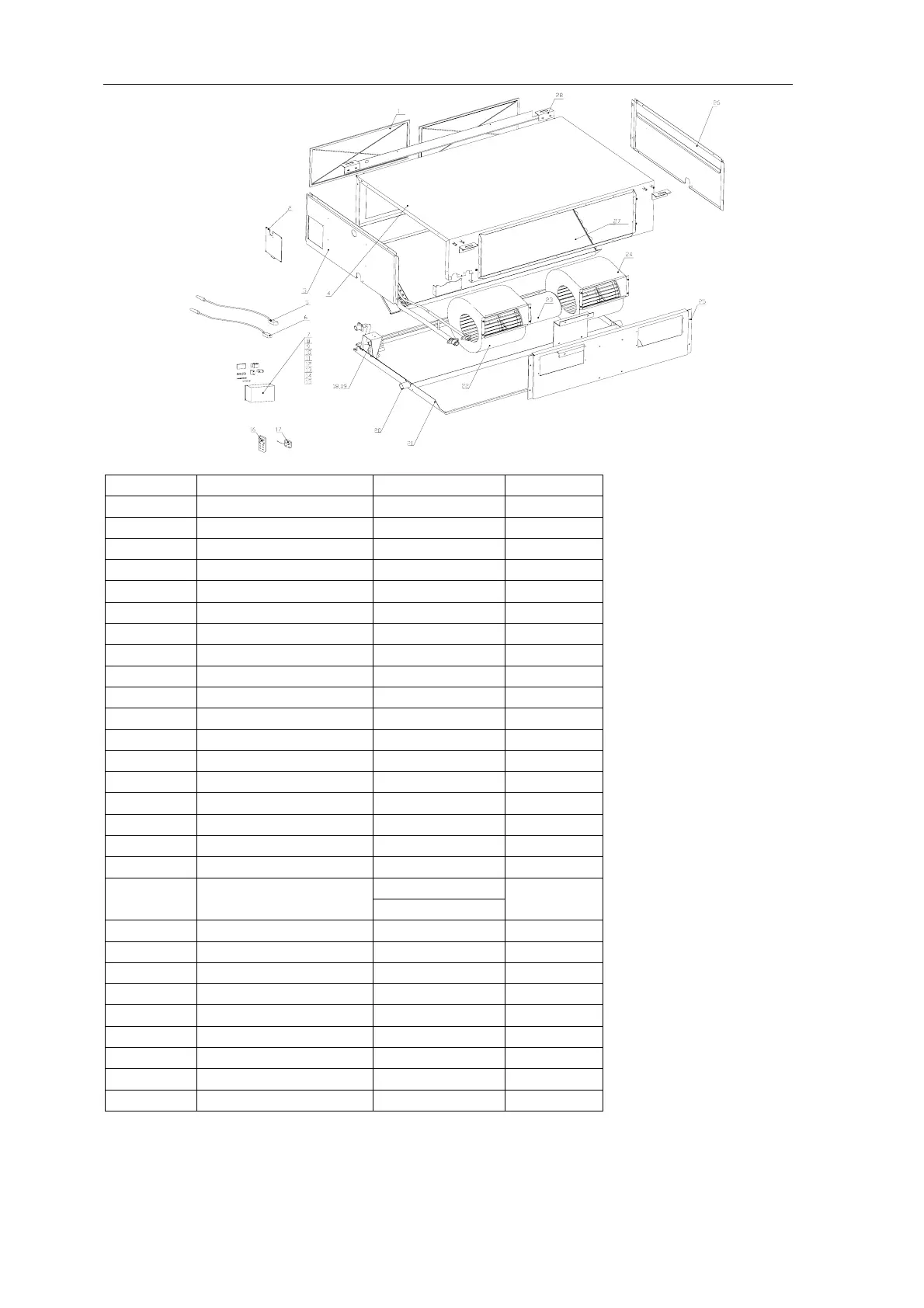

Exploded View
