Gree YX1FF - 4. Refrigerant System Diagram

Service Manual
Technical Information
19

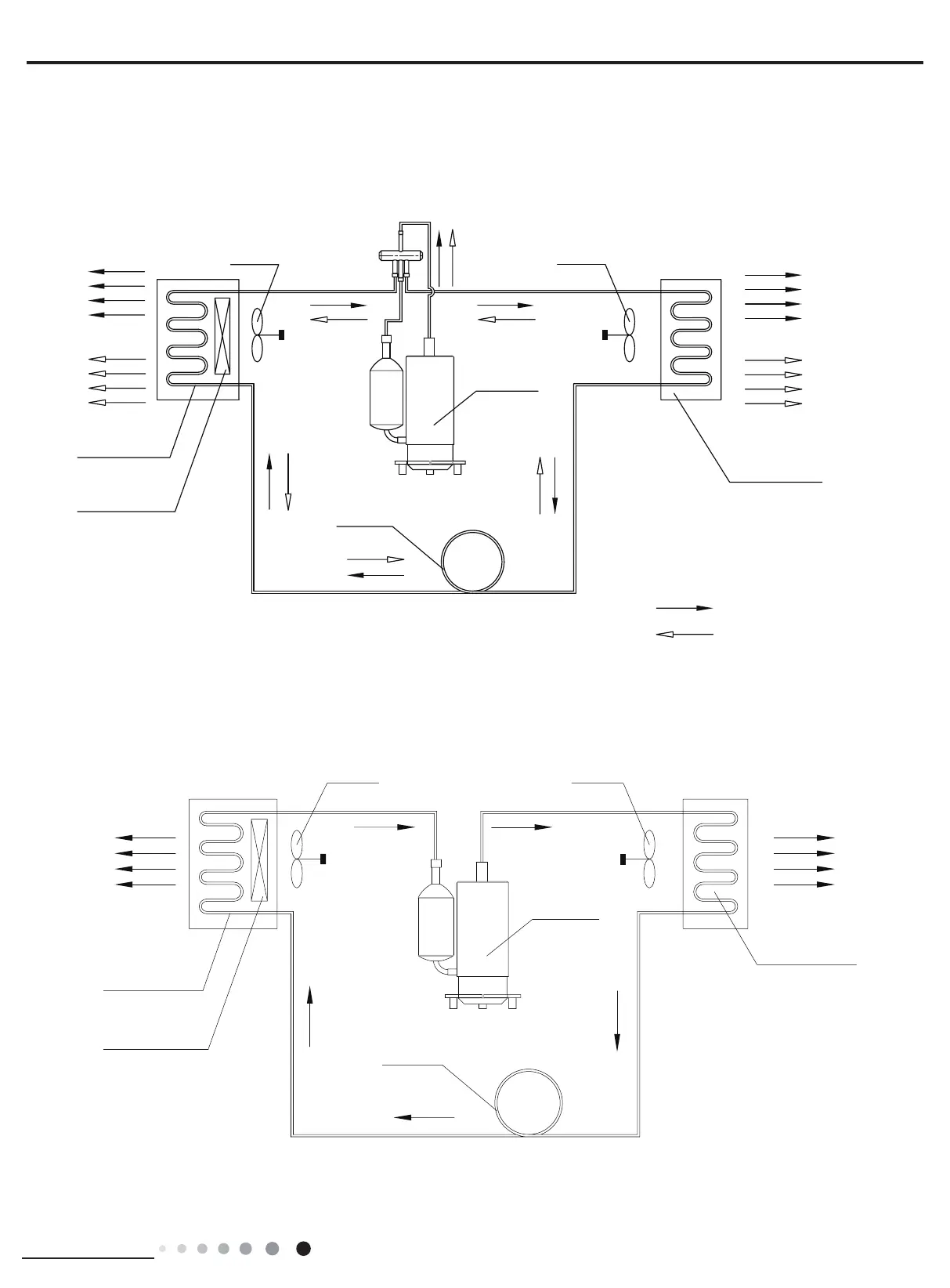

4. Refrigerant System Diagram
COOLED AIR
HOT DISCHARGED AIR
OUTDOOR COILS
CAPILLARY
AXIAL FAN
COMPRESSOR
HEATING MODE
COOLING MODE
NOTES:
REFRIGERANT FLOW DIRECTION
CENTRIFUGAL
OR CROSS FAN
HOT AIR
INDOOR COILS
ELECTRIC HEATER
COOLED AIR
(1)Cooling + Heat Pump + Auxiliary Electric Heater
(2) Cooling + Electric Heater
COMPRESSOR
OUTDOOR COILS
HOT DISCHARGED AIR
CAPILLARY
REFRIGERANT FLOW DIRECTION
AXIAL FAN
CENTRIFUGAL
OR CROSS FAN
ELECTRIC HEATER
INDOOR COILS
COOLED AIR
