Service Manual

Installation and Maintenance

Steps

Procedure

Screws

Air Duct Assy

Helicoid Tongue

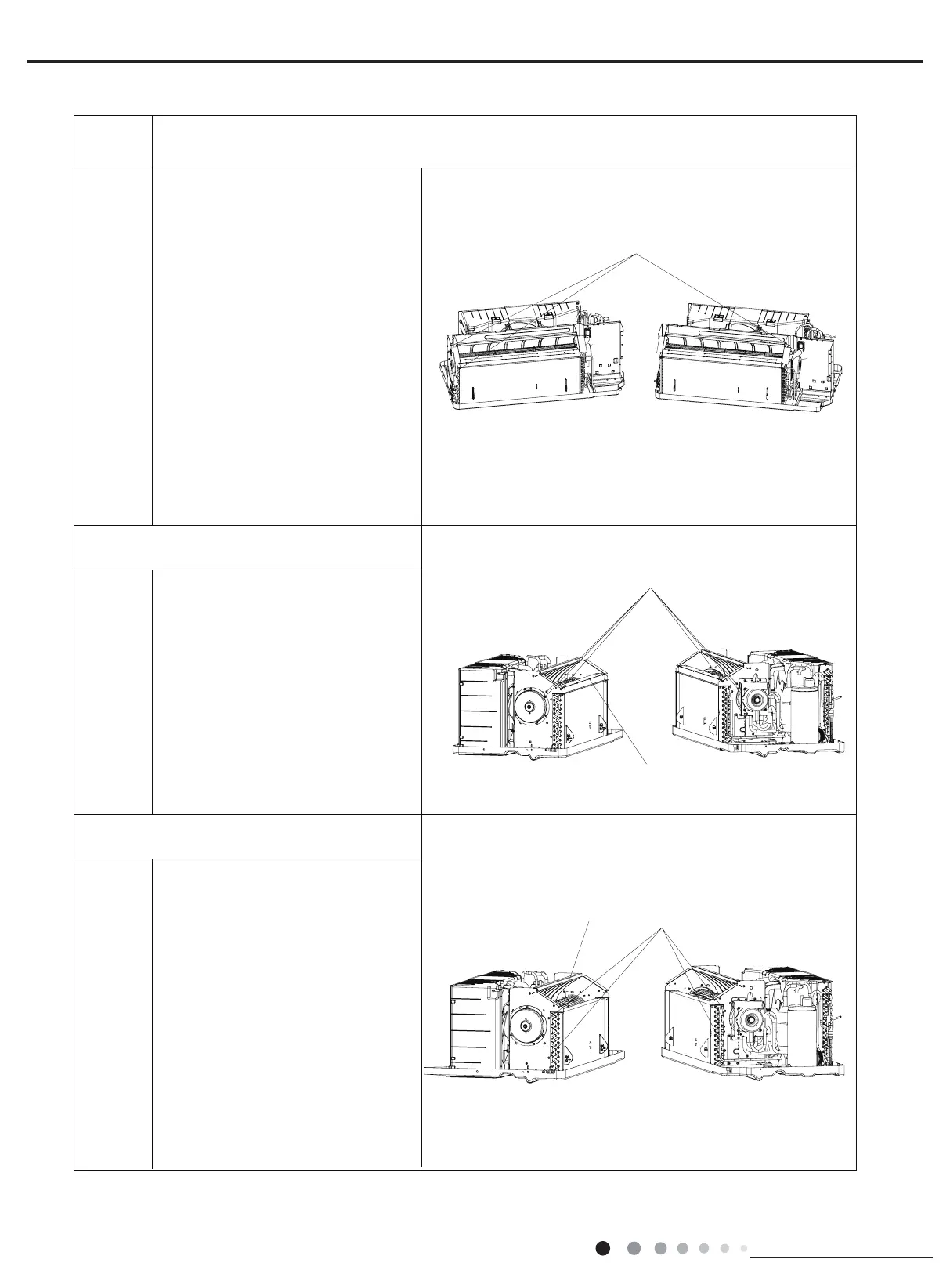

11.Remove Helicoid Tongue

12.Remove Air Duct Assy

Remove 6 screws on helicoid tongue

and then remove the helicoid tongue.

Remove 4 screws on air duct and then

remove the air duct.
