Service Manual
Installation and Maintenance
67

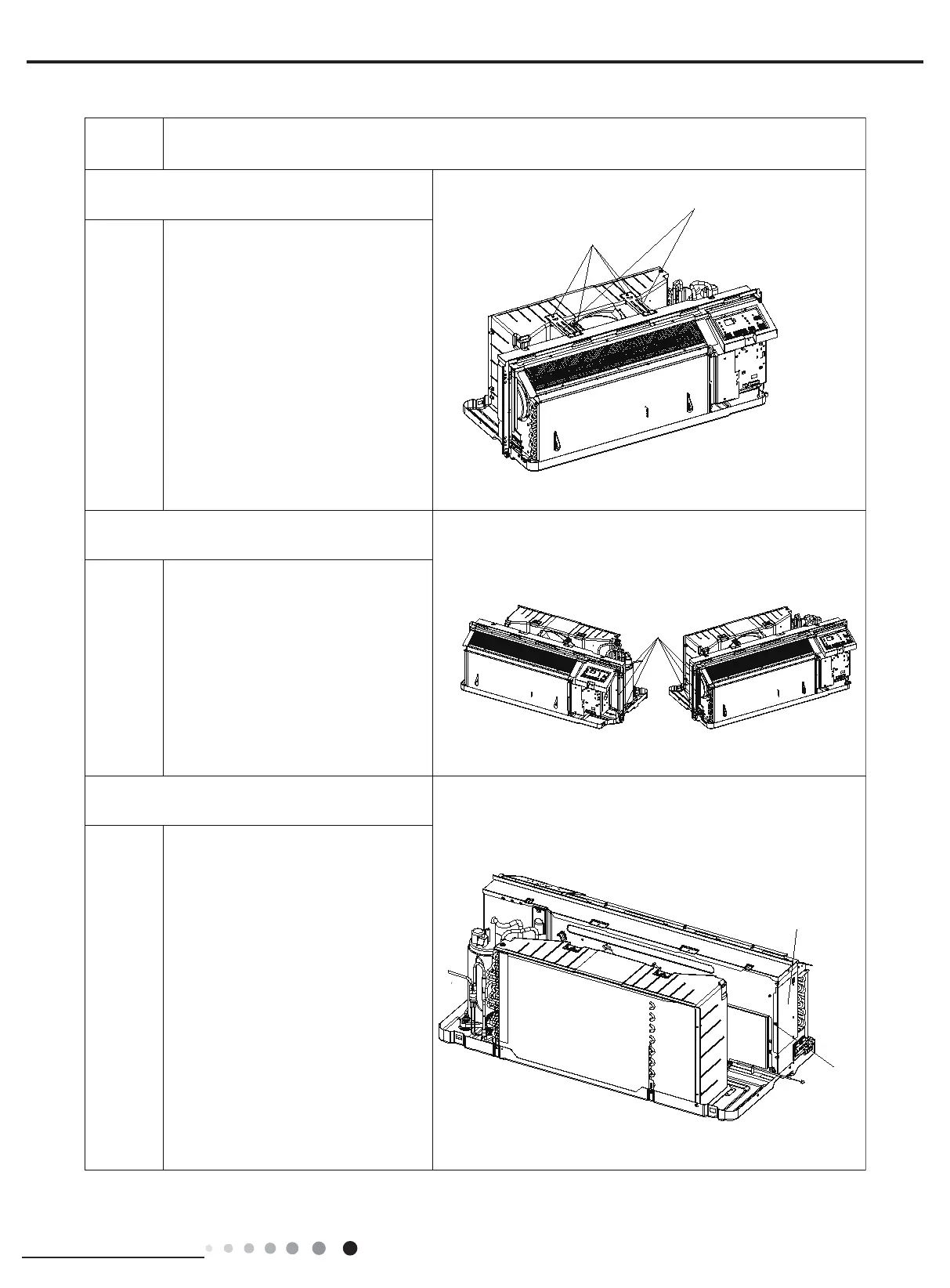

Steps
Procedure
Screws
Middle connection board
Screw
Screw
Baffle Plate
2.Remove middle connection board
3.Remove Outer Support Sub-assy
4.Remove Baffle Plate
Press the 2 clasps of filter to make it
separated from the groove and then pull
the filter outwards to remove it.
Remove 6 screws on outer support and
then remove the outer support.
Remove 1 screw on baffle plate and
remove the baffle plate.
