Service Manual
Installation and Maintenance
36
8. Installation Instructions
UNIT DAMAGE AND/OR OPERATION HAZARD
Failure to follow this caution may result in equipment
damage or improper operation.
For retrofit applications, foam seals on outdoor coil tube
sheets must make a seal between the coil and the grille or
loss of performance and premature damage to the major
components can result.
CAUTION
!

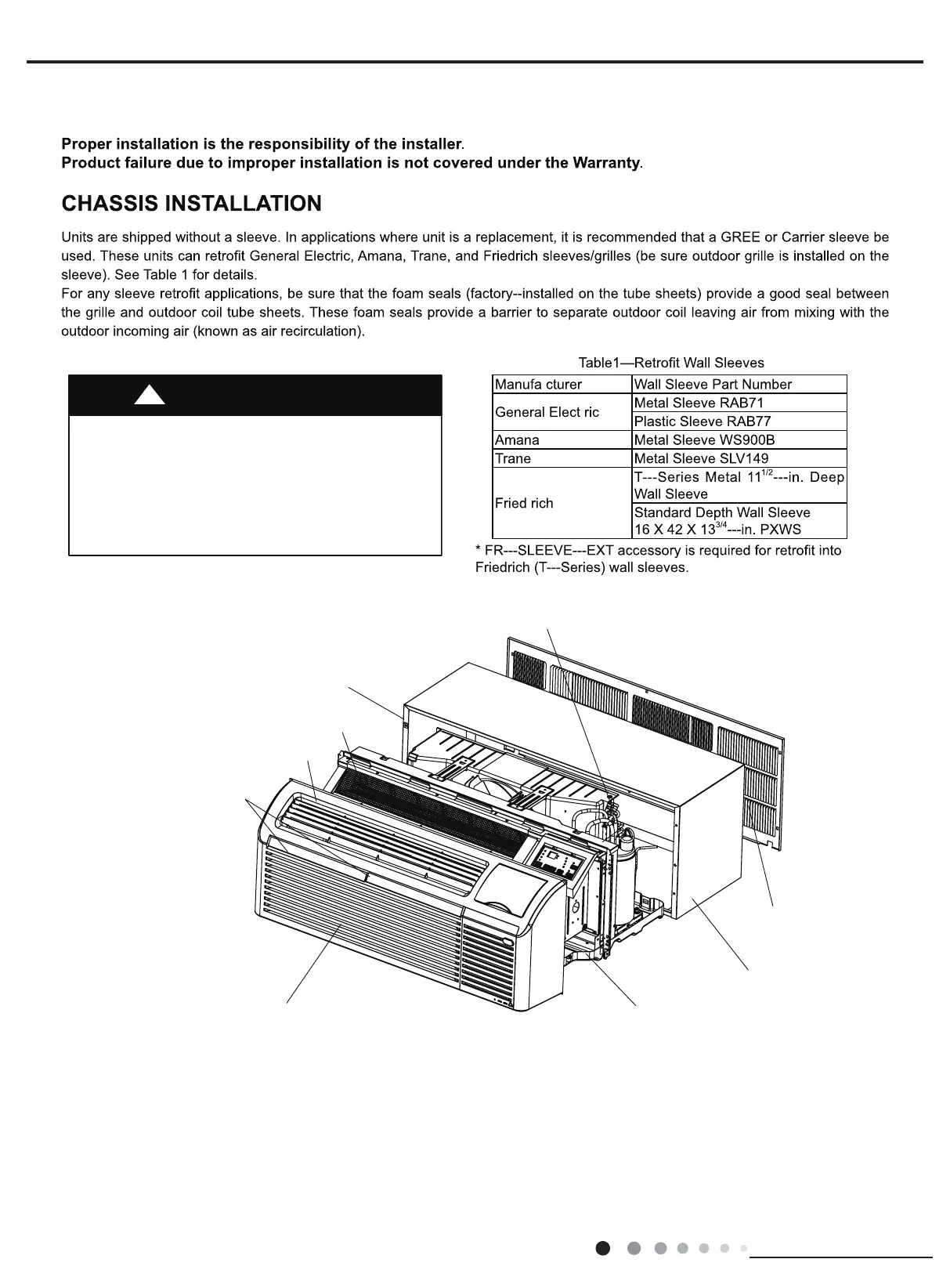

Fig. 1 – Unit Components
DISCHARGE
GRILLE
WIRE SCREEN
OUTDOOR
ORIFICE
COIL TUBE
SHEETS
INDOOR-AIR
INLET
FILTERS
ACCESSOR
WALL
ACCESSOR
OUTDOOR
GRILLE
FRONT
PANEL
SLEEVE
BASEPAN
