Greenbridge PC1000 - Page 26

-A13-4-

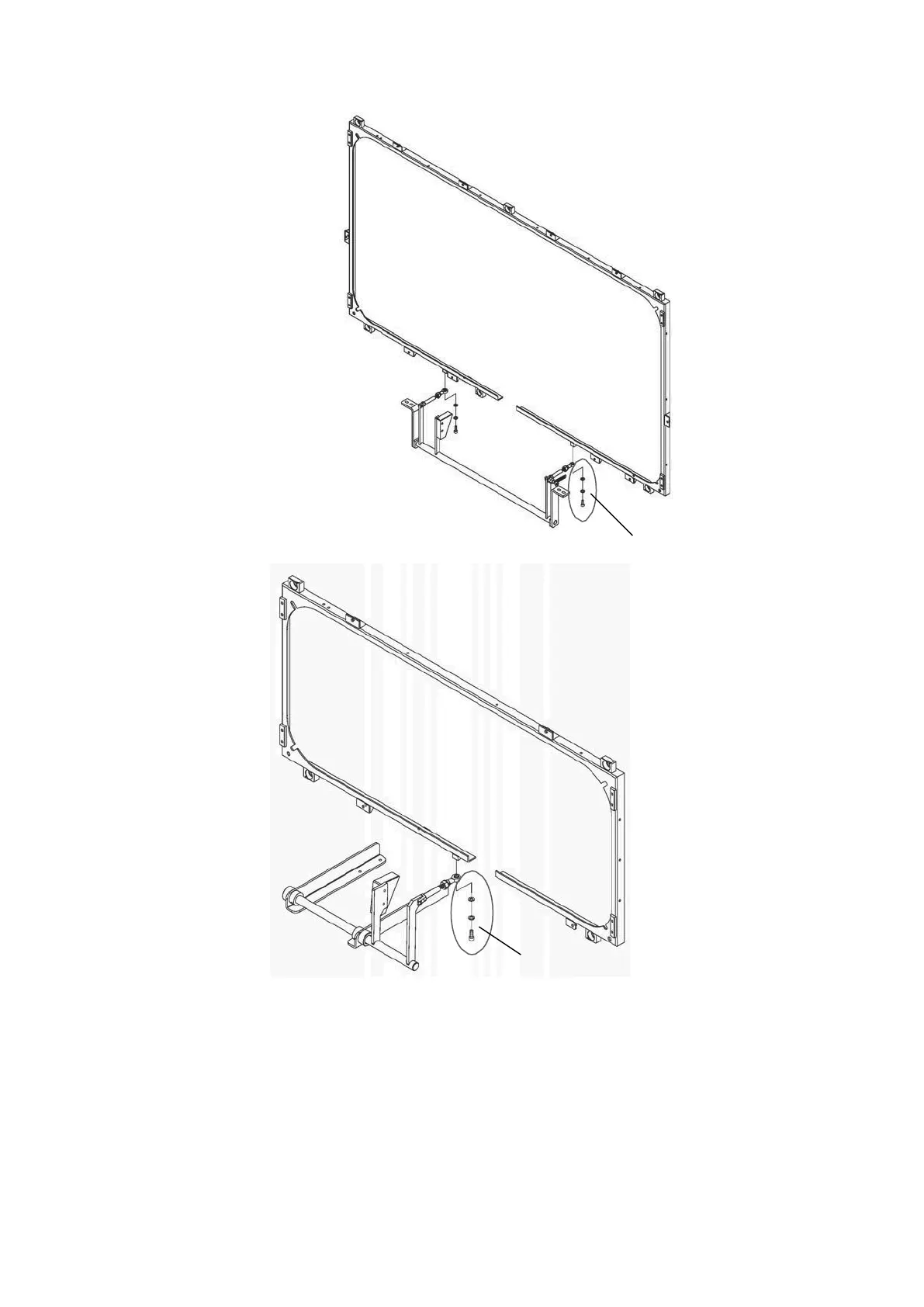

3. Adjust the table height by repositioning the screws underneath the machine
frame (refer to below drawing). After adjustments, be sure to tighten all the
fixing screws.
Caution!
Be sure to take out the wire for the proximity switch underneath the left side of
machine to avoid any damage before adjusting the table height.
Step 15
Fig. H
Item F
Fig. I
Item F
