Ceiling Exhaust and Inline Fans 5
®

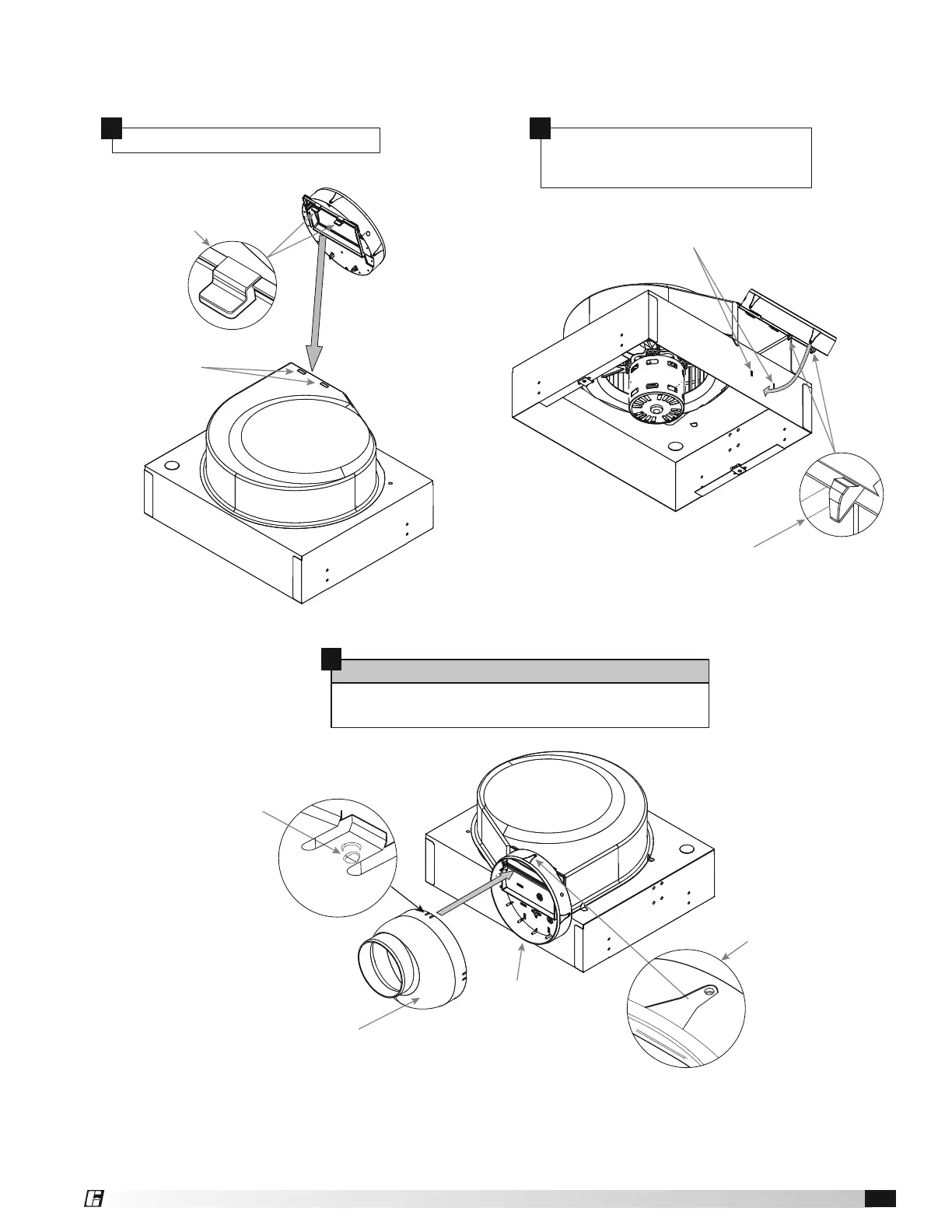

Discharge Installation for Ceiling and Inline Exhaust Models Sizes B50-200
Insert box scroll tab into box scroll slots.
Rotate plastic duct adapter (PN 474433)
until the two mounting tabs fully engage
into the two box mounting slots.
1 2
OPTIONAL
Align the pins on the TR 6x4 adaptor to the duct pin hole on
the 6-inch duct. Push until the adaptor snaps into place.
3
Box Mounting Tabs
Box Mounting Slots
TR 6x4 Pin
TR 6x4
(PN 473324)
6-inch
Plastic Duct
(PN 474433)
Plastic Duct Pin Hole
Box Scroll Tabs
Box Scroll Slots
To Next Page
