881 and 881CT Cam Track
®
Hydraulic Benders
Assembly and Operation Instructions
881 and 881CT with 1813 Bending Table (cont’d)

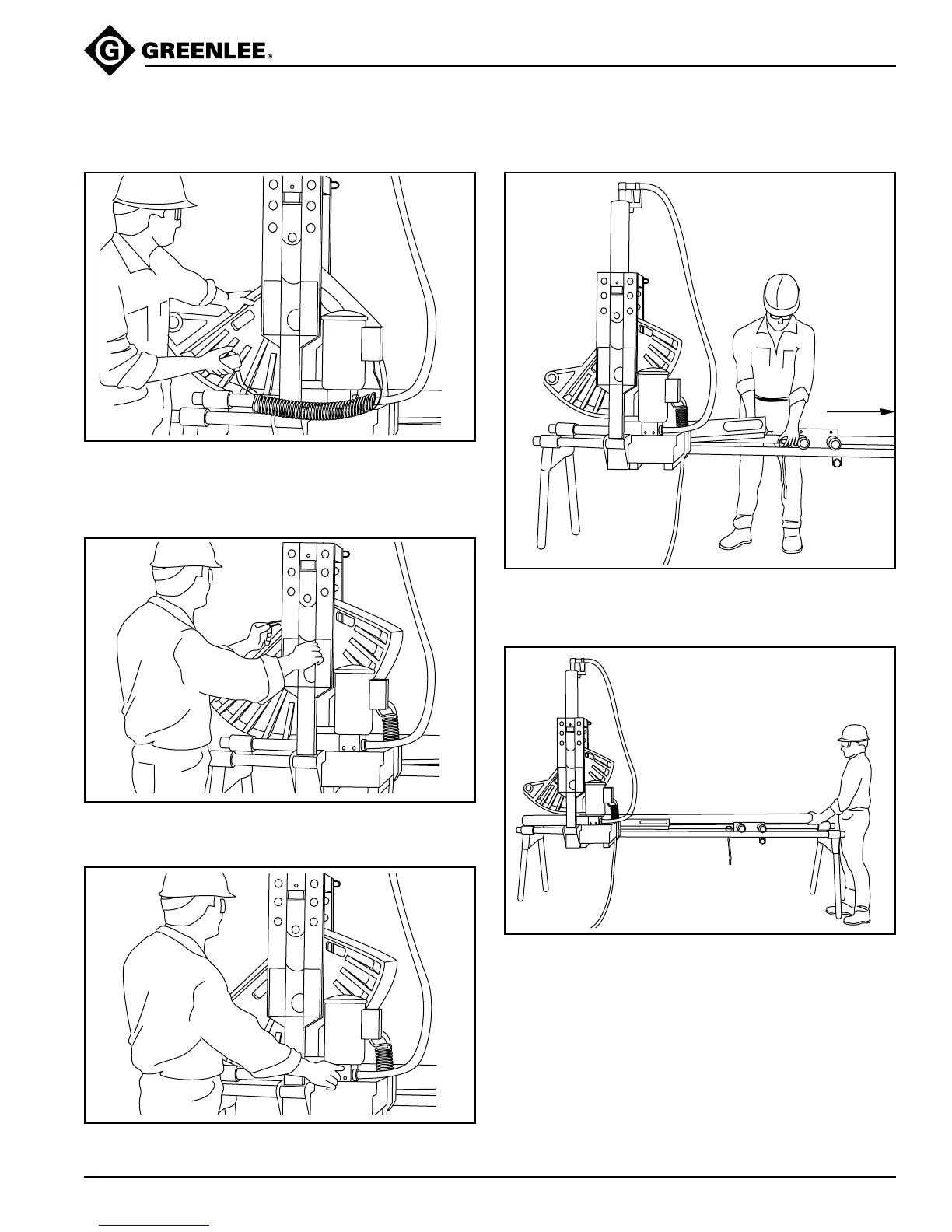

30. Rotate the pump control lever counterclockwise.
Activate the hydraulic pump to advance the shoe
until the yoke is aligned with the proper shoe yoke
pin hole (EMT or IMC/Rigid).
32. Rotate the pump control lever clockwise to retract
the ram.
31. Attach the yoke to the shoe with the yoke pin (G).
Secure the yoke pin with a hitch pin clip (E).
34. Insert the conduit to be bent. Rotate the pump
control
lever counterclockwise and advance the
shoe until it nearly contacts the conduit.
33. Remove the vise unit from its position below the
follow bar. Slide the vise unit to the far end of the
bending table.
To Next Page
