Greenlee 1813 - 881 And 881 CT-Floor Operation

Greenlee / A Textron Company 7 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
881 and 881CT Cam Track
®
Hydraulic Benders
Assembly and Operation Instructions

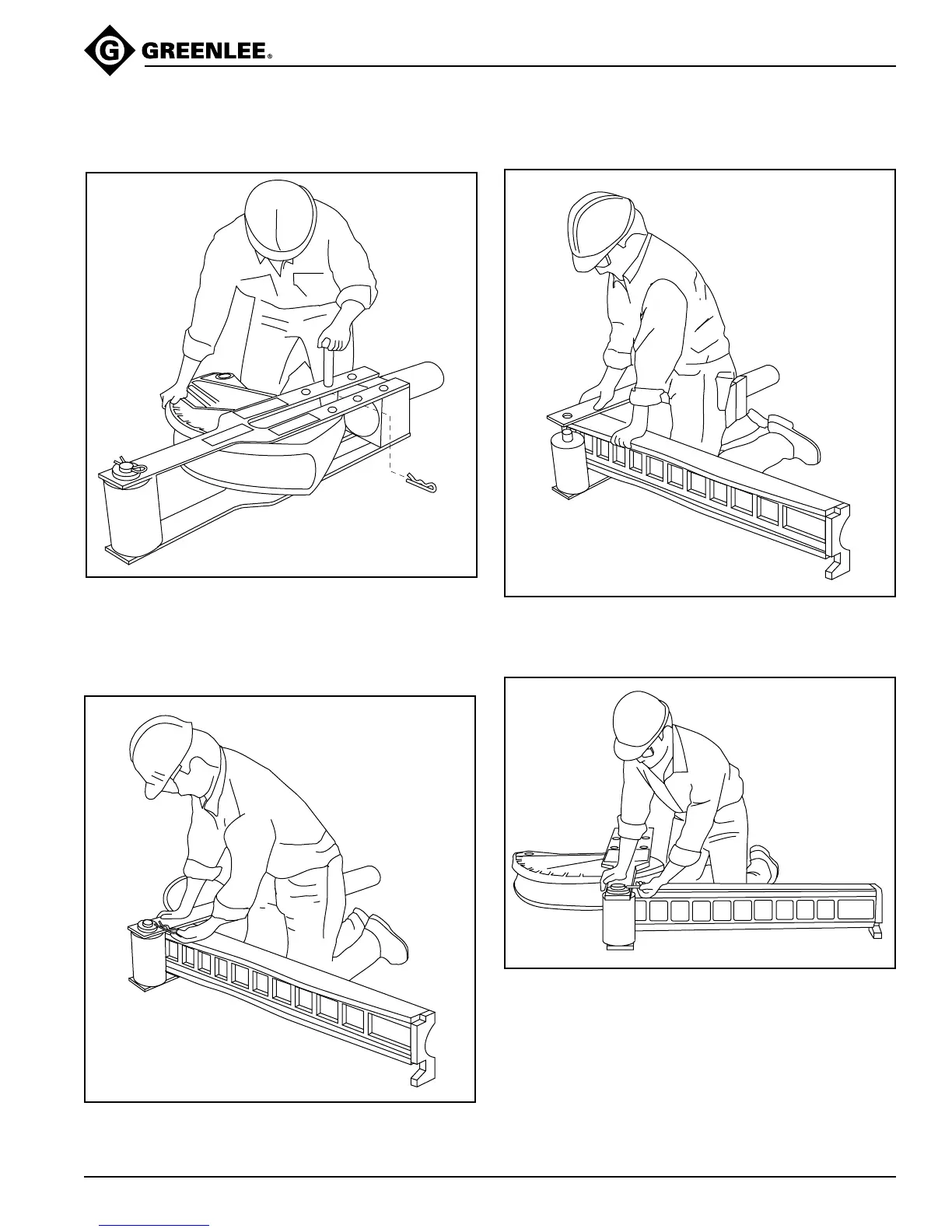

881 and 881CT—Floor Operation (cont’d)
6. Select the shoe for the size of conduit to be bent.
Insert the shoe with the shoe size marking facing up.
Align either the EMT or Rigid/IMC hole with the yoke
and insert the yoke pin (G). Secure the yoke pin with
a hitch pin clip (E).
7. Remove one hitch pin clip from the roller shaft.
8. Lift the connecting bar and insert the follow bar.
Note: Insert the end marked START.
9. Reinsert the hitch pin clip into the roller shaft.
