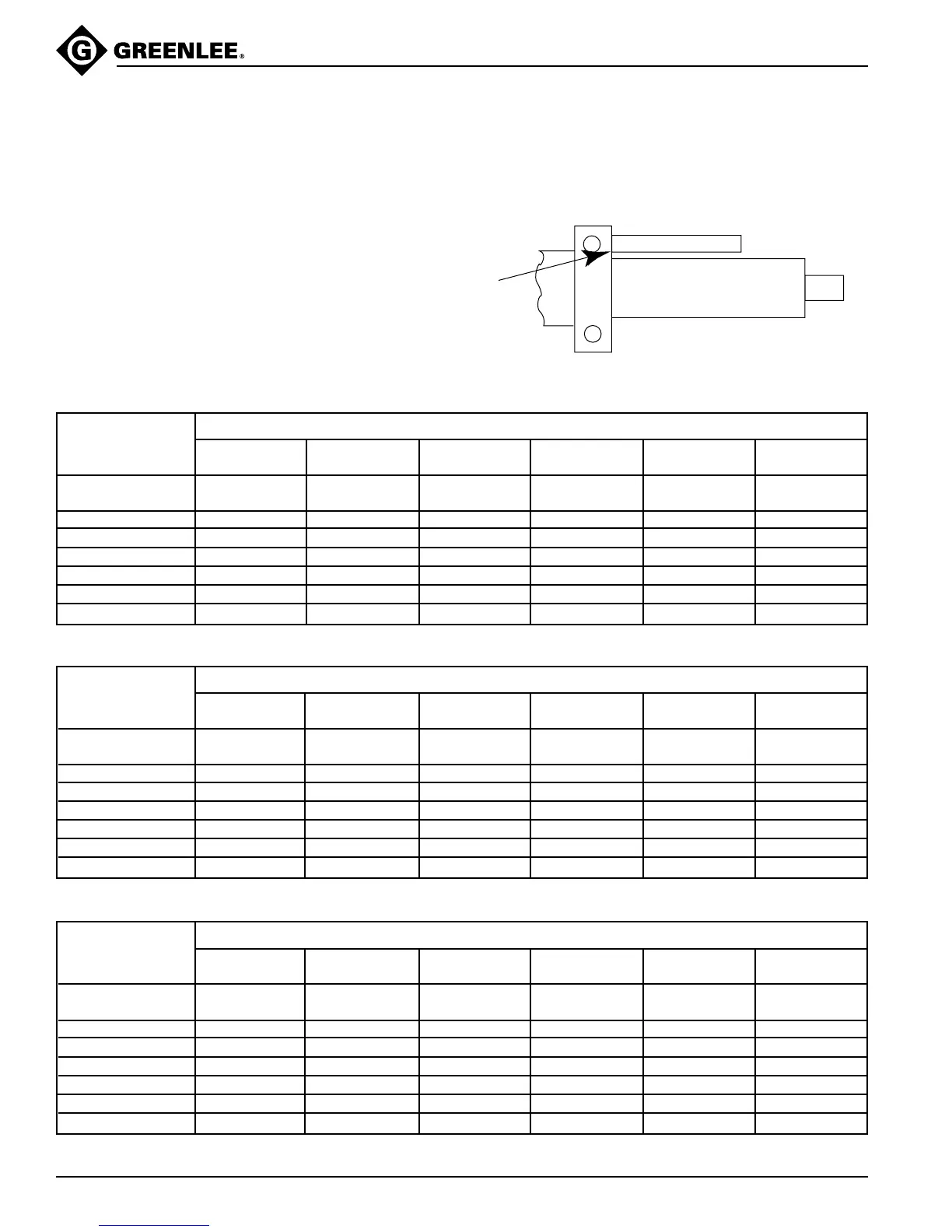

Greenlee 1813 - Table 3-Ram Travel

Greenlee / A Textron Company 24 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
881 and 881CT Cam Track
®
Hydraulic Benders
DEGREE RIGID
OF
BEND 2-1/2 (90°) 3 (90°) 3-1/2 (90°) 4 (90°) 3-1/2 (45°) 4 (45°)
SNUG-UP
0° 2-7/8 2-1/4 2 1-5/16 4-5/8 2-1/8
10° 3-15/16 3-5/8 3 2-3/8 6-3/8 4-1/16
15° 4-3/8 4-1/16 3-1/2 3 6-13/16 4-3/4
30° 5-3/4 5-3/8 4-7/8 4-1/2 8-1/2 6-1/2
45° 7-1/8 6-15/16 6-1/4 6-1/8 10-1/8 8-1/4
60° 8-1/2 8-7/16 7-3/4 7-3/4 See Table 4 See Table 4
90° 11 11-5/8 10-3/4 11 See Table 4 See Table 4
DEGREE IMC
OF
BEND 2-1/2 (90°) 3 (90°) 3-1/2 (90°) 4 (90°) 3-1/2 (45°) 4 (45°)
SNUG-UP
0° 2-7/8 2-1/4 2-1/16 1-7/16 5 2-3/8
10° 4 3-5/8 3-1/8 2-5/8 6-5/8 4-5/16
15° 4-7/16 4-1/16 3-9/16 3-1/4 7-1/8 4-15/16
30° 5-3/4 5-3/8 5-1/16 4-5/8 8-13/16 6-5/8
45° 7-3/16 6-15/16 6-7/16 6-1/4 10-1/4 8-1/2
60° 8-11/16 8-7/16 7-7/8 7-7/8 See Table 4 See Table 4
90° 11 11-5/8 10-7/8 11-1/8 See Table 4 See Table 4
DEGREE EMT
OF
BEND 2-1/2 (90°) 3 (90°) 3-1/2 (90°) 4 (90°) 3-1/2 (45°) 4 (45°)
SNUG-UP
0° 4-3/16 3-7/8 3-1/8 2-3/8 5 3-9/16
10° 5 4-15/16 4-1/8 3-1/4 6-5/8 5-1/8
15° 5-1/4 5-5/16 4-1/2 3-3/4 7-1/8 5-1/2
30° 6-3/16 6-5/16 5-1/2 4-13/16 8-13/16 6-3/8
45° 7-1/8 7-5/16 6-1/2 6 10-1/4 7-3/4
60° 8 8-3/8 7-1/2 7-1/4 See Table 4 See Table 4
90° 9-1/2 10-3/8 9-13/16 9-5/8 See Table 4 See Table 4
Table 3
Ram Travel
(Figures are approximate)
Ram Travel: Read Scale at Edge of Block
Note: Ram Scale Must be Set on Zero
Note: Calibrate Bender Before Bending: Snug up
bender by advancing ram until shoe, conduit and follow
bar are snug. (Do not squeeze or begin to bend.) Stop
pump. Compare reading on scale with appropriate Snug-
Up 0 ° column on ram travel charts. Note variance if any.
Incorporate this variance in ram travel measurements
used for bending the same size and type of conduit.
