Greenlee / A Textron Company 20 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
881 and 881CT Cam Track
®
Hydraulic Benders

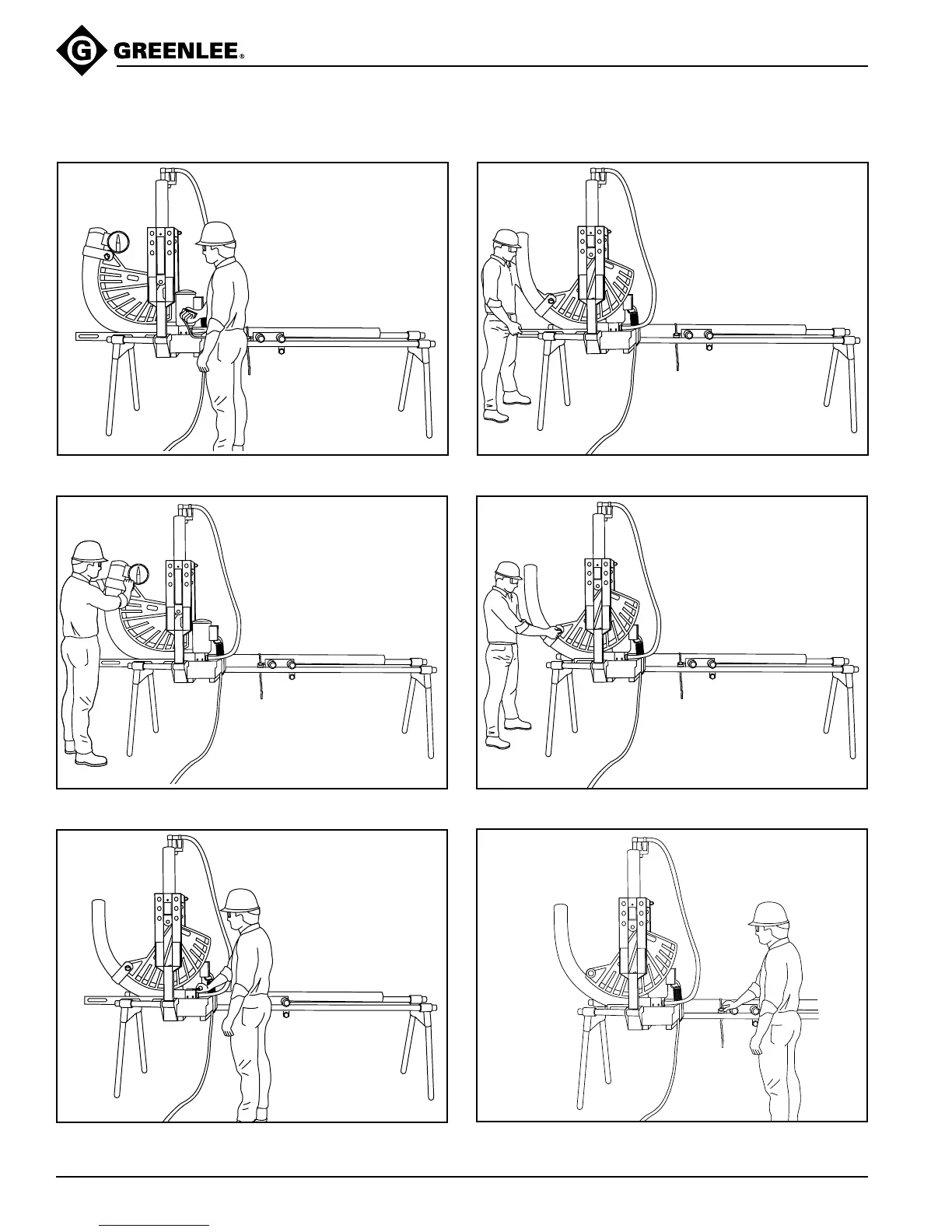

47. 90° of bend.
48. Remove the 1805 Bending Degree Indicator.
49. Rotate the pump control lever clockwise to retract
the shoe.
Assembly and Operation Instructions
881 and 881CT with 1813 Bending Table (cont’d)
50. Push the follow bar back to the start position.
51. Remove the saddle pin and saddle.
52. Release the vise chain.
