Quick Draw
®
Hydraulic Punch Drivers
Greenlee Textron / Subsidiary of Textron Inc. 7 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815/397-7070
Operation
1. Drill a pilot hole.
2. Turn the release valve knob counterclockwise to fully
extend the ram.
3. Assemble the appropriate die and draw stud
components. Insert into the pilot hole.
4. Thread the punch onto the draw stud until it is tight.
If the punch is not tight, the hole may not be
completed.
5. Close the release valve knob. Pump the lever handle
until the punch is completely through the material.
6. Open the release valve knob. Remove the punch.
Step-up Punching
The 1/2" conduit-size punch is often used to increase the
size of the pilot hole; this is called “step-up punching.”
After enlarging the pilot hole, the 3/4" draw stud is used
to punch the final hole.
Do not operate the pump lever after the ram motion
stops. Continuing to operate the pump lever after the
ram motion stops will damage the driver and could
propel internal parts with great force, striking nearby
personnel.

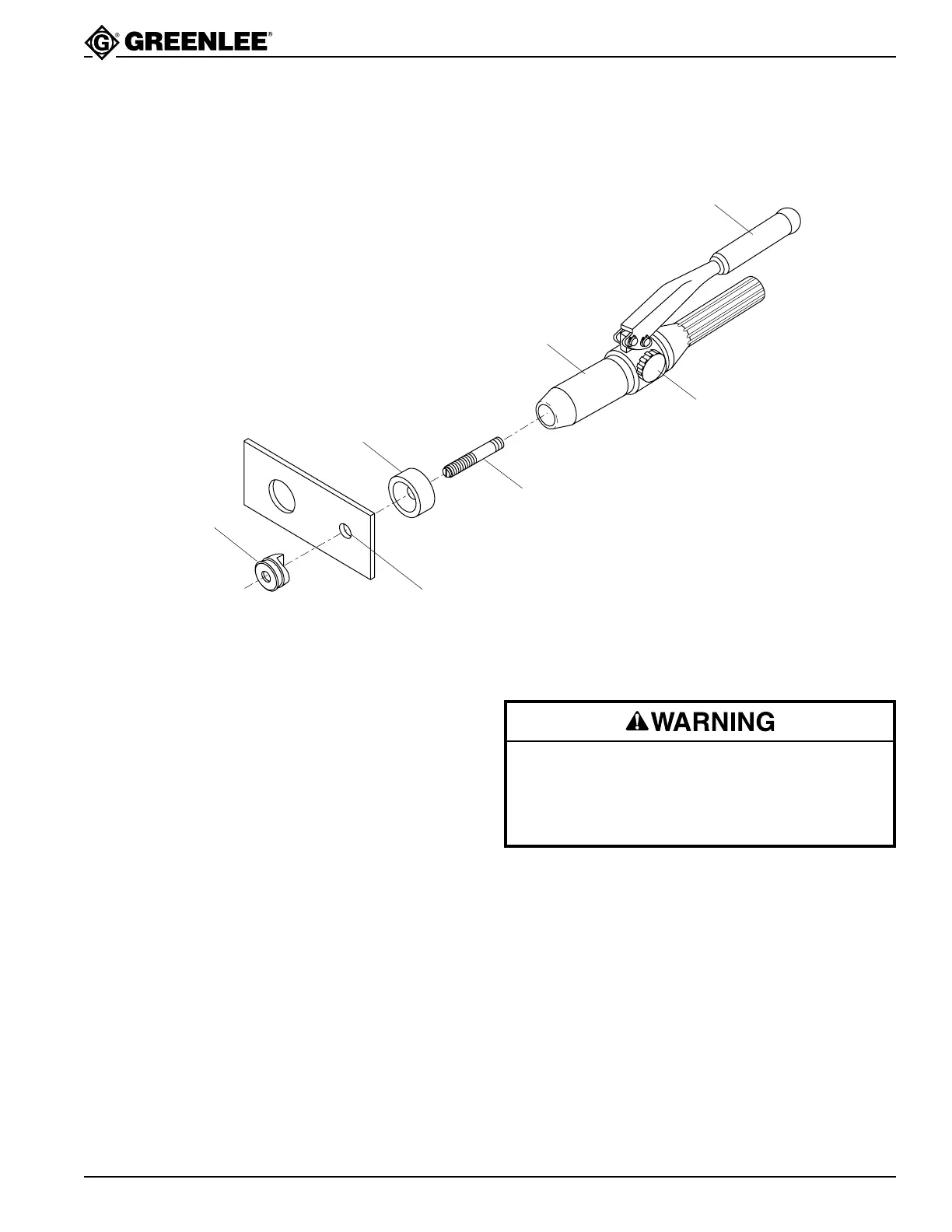

Punch
Die
Pilot Hole
Draw Stud
Quick Draw Punch Driver
(7804SB / 7806SB shown)
Release Valve Knob
Lever Handle
