5

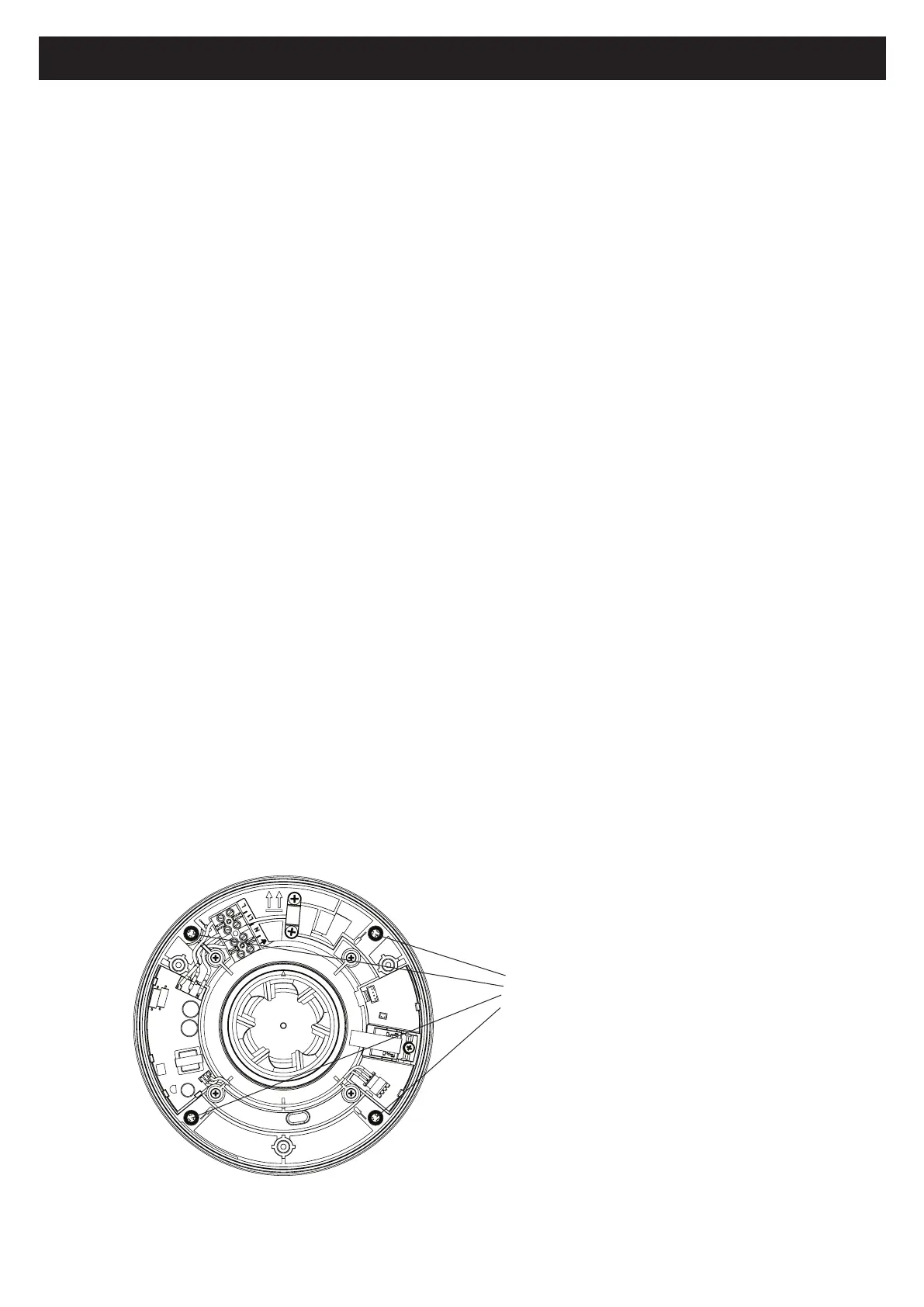

Figure 1: Back Plate Screw Fixtures
General Preparation
The Unity CV2GIP / CV2SVGIP fan is supplied with a 100mm nominal
spigot for connection of ducts for installation.
100mm diameter rigid duct should be used to provide the best
performance levels required for compliance with Building Regulations.
Technical Services can be contacted on +44 (0) 1276 408402 should you
have any questions in respect of this.
Installation of the unit should be in accordance with the current
editions of Building Regulations and BS7671: IEE Wiring
Regulations.
Electrical installation must only be carried out by a qualified
Electrician.
Positioning / Application
The unit can be installed on a wall or ceiling mounted and ducted.
The unit must be securely mounted using all four fixing holes provided
(see Figure 1).
2.1
2.1.1
2.1.2
2.1.3
2.1.4
2.2
2.2.1
2.2.2
2.0 Installation Instructions
Using No.8 screws provided,
ensure that all four fixing
points on the back plate are
securely fitted
