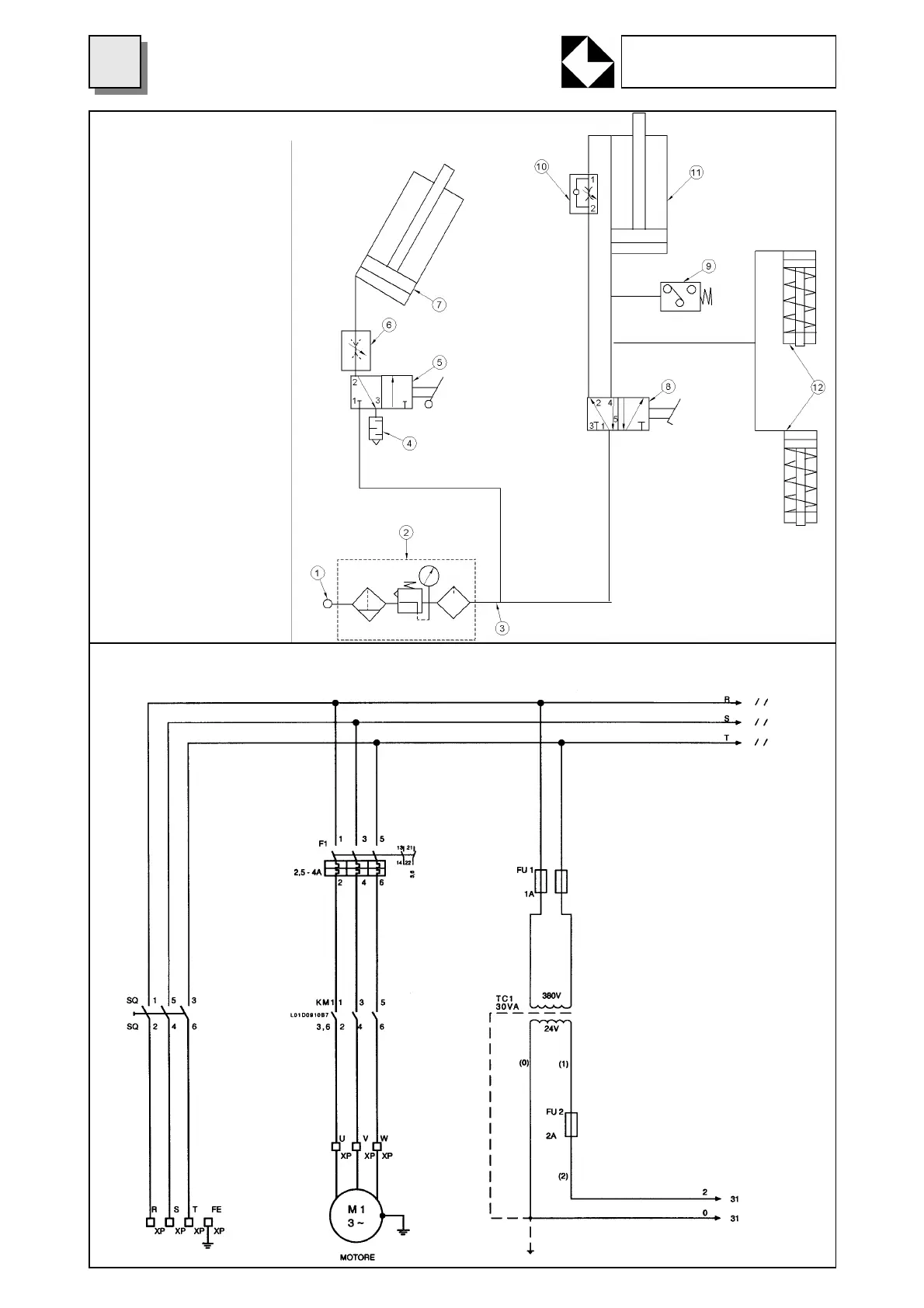

GRIGGIO GF 21 - 22 Pneumatic Scheme; Electrical Scheme for Gf21, Gf27 (with One Engine)

1) ¼” Male quick-change
2) G ¼” lubrication-filter-
regulator unit
3) ¼” Wye
4) Wire muffler
5) Overturning lever Ø 30
6) G ¼”Flux Reg.
7) Overturning cylinder
8) 5/2 Pedal G ¼”
9) 1/8“ Pressure switch
10) G ¼”Flux reg.
11) Drill feed speed
12) Clamping clamps
23A. ELECTRICAL SCHEME FOR GF21 AND GF27 (WITH ONE ENGINE)
22. PNEUMATIC SCHEME
GRIGGIO S.p.A.
WOODWORKING MACHINERY
24
