35
Specications are subject to change without prior notication December 2019
A ( 1 : 35 )
POS QTY PART NO DESCRIPTION
1 1 CGBDA004 3mm GAUGE BRACKET
2 3 FABDA016
SET SCREW 6 X 15
3 3 FABEA025 BOLT M 8 X 25
4 8 FABEA035 BOLT M 8 X 35
5 13 FABEA080
BOLT M 8 X80
6 3 FFBDA000 NYLOC NUT M6 P TYPE
7 11 FFBEA000 NYLOC NUT M8 P TYPE
8 2
FMCDE000 M6 WASHER 1/4"F436 HARD ZYP
9 22 FMCEE000 M8 WASHER 5/16"F436 HARD ZYP
10 4 GDFJA001 BRACKET 4 litre ACCUMULATOR
11 1 HGACA750 MICRO HOSE 5 - 2,2 (750)
12 1 HGCZA350A HOSE 3/8 DB (350) 3/4JIC FEMALE
3/4JIC FEMALE
13 1 HGCZA550A HOSE 3/8 DB (550) 3/4JIC FEMALE
3/4JIC FEMALE
POS QTY PART NO DESCRIPTION
14 2 HGCZB300A HYD HOSE 3/8" E26 (1300)
15 2
HGCZB400C HYD HOSE 3/8" E26 (1400) 3/4JIC
FEMALE 1/2"BSP FEMALE
16 2 HGCZC800Q HYD HOSE 3/8" E26 (2800) QR
1/2"BSP FEMALE 3/4UNO MALE
17 1 HGCZD600A HOSE 3/8 DB (3600) 3/4JIC FEMALE
3/4JIC FEMALE
18 1
HGCZD700A HYD HOSE 3/8" E26 (3700)
19 1 HGCZE000A HOSE 3/8 DB (4000) 3/4JIC FEMALE
3/4JIC FEMALE
20 1 HGCZE200A HYD HOSE 3/8" E26 (4200)
21 1 HGCZE600A HYD HOSE 3/8" E26 (4600)
22 5 HHAAAA77 TEE 3/4JICM 3/4JICM 3/4JICM
S19-121212
23 4 HHABAM07 ELBOW 3/4 JICM 3/4 UN ORING
MALE
24 1 HHACAA01 1/2" BSPP RETAINING RING 36B-08
25 1 HHACAA02 1/2" BSPP O RING ROD-BP08
26 1
HHACAA06 BULKHEAD 1/2" BSP
POS QTY PART NO DESCRIPTION
27 1 HHACAS07 TEST POINT ADAPTOR 3/4 JIC -
M16
28 1 HHACBF12 STRAIGHT 1/2BSPTM 3/4 JICF
SWIVEL (S71-0812)
29 2
HHAHSTA07 1 1/4 BSPPM 3/4BSPPF REDUCER
30 2 HHBCAM17 STRAIGHT 3/4BSPPORINM 3/4 JICM
31 1 HHBEM000 STRAIGHT 3/4 JIC M 1/2 BSPP
ORING M
32 1 HHBM2160 PRESSURE GAUGE 160 - 0 - 160
BAR 1/2" BSPP 4"
33 1 HHMWA008 INLINE RELIEF VALVE 1/2" BSP
34 1 HHZWUA07B HYD Coupling COVER BLUE
35 1 HHZWUA07R HYD Coupling COVER RED
36 17 HJBCA000 20mm DOUBLE HOSE CLAMP
SHELL
37 2 HPHAA000
4 LITRE ACCUMULATOR
38 2 HYP300/12 HYD.CYL.3" X 12" 1 1/2" ROD
A

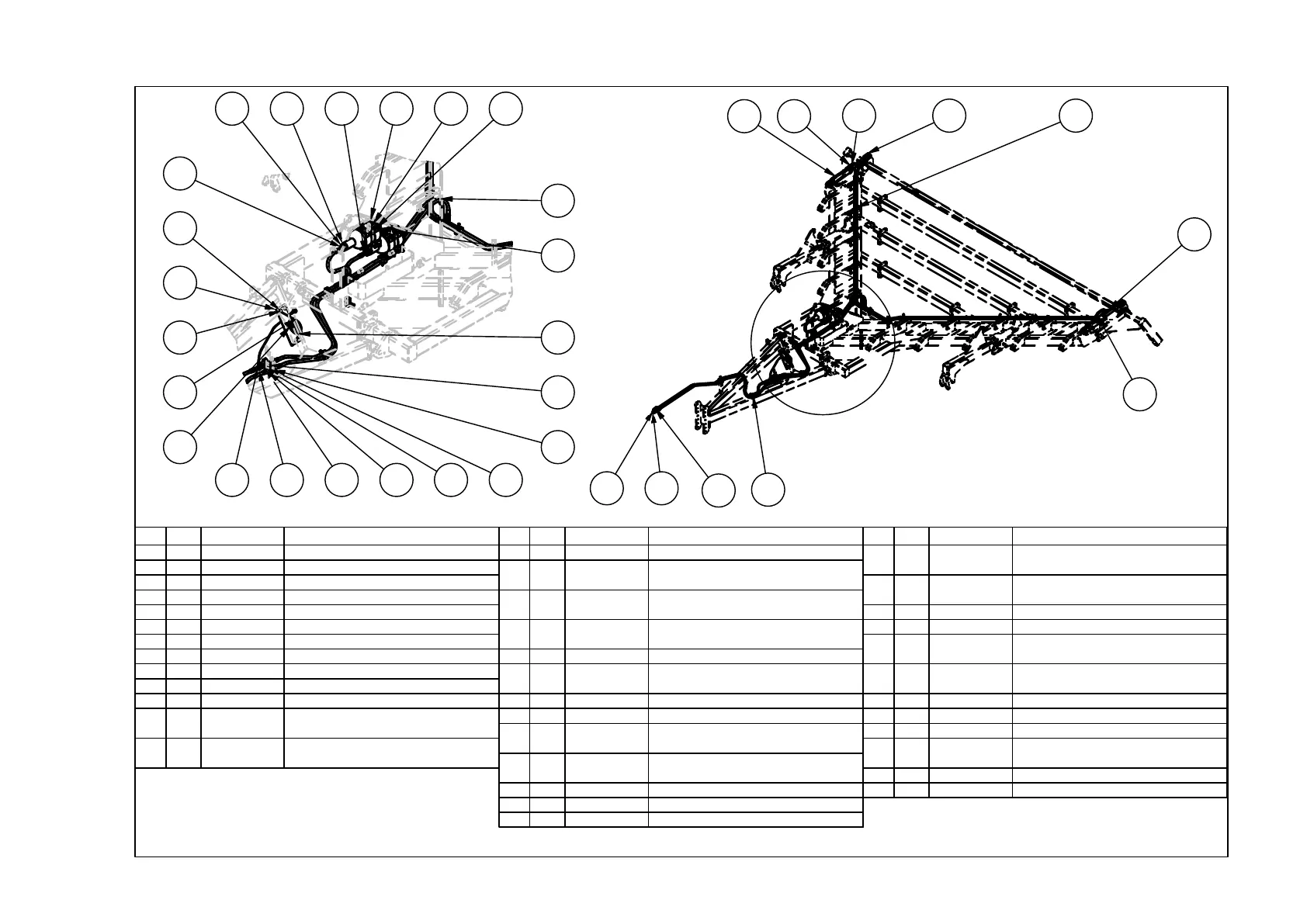

HYDRAULIC KIT (ROLLER) 11 CTF
L:\Inventor\Parts\GN-\GNBRN004.idw
3435
16
3818
2319
36
5
20
21
22
15
27 2833 31
11
26
14
1
9
3
2
32
10 37
6
4
7
2930
13
12
